General / Service Manuals
Owner's Manual for Ducati Panigale V2 Bayliss 1st Championship 20th Anniversary
Comprehensive owner's manual for the Ducati Panigale V2 Bayliss 1st Championship 20th Anniversary. Includes setup, riding instructions, maintenance, and technical specifications.
Quick answers from the manual
Quick answer
- This manual provides comprehensive instructions for operating and maintaining the Ducati Panigale V2 Bayliss 1st Championship 20th Anniversary, including safety guidelines, control functions, and technical specifications. p. 1, 2, 3
Key actions
- Starting the engine p. 71, 72
- Adjusting suspension p. 41, 43
First start
- Ensure side stand is up, gear in neutral, and emergency switch in RUN. p. 71, 72
Show 4 more answers Show less
Problems and fixes
Low battery
Use Ducati-approved lithium battery charger.
p. 36Maintenance and reset
- Service warning can only be reset by a Ducati Authorised Service Centre. p. 189
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Fuel tank capacity | 17 litres | Total capacity including 5L reserve. | p. 234 |
Where to find it in the PDF
- Warranty Information p. 11, 17
- Controls p. 49, 66
- Maintenance p. 198, 231
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for the operation and maintenance of the Ducati Panigale V2 Bayliss 1st Championship 20th Anniversary. Before riding, always perform the pre-ride checks to ensure the motorcycle is in safe operating condition.
Pre-ride checks
- Check fuel level in the tank.
- Check engine oil level through the sight glass.
- Check brake and clutch fluid levels.
- Check coolant level in the expansion reservoir.
- Check tyre condition and pressure.
- Verify proper operation of all controls (levers, pedals, throttle).
- Ensure all lights and indicators are functioning.
- Check that the side stand operates smoothly.
Engine start/stop
To start the engine, ensure the side stand is fully up and the gearbox is in neutral. Set the ignition switch to ON and the emergency start/stop switch to RUN. Press the start button. Do not rev the engine when cold.

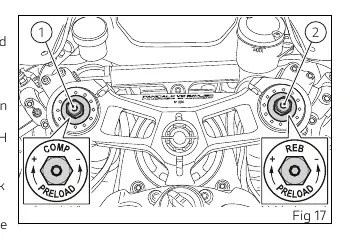

Suspension adjustment
The motorcycle features fully adjustable front and rear suspension. Adjustments for compression, rebound, and spring preload can be made using the external adjusters. Refer to the manual for standard and track-recommended settings.
Maintenance

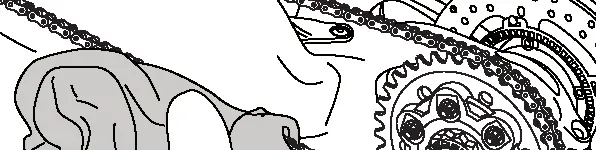

Regular maintenance is critical for safety and performance. Refer to the scheduled maintenance chart for intervals. Always use Ducati-approved parts and lubricants. For chain maintenance, clean and lubricate at least every 1000 km, or more frequently if riding in harsh conditions.
Technical data
The motorcycle is designed for road use. It features a 17-litre fuel tank and requires high-quality unleaded premium fuel (RON 95 minimum). Always adhere to weight limits to ensure proper handling.
Manufacturer information
Ducati Motor Holding S.p.A.
Practical help
Common problems
Engine won't start
Ensure the side stand is fully up, the gearbox is in neutral, and the emergency start/stop switch is in the RUN position.
Battery low
Use only a Ducati-approved battery charger/maintainer for lithium batteries.
Chain tension incorrect
Measure distance (A) between chain pin centres; contact a Ducati Dealer for adjustment.
Coolant level low
Check level between MIN and MAX marks on the expansion reservoir; top up if necessary.
Before use
- Check fuel level
- Check engine oil level
- Check brake and clutch fluid levels
- Check coolant level
- Check tyre condition and pressure
- Check controls (levers, pedals, throttle)
- Check lights and indicators
Show more Show less
Specs in practice
- Tyre Pressure (Road, rider only)
- 2.5 bar (36.26 psi) front and rear.
- Chain Tension
- 45-47 mm (standard).
Images and diagrams

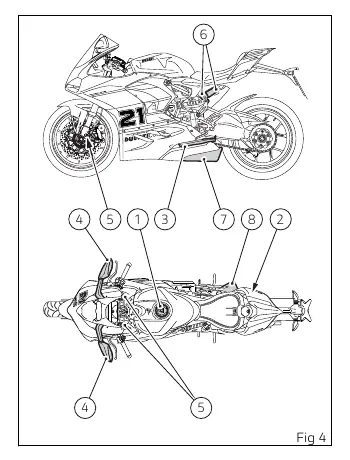

- Fig 4: Position of main components and devices.
- Fig 23: Position of motorcycle controls.

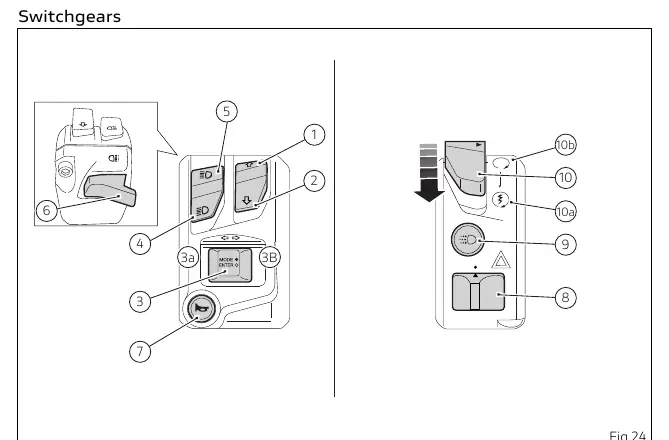

- Fig 24: Switchgear functions.
- Fig 178: Drive chain tension measurement.
Model compatibility
- Only compatible with fuel having a maximum ethanol content of 10% (E10).
- Use only Ducati-approved battery charger for lithium batteries.
- Use only SHELL Advance Chain lubricant.
