User Manual for Ecolab Hybrid ECO Cleaning System
Quick guide for the Ecolab Hybrid ECO cleaning system. Learn how to operate, rinse, foam, change detergents, and follow safety procedures.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ecolab Hybrid ECO is an industrial cleaning system designed for use by instructed personnel only. This guide covers the essential safety, operation, and maintenance procedures required to use the system effectively. Always ensure the water supply is connected before attempting to use the unit.
Safety Guidelines
Adherence to safety protocols is mandatory for the operation of the Hybrid ECO system:
- Only instructed personnel are permitted to operate the equipment.
- Always wear suitable protective clothing and footwear.
- Never direct the water jet towards people, animals, or electrical installations.
- Never block the release mechanism of the spray handle.
- Always activate the locking device on the spray handle when replacing nozzles.
- Follow all instructions provided by the detergent supplier.
- Use the water from the system exclusively for cleaning purposes.
Operation
The system supports different modes of operation, including rinsing and foaming. Ensure the unit is properly connected to the water supply before starting.
Start and Preparing
Ensure the water supply is connected to the unit. Follow the visual steps provided in the manual to prepare the system for use.
Rinsing and Foaming
The system allows for switching between rinsing and foaming modes. Use the appropriate settings on the spray handle to apply water or foam as required for your cleaning task.
Maintenance
Changing Cleaning Agent
To change the cleaning agent, follow the specific sequence outlined in the manual:
- Disconnect the current container.
- Insert the new container.
- Follow the procedure to prime the system, ensuring the new detergent is flowing correctly (indicated by the >20 sec. duration in the manual).

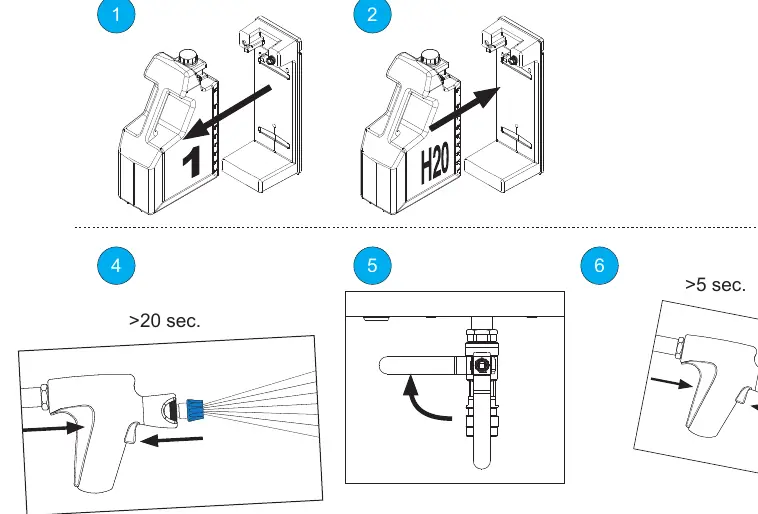

Stop Procedure
When finishing operations, follow the stop procedure to safely shut down the system and relieve pressure:
- Disconnect the detergent supply.
- Run the system to clear the lines (indicated by the >20 sec. duration).
- Shut off the water supply.
- Release remaining pressure from the spray handle (indicated by the >5 sec. duration).
Manufacturer information
Ecolab Inc.
Practical help
Common problems
Water jet not working
Ensure the water supply is connected to the unit.
Cannot change nozzle safely
Always activate the locking device on the spray handle before replacing nozzles.
Before use
- Ensure water is connected to the unit.
- Wear suitable protective clothing and footwear.
- Verify that the operator is instructed personnel.
- Check detergent supply levels.
Images and diagrams
- The manual uses the Atlantic 450 spray handle as an illustration for the Hybrid ECO system.
Model compatibility
- The system is designed for use with specific detergents; follow the supplier's instructions.
