Industrial / Cleaning Systems
User Guide for Ecolab 0617622A Professional Main Station
Quick guide for the Ecolab 0617622A Professional Main Station. Includes safety instructions, rinsing, foaming, changing cleaning agents, and disinfection procedures.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This guide provides essential operating instructions for the Ecolab Professional Main Station/Satellite. Always follow the specific instructions provided by your detergent supplier and ensure all operators are properly trained.
Safety Instructions
- The machine must only be operated by instructed personnel.
- Always wear suitable protective clothing and footwear.
- Never direct the water jet towards people, pets, or electric installations.
- Never block the release of the spray handle.
- Always activate the locking device on the spray handle when replacing nozzles.
- Only use water from the system for cleaning purposes.
- Follow all instructions provided by the detergent supplier.

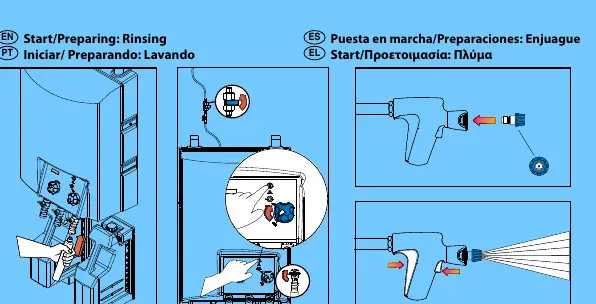

Rinsing and Foaming
The system supports both rinsing and foaming operations using the spray handle.
- Rinsing: Ensure the system is connected to the water supply. Use the spray handle to direct water as needed.
- Foaming: Connect the foaming agent to the system. Use the spray handle to apply foam to the desired surfaces.

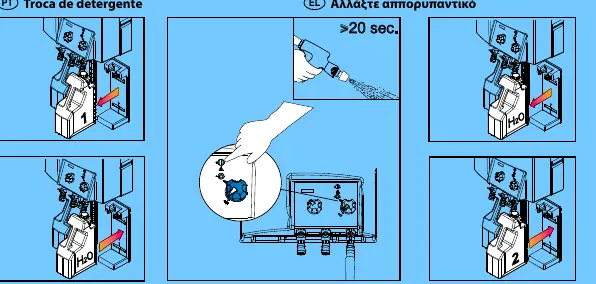

Changing Cleaning Agents
To change the cleaning agent:
- Remove the current cleaning agent container.
- Insert the new cleaning agent container.
- Flush the system for at least 20 seconds to ensure the new agent is primed and the lines are clear.

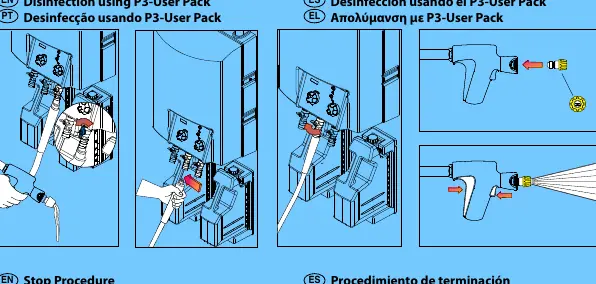

Disinfection
To perform disinfection using the P3-User Pack:
- Connect the P3-User Pack to the system.
- Ensure the connections are secure.
- Use the spray handle to apply the disinfectant solution.

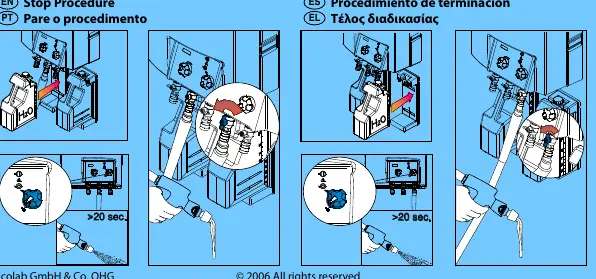

Stop Procedure
To safely stop the system:
- Remove the cleaning agent or P3-User Pack container.
- Flush the system for at least 20 seconds to remove residual chemicals from the lines.
Manufacturer information
Ecolab Inc.
Practical help
Common problems
Nozzle change safety
Always activate the locking device on the spray handle before replacing nozzles to prevent accidental discharge.
Cleaning agent residue
Flush the system for at least 20 seconds when changing agents or stopping the procedure to clear the lines.
Before use
- Ensure personnel are properly instructed.
- Wear suitable protective clothing and footwear.
- Check that the water supply is connected.
- Verify the correct cleaning agent or P3-User Pack is available.
Specs in practice
- P3-User Pack
- A specific cleaning or disinfection agent container designed for use with this system.
Images and diagrams
- The manual uses visual icons to show the flow of water and cleaning agents.
- Arrows indicate the direction of insertion for cleaning agent containers.
Model compatibility
- Only use water from the system for cleaning purposes.
- Follow instructions provided by the detergent supplier.
