FLEX CS 68 18-EC Cordless Circular Saw

Product Description

The FLEX CS 68 18-EC is a professional-grade cordless circular saw designed for industrial and trade applications. It is engineered for straight-line longitudinal and cross-cutting of wood. When paired with a suitable vacuum cleaner or dust extractor, it enables dust-free operation.

Technical Data

• Voltage: 18V DC
• No-load speed: Up to 5800 /min
• Blade diameter: 190 mm
• Arbor hole diameter: 20 mm
• Cutting depth at 90°: 68 mm
• Cutting depth at 45°: 50.2 mm
• Cutting depth at 56°: 39 mm
• Weight (without battery): 4.3 kg

Safety Instructions

WARNING: Read all safety instructions and warnings. Failure to follow them may result in electric shock, fire, or serious injury. Always keep hands away from the cutting area and the blade. Never reach underneath the workpiece. Always support large panels to minimize the risk of blade pinching and kickback.

Operation

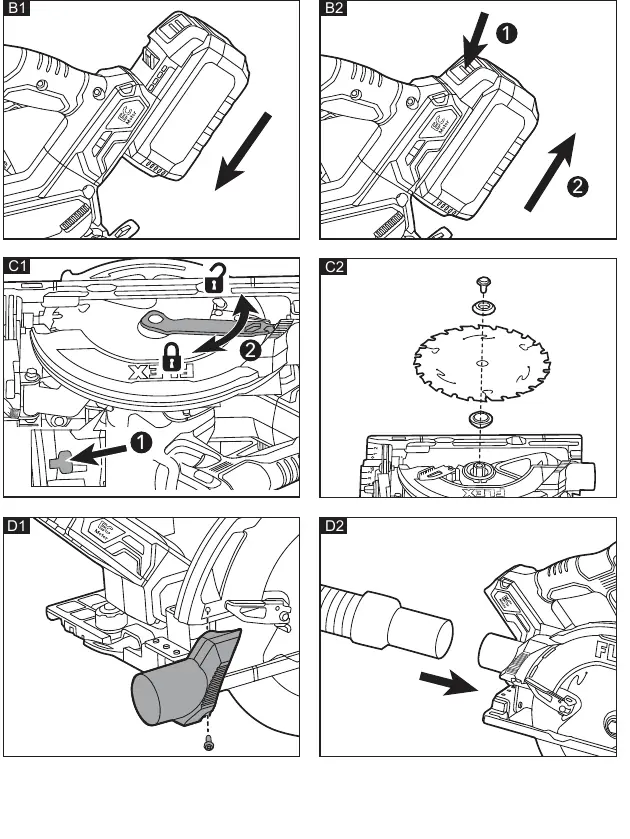

Before use, ensure the battery is fully charged. To install the blade, use the provided wrench to secure the blade stud, ensuring the teeth and arrow on the blade point in the same direction as the arrow on the lower guard. Adjust the cutting depth and angle using the respective levers and knobs before starting the saw. Always hold the saw firmly with both hands using the main and auxiliary handles.

Maintenance and Care

Regularly clean the power tool and ventilation slots using dry compressed air. Repairs must only be performed by an authorized customer service center. Always remove the battery pack before performing any maintenance work.

Disposal

Do not dispose of power tools or batteries in household waste. In accordance with EU directives, used tools and batteries must be collected separately and recycled in an environmentally friendly manner.
