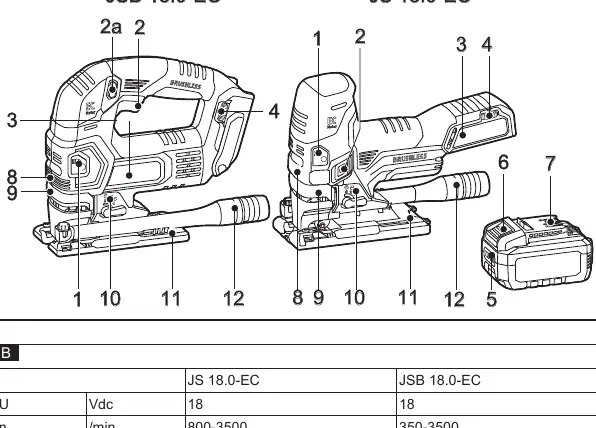

FLEX JS 18.0-EC / JSB 18.0-EC Cordless Jigsaw

Product Overview

The FLEX JS 18.0-EC and JSB 18.0-EC are professional-grade cordless jigsaws designed for commercial use in industry and trade. They are engineered for precision cutting of various materials, including metal, plastic, wood, tiles, and ceramics, allowing for both straight and curved cuts.

Technical Specifications

• Voltage: 18 Vdc
• Stroke Rate: 800-3500 /min (JS 18.0-EC), 350-3500 /min (JSB 18.0-EC)
• Weight: 2.1 kg (JS 18.0-EC), 2.2 kg (JSB 18.0-EC)
• Battery Options: AP18.0 (2.5Ah or 5.0Ah)

Safety Information

WARNING: Always remove the battery before performing any adjustments, maintenance, or assembly on the tool. Wear appropriate personal protective equipment, including safety goggles and ear protection if sound pressure exceeds 85 dB(A). Hold the tool by insulated gripping surfaces when cutting near hidden wiring.

Operation

Battery Installation: Slide the charged battery into the tool until it clicks into place. To remove, press the release button and pull the battery out.

Blade Installation: Insert the T-shank blade into the tool-less blade change handle until it stops. Ensure the back of the blade rests in the guide roller groove. Pull the blade to verify it is securely locked.

Speed and Orbital Control: Use the speed control dial to adjust the cutting speed (1-5, plus 'A' for automatic no-load speed reduction). The orbital action can be adjusted using the control lever (0-3) to optimize cutting speed and pattern based on the material.

Maintenance and Care

Regularly clean the tool and the grille in front of the vent slots. Periodically blow out the housing interior and motor with dry compressed air to ensure optimal performance. Always remove the battery before cleaning.

Disposal

Do not dispose of power tools or batteries in household waste. In accordance with EU directives, these must be collected separately and recycled in an environmentally friendly manner.
