Accessory Kit for Fluke 1550C Insulation Resistance Tester

Inventory and Component Guide

This document serves as the official parts list and inventory guide for the Fluke 1550C Accessory Kit (FLUK-1550C-ACCY01). Use this guide to verify that all necessary components, cables, and documentation are present upon receiving the kit.

Test Leads and Clips

The kit includes a complete set of test leads and clips required for insulation resistance testing. Ensure all items are accounted for:

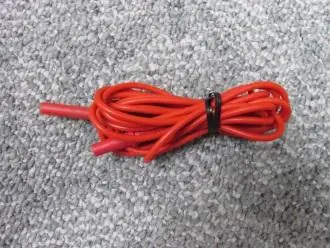

• Test Leads: Red, Black, and Green leads are included for standard testing configurations.
• Test Clips: Red, Black, and Green clips are provided to ensure secure connections to the device under test.
• Lantern Tip Probes: A set of Red and Black lantern tip test probes (PN: TP74) is included for specific measurement applications.

Cables and Software

To facilitate data transfer and software integration, the following items are included:

• Optical to USB Cable Assembly: Rev. II cable for connecting the tester to a computer.
• FlukeView Forms Basic: Version 3.6 software on CD for documenting and analyzing test results.
• Software Upgrade: FlukeView Forms software upgrade component.

Documentation

The kit contains essential manuals and guides to assist with the setup and operation of the Fluke 1550C:

• User Manual for FLUK-1550C.
• Quick Reference Guide for FLUK-1550C.
• Installation Guide for FlukeView Forms.
• Installation Guide for USB-IR/RS232 Cable.
• Fluke 1550C/1555 Product Manuals on CD.

Storage and Protection

To keep your equipment organized and protected, the kit includes:

• Accessory Pouch: For storing leads, clips, and cables.
• Carrying Case: A durable case designed to house the tester and its accessories.
