Gardena PowerJet 18V P4A Battery-Powered Leaf Blower User Manual
Quick guide for the Gardena PowerJet 18V P4A leaf blower. Includes assembly, operation, maintenance, troubleshooting, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for the safe and efficient operation of the Gardena PowerJet 18V P4A leaf blower. Always read the full safety instructions before use. The product is intended for blowing dirt and grass clippings from paths, driveways, and courtyards.
Safety
Important: Read the operator's manual carefully before use. Always wear eye and ear protection. Keep bystanders away. Do not use the product in enclosed rooms or to blow flour, sand, or wood dust. Remove the battery before cleaning or maintenance.
Assembly
To assemble the blower tube, push the tube onto the outlet until it stops, then turn it clockwise until it locks (bayonet lock). For blowing in corners, the nozzle can be attached to the end of the tube until it engages.
Operation
Charging the battery: Connect the charger to a mains socket and slide the charger onto the battery. A flashing green light indicates charging; a permanent green light indicates the battery is fully charged.
Starting and stopping: Insert the battery into the holder until it clicks. Pull the start lever to begin operation. Release the lever to stop the blower.
Adjusting airflow: Use the power wheel to adjust the airflow in 7 steps, ranging from low (for light leaves on pebbles) to high (for large, wet leaves).
Maintenance
Keep airflow slots clean using a soft brush. Do not use water or high-pressure jets to clean the blower. Clean battery contacts and plastic parts with a soft, dry cloth.
Storage
Store the blower, battery, and charger in a dry, enclosed, and frost-free place, out of reach of children.
Troubleshooting
If the blower vibrates abnormally, contact Gardena Service. If the blower does not start, check if the battery is empty, if the battery temperature is out of range (0°C to +45°C), or if the motor is blocked.
Technical Data
The blower features a flow rate of 7.9 m³/min and a maximum blow speed of 100 km/h. It weighs 1.8 kg without the battery.
Manufacturer information
GARDENA
Practical help
Common problems
Blower vibrates abnormally
Contact Gardena Service.
Blower does not start (LED flashes green)
Battery is empty; charge the battery.
Blower does not start (Error LED red)
Battery temperature is out of range (0°C to +45°C) or there is moisture on the contacts.
Charging not possible (LED constant green)
Battery not connected correctly or dirty contacts.
Before use
- Charge the battery fully
- Check for debris in the intake
- Wear eye and ear protection
- Ensure the blower tube is locked in place
Specs in practice
- Max blow speed
- 100 km/h
Images and diagrams
- A1: Tube assembly

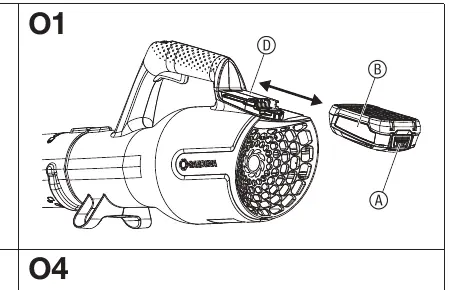

- O1/O2/O3: Battery charging
- O4/O6: Battery status indicator

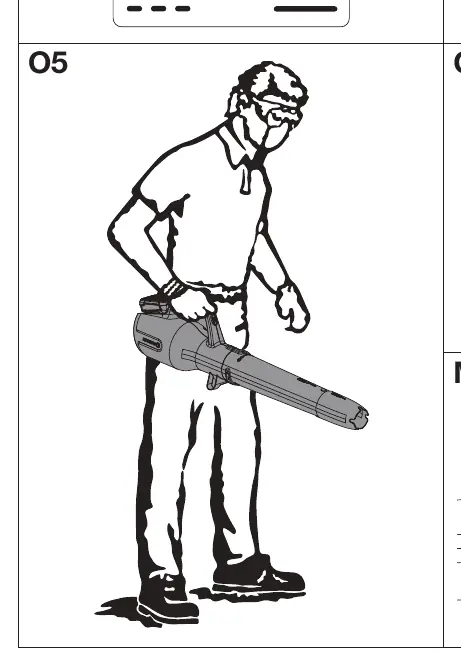

- O5: Work position
- O6: Airflow adjustment
Model compatibility
- Compatible with POWER FOR ALL 18V batteries
