Global Industrial 1/2HP Air Mover 641763
Quick guide for the Global Industrial 1/2HP Air Mover (641763). Includes safety instructions, operating procedures, maintenance tips, and troubleshooting steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

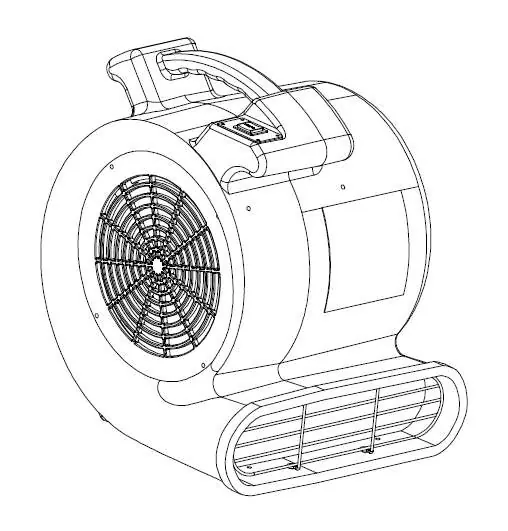

The Global Industrial 1/2HP Air Mover (Model 641763) is designed for efficient air circulation. Before use, ensure the unit is placed on a stable, level surface and connected to a properly grounded electrical outlet. Always verify that the air intake and outlet are free of obstructions to prevent overheating.
Safety Instructions
- Do not operate the unit with a damaged cord or plug.
- Keep the unit away from children.
- Do not move or adjust the blower while it is in operation.
- Never operate the unit without the factory-installed safety screens.
- Do not use the blower near combustible gases or flammable materials.
- Do not allow water near or inside the unit to avoid electric shock.
- Do not attempt to disassemble or repair the unit yourself; contact a certified repair center.
Operating Procedures
- Place the unit on a stable, level surface.
- Plug the blower into a grounded outlet that matches the unit's voltage and amperage specifications. Using a GFCI-protected circuit is recommended.
- Set the dial to the desired speed before turning the unit on.
Maintenance
- Inspect the electrical cord and wiring for damage or discoloration before each use.
- Check for loose fasteners regularly.
- Clean the safety screens before each use.
- Use compressed air or a vacuum to remove lint and debris from the motor, inlet, and fan blade.
- Do not use water hoses or pressure washers to clean the unit.
- The unit features sealed bearings and does not require oiling.
Troubleshooting
If the blower does not turn on, ensure the switch is in the correct position, check if the circuit breaker or GFCI has tripped, and inspect the cord for damage. If the blower vibrates, check for excessive dirt on the fan blade or a bent shaft. If the unit starts and then turns off, remove any obstructions from the inlet or outlet.
Technical Specifications
- Model: 641763
- Power Input: 115V/60Hz
- Power: 1/2hp
- Current: 5.0A (Max)
- Motor Speed: 1100rpm
- Air Volume: 2200cfm
- Dimensions: 18.5 x 16.1 x 15.4 inches
- Weight: 26.4 lbs
Practical help
Common problems
Blower does not turn on
Ensure the switch is in the correct position, check if the circuit breaker or GFCI has tripped, and inspect the cord for damage.
Blower vibrates
Clean excessive dirt from the fan blade, or check for a bent fan blade or motor shaft.
Blower starts and then turns off
Remove any obstructions from the inlet or outlet.
Before use
- Inspect the electrical cord and plug for damage.
- Ensure the unit is on a stable, level surface.
- Verify the outlet is grounded and matches voltage/amperage.
- Check that air intake and outlet are free of obstructions.
- Ensure safety screens are in place.
Specs in practice
- Power Input: 115V/60Hz
- Standard North American electrical supply.
- Air Volume: 2200cfm
- Cubic feet per minute; indicates the airflow capacity.
- Current: 5.0A (Max)
- Maximum electrical current draw.
Images and diagrams
- Switch Knob: Located on the unit, used to select speed settings.
Model compatibility
- Requires a grounded outlet.
- Use of a GFCI-protected circuit is recommended for maximum safety.
