User Manual for Graco Duet Sway 2-in-1 Baby Swing and Portable Rocker
Quick guide and user manual for the Graco Duet Sway 2-in-1 Baby Swing and Portable Rocker. Includes assembly instructions, safety warnings, operating modes, and maintenance tips.
Quick answers from the manual
Quick answer
- The Graco Duet Sway is a 2-in-1 baby swing and portable rocker. It supports up to 25 lbs in swing mode and 18 lbs in rocker mode. Always use the harness and never leave the child unattended. p. 1, 3, 4, 17
Key actions
- Assemble the seat, toybar, and frame according to the manual. p. 18, 22, 23
First start
- Plug in the AC adapter or insert a 1-D battery for vibration. Rotate the speed dial to start the swing. p. 33, 35
Problems and fixes
Swing won't operate
Check speed setting, remove obstacles, check weight limit (25 lbs), power cycle.
p. 36Maintenance and reset
- Clean frame with soap and water. Check for loose screws periodically. p. 39
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Swing Weight Limit | 25 lbs (11.3 kg) | Maximum weight for swing mode | p. 17 |
| Rocker Weight Limit | 18 lbs (8.2 kg) | Maximum weight for rocker mode | p. 17 |
Where to find it in the PDF
- Assembly p. 18, 25
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Graco Duet Sway is a 2-in-1 baby swing and portable rocker. Safety is paramount: Always use the restraint system and adjust it to fit snugly. Never leave the child unattended. Stop using the product if the child attempts to climb out, reaches 25 lbs (11.3 kg) in swing mode, or 18 lbs (8.2 kg) in rocker mode, or reaches 30 inches (76.2 cm) in height. Do not use the product near water or on soft surfaces like beds or sofas.
Assembly
The product requires adult assembly. Ensure all parts are present before starting. Follow the specific steps for:

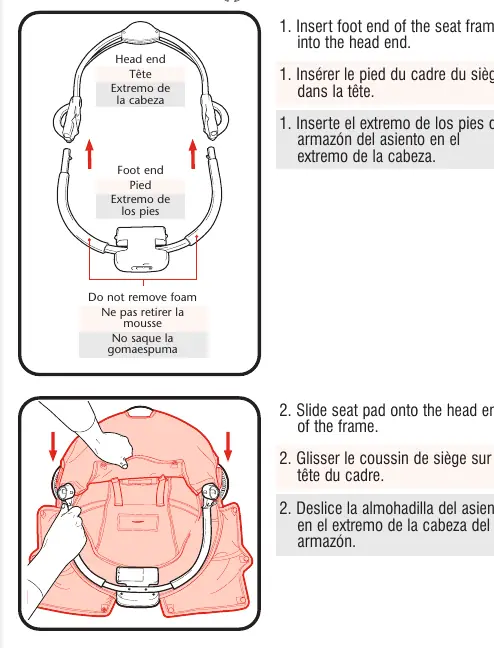

- Seat Assembly: Inserting the foot end into the head end, sliding the seat pad on, and securing with Velcro and snaps.

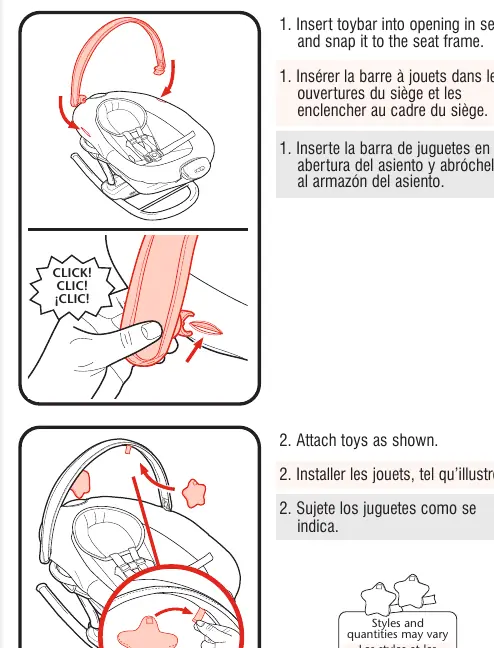

- Toybar Assembly: Inserting the toybar into the seat openings until it clicks.

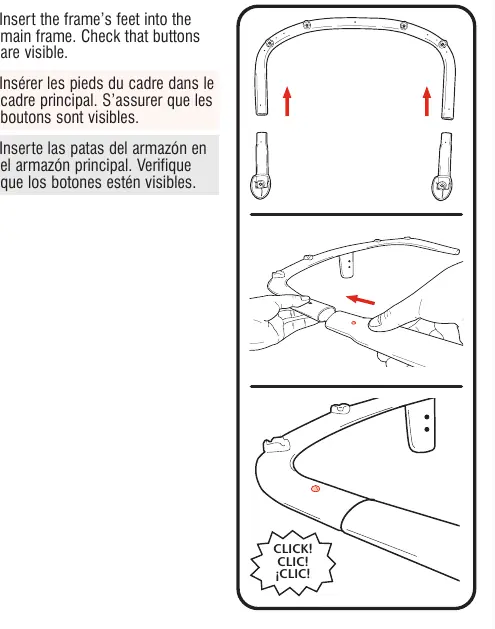

- Swing Frame Assembly: Inserting the frame feet into the main frame, attaching the motor housing, and securing with nuts and bolts.
Operating instructions
The product features two main modes: Swing Mode and Rocker Mode.
- Attaching/Removing Rocker: The rocker can be placed on the swing frame in three directions (front, left, right). To remove, step on the swing frame, tilt the rocker towards the motor housing, and lift.

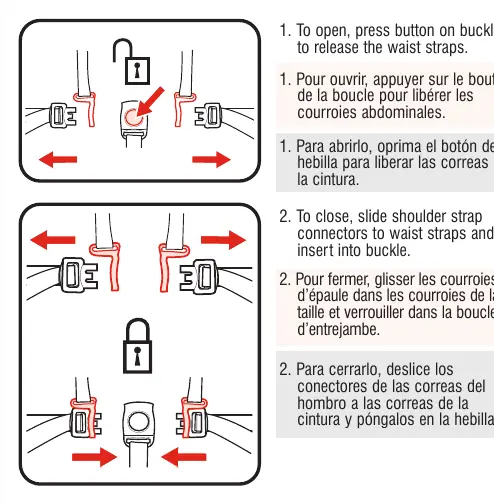

- Securing the Child: Always use the harness. Press the buckle button to open, and slide shoulder strap connectors into the waist straps to close.

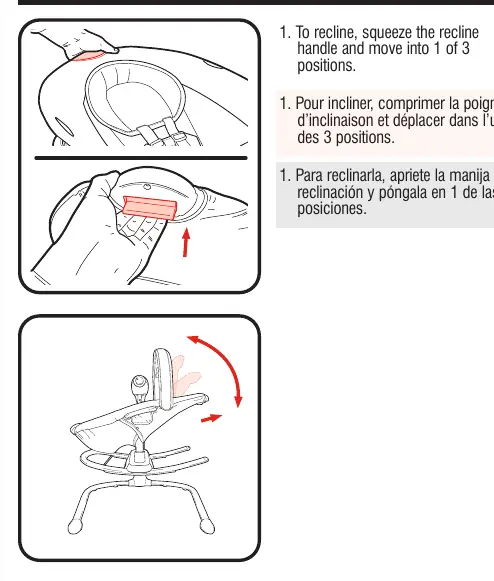

- Reclining: Squeeze the recline handle to adjust between 3 positions.
- Swing Operation: Rotate the speed dial clockwise to turn on and set speed. Push the swing lightly to start.
- Vibration: Requires 1-D (LR20-1.5V) battery. Remove the battery lid under the seat to install.
Care and maintenance
Periodically check for loose screws, worn parts, or torn material. Clean the seat cover according to the care tag. Clean the frame using only household soap and warm water. Do not use bleach or detergents.
Manufacturer information
Graco Inc.
Practical help
Common problems
Swing won't operate
Check if the speed setting is too low, ensure there are no obstacles blocking the swing, verify the load is under 25 lbs, and try turning the swing off and back on.
Seat doesn't swing fast
Check speed setting, ensure no blankets are hanging down causing wind resistance, and ensure the swing is on a hard floor rather than soft carpet.
Before use
- Verify all parts are present before assembly
- Ensure the child is under 25 lbs for swing mode
- Ensure the child is under 18 lbs for rocker mode
- Check that the harness is buckled and adjusted snugly
- Ensure the AC adapter or battery is correctly installed
Specs in practice
- Swing Mode Weight Limit
- Maximum 25 lbs (11.3 kg)
- Rocker Mode Weight Limit
- Maximum 18 lbs (8.2 kg)
- Vibration Battery
- Requires 1-D (LR20-1.5V) alkaline battery
Images and diagrams
- Assembly steps for seat, toybar, and frame
- Harness buckle operation
- Recline handle operation
Model compatibility
- Do not use with extension cords
- Use only the provided power cord
