User Manual for Bright Starts 16906-MEES Portable Swing

Important Safety Information

Read all instructions before assembly and use. Failure to follow these warnings can result in serious injury or death.

• Fall and Strangulation Hazard: Always use the restraint system and adjust it to fit snugly. Stop using the product when the infant attempts to climb out (approximately 9 months).
• Weight Limits: Do not use if the child weighs less than 3kg (6 lbs) or more than 9kg (20 lbs).
• Suffocation Hazard: Never use on soft surfaces like beds, sofas, or cushions. Always place the product on the floor. Never use on elevated surfaces.
• Sleep Safety: This product is not a substitute for a cot or crib. If the baby falls asleep, move them to a firm, flat sleep surface immediately.
• Supervision: Never leave the child unattended.

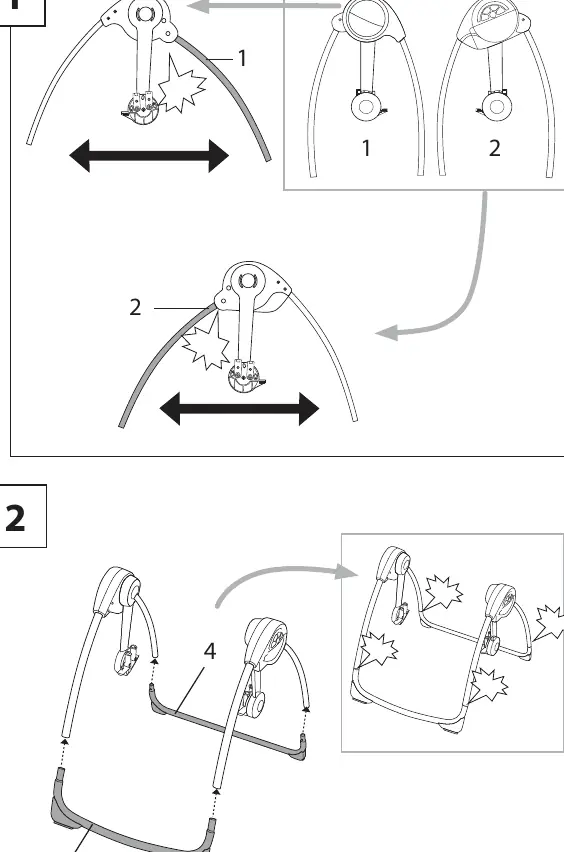

Assembly Instructions

Adult assembly is required. Ensure all parts are present before beginning.

1. Connect the left and right swing frame assemblies.
2. Attach the front and rear foot assemblies to the frame.
3. Attach the seat pad and backrest tube to the frame.
4. Secure the toy bar with toys to the top of the frame.

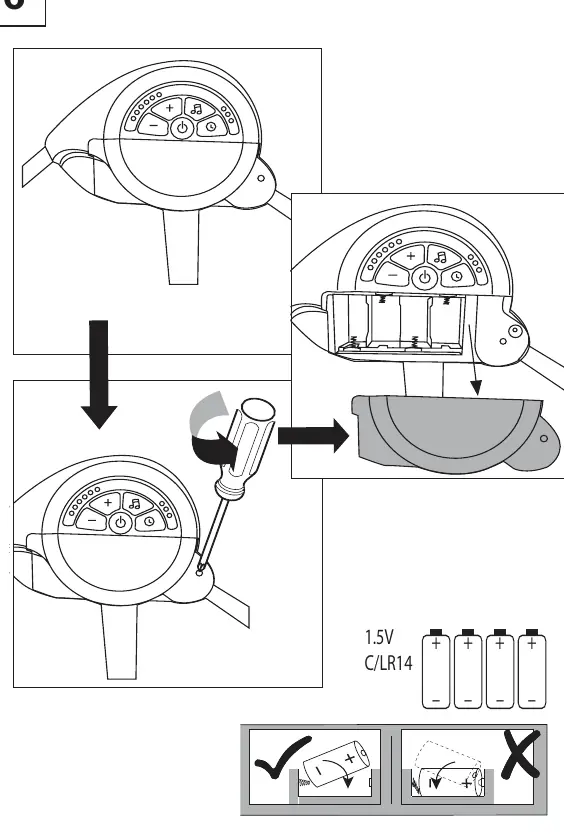

Battery Installation

The swing control module requires (4) size C/LR14 (1.5V) alkaline batteries (not included).

• Use a screwdriver to open the battery compartment on the control module.
• Insert batteries matching the polarity markings inside the compartment.
• Replace the cover and secure with the screw.
• Replace all batteries at once; do not mix old and new or different types.
• Remove batteries if storing the product for a long period.

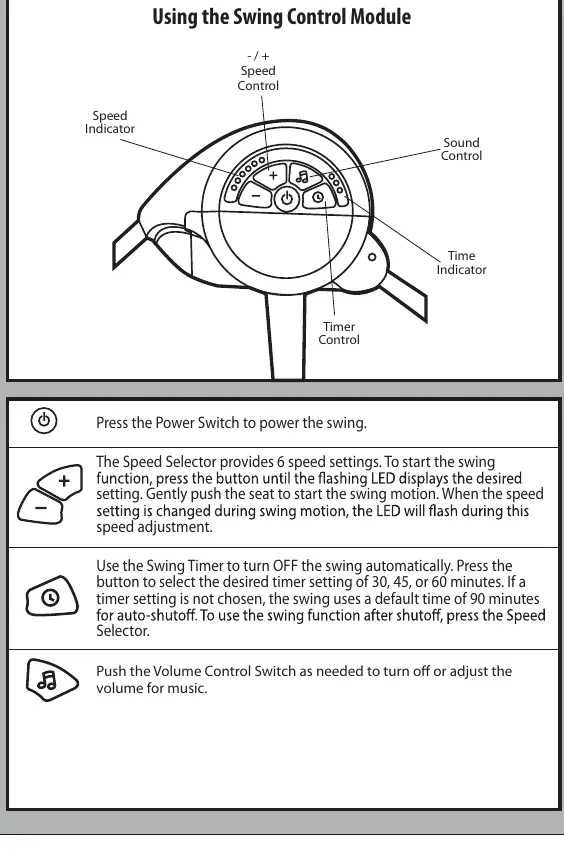

Using the Swing Control Module

The control module allows you to adjust speed, timer, and music volume.

• Power: Press the Power Switch to turn the swing on.
• Speed Selector: Provides 6 speed settings. Press the button until the flashing LED displays the desired setting. Gently push the seat to start the motion.
• Swing Timer: Select 30, 45, or 60 minutes. If no setting is chosen, the default is 90 minutes.
• Volume Control: Adjust or turn off music volume as needed.

Adjusting the Seat

Always keep the seat fully reclined until the infant is at least 4 months old and can hold their head up without help. Use the recline function to adjust the seat angle as the child grows.

Care and Cleaning

• Seat Pad: Remove from frame. Fasten buckles and hook-and-loop patches. Machine wash with cold water, gentle cycle. No bleach. Tumble dry, low heat.
• Toy Bar and Toys: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
• Frame: Wipe with a soft, clean cloth and mild soap.
