User Manual for Munchkin Spring 2-in-1 Bouncer & Rocker
Quick guide for the Munchkin Spring 2-in-1 Bouncer & Rocker. Includes assembly, mode switching, cleaning instructions, weight limits, and safety warnings.
Quick answers from the manual
Quick answer
- The Munchkin Spring 2-in-1 Bouncer & Rocker is a dual-mode baby seat with three incline positions. It must be used on the floor, never on elevated surfaces, and is suitable for children up to 20 lbs (9 kg). p. 5, 7, 8
Key actions
- Switching Modes p. 7
- Adjusting Incline p. 8
- Cleaning p. 10
First start
- Unfolding p. 7
Maintenance and reset
- Cleaning p. 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Weight | 3.8 lbs (1.7 kg) | Product weight | p. 11 |
| Max Weight Limit | 20 lbs (9 kg) | Maximum child weight | p. 8 |
Where to find it in the PDF
- Cleaning p. 10
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Munchkin Spring 2-in-1 Bouncer & Rocker is designed for infants. It features three incline positions and can be switched between rocker and bouncer modes. Important: Always use the product on the floor, never on elevated surfaces. Do not use for sleep; if the baby falls asleep, move them to a firm, flat surface like a crib. Stop using the product when the baby starts trying to sit up or reaches 20 lbs (9 kg).

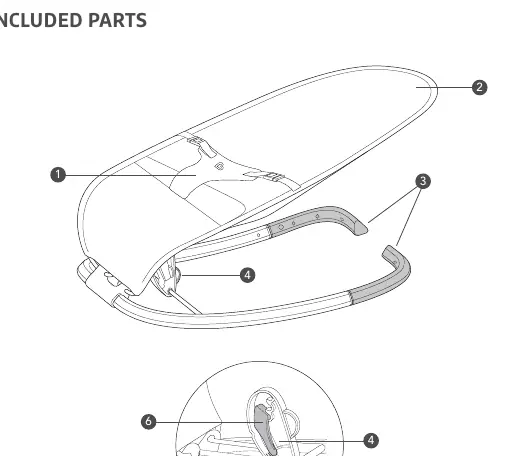

Included parts
- Safety Harness
- Removable Fabric Seat Sleeve
- Base Adjusters
- Incline Adjuster
- Locking Pin
- Safety Release Trigger
How to use
The product arrives folded flat in rocker mode. To unfold, lift the top of the seat to one of the three incline positions and release.
Changing modes and positions
Changing Modes: Twist the base adjusters until they click into the desired position. Ensure both adjusters are in the same position to prevent tipping.
Changing Position: Lift the seat slightly to release it from the current level, then guide the locking pin into the desired groove. You should hear a click when it is securely anchored.
Travel and storage
To pack the product flat, pull the safety release trigger and guide the locking pin to the bottom of the incline adjuster. To minimize storage size, twist the base adjusters to point the feet inward.
Harness usage
Always use the seat harness while your child is seated. Place the child in the seat, buckle the straps, and use the strap adjusters to ensure a snug fit.
Cleaning and maintenance
Removing the cover: Unsnap the flap buttons on the bottom edge of the cover and remove it from the frame.
Washing: Machine wash the seat cover and tumble dry warm. Do not iron. Wipe the frame and legs with a damp cloth.
Technical specifications
- Model: MKCA0864 REV1
- Weight: 3.8 lbs (1.7 kg)
- Materials: Aluminum, steel, plastic frame; 100% polyester seat fabric
- Max Weight Limit: 20 lbs (9 kg)
Warranty and contact
The product includes a 1-year limited warranty against defects. For support, contact Munchkin Customer Satisfaction at 1-800-344-BABY (2229) or visit www.munchkin.com.
Official resources from the manual
Practical help
Common problems
Product tips over
Ensure both base adjusters are set to the exact same position.
Baby falls asleep in the seat
Remove the baby immediately and place them on a firm, flat sleep surface like a crib or bassinet.
Seat will not unfold
Lift the top of the seat to one of the three incline positions and release to unfold.
Before use
- Check that all components are present and undamaged.
- Ensure the seat cover is fitted correctly.
- Place the bouncer/rocker only on the floor.
- Adjust restraints to fit the baby snugly.
- Verify the child is under the 20 lbs (9 kg) weight limit.
Specs in practice
- Weight Limit
- Maximum weight varies by position (6kg-9kg). Do not exceed 20 lbs (9 kg) total.
Images and diagrams
- Base adjusters: Twist to switch between rocker and bouncer mode.
- Incline adjuster: Pull to change seat angle or fold flat.
Model compatibility
- Not for use on elevated surfaces (beds, sofas, cushions).
- Not for sleep or unsupervised use.
