User Manual for Graco Soothe 'n Sway Bluetooth 3-in-1 Swing 1AV
Comprehensive user guide for the Graco Soothe 'n Sway Bluetooth 3-in-1 Swing (Model 1AV). Includes assembly instructions, safety warnings, operating modes, control panel settings, and maintenance tips.
Quick answers from the manual
Quick answer
- The Graco Soothe 'n Sway 1AV is a 3-in-1 swing, infant rocker, and toddler rocker. It features Bluetooth connectivity, adjustable swing speeds, vibration, and music. p. 1, 29
Key actions
- Assemble the base by inserting tubes into the motor housing until they click. p. 16
- Attach the seat to the base mount. p. 17
- Use Rock Lock to stabilize the seat. p. 21
First start
- Plug into wall, press power button, select swing speed and vibration settings. p. 28, 31, 32
Problems and fixes
Swing stops moving
The swing will auto-shutoff after 4 hours.
p. 30Maintenance and reset
- The swing auto-shuts off after 4 hours. p. 30
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Infant Swing Max Weight | 25 lb (11 kg) | Maximum weight capacity for swing mode. | p. 15 |
| Infant Rocker Max Weight | 20 lb (9 kg) | Maximum weight capacity for infant rocker mode. | p. 15 |
| Toddler Rocker Max Weight | 40 lb (18 kg) | Maximum weight capacity for toddler rocker mode. | p. 15 |
Where to find it in the PDF
- Assembly p. 16, 17, 18
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Graco Soothe 'n Sway Bluetooth 3-in-1 Swing (1AV) is a versatile product that functions as a swing, an infant rocker, and a toddler rocker. Important: Always use the restraint system until the child can climb in and out unassisted. Never leave the child unattended. The product must be assembled by an adult.
Assembly
Before assembly, verify all parts are present: Seat pad/frame, base tubes (left and right), motor housing, body support, harness covers, crotch strap cover, and wall plug.

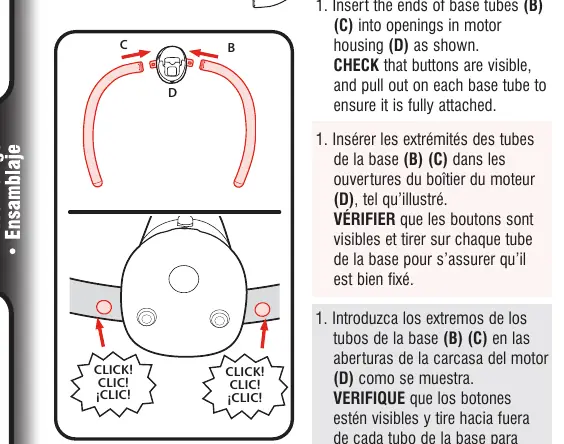

- Swing Base: Insert the ends of the base tubes into the openings in the motor housing until they click. Pull on each tube to ensure it is fully attached.
- Attach Seat: Hold the seat by the sides and attach it to the mount on the swing base. Ensure it is secure by lifting up on the seat.
- Remove Seat: Pull the handle on the rear of the base to unlock the seat.
Modes of Use
The product supports three weight-based modes:
- Infant Swing: For use up to 25 lb (11 kg).
- Infant Rocker: For use up to 20 lb (9 kg).
- Toddler Rocker: For use up to 40 lb (18 kg).
Operation and Controls
The control panel allows you to manage swing motion, vibration, music, and Bluetooth connectivity.
- Power: Plug the product into a wall outlet. Press the power button to turn the controls on. The swing will auto-shutoff after 4 hours.
- Swing Speed: Press the swing speed button to cycle through 6 motion options.
- Vibration: Press the vibration button to choose from 5 settings (Low to Highest, or Off).
- Music: Press the music button to turn on music and skip to the next song. Use the volume button to adjust sound levels.
- Rock Lock: Use the Rock Lock feature on the base to stabilize the seat when placing the child in or out of the product.
Safety Warnings
- Suffocation Hazard: Never use on soft surfaces like beds, sofas, or cushions. Always place the rocker on the floor.
- Strangulation Hazard: Keep cords out of reach. Do not use extension cords. Do not attach strings to toys or suspend them over the product.
- Fall Hazard: Always use the restraint system. Stop using the swing mode when the infant attempts to climb out (approx. 9 months).
Maintenance
Ensure the power cord is protected and not pinched by furniture. Do not use the AC adapter if it has been exposed to liquids or is damaged. Use only the provided power cord.
Manufacturer information
Graco Inc.
Practical help
Common problems
Swing not moving
Ensure the unit is plugged into a wall outlet and the power button is on. Check that the Rock Lock is unlocked.
Child sliding out
Always use the restraint system and adjust the belts to fit snugly around the infant.
Seat not secure
Verify that the seat is properly clicked into the base mount by lifting up on the seat.
Before use
- Verify all parts are present (Base tubes, Motor housing, Seat pad).
- Ensure the swing is on a flat, stable floor.
- Check that the AC adapter is not damaged.
- Ensure the child is within the weight limits for the chosen mode.
- Check that the harness is properly threaded and secure.
Specs in practice
- Infant Swing Mode
- Maximum weight capacity: 25 lb (11 kg).
- Infant Rocker Mode
- Maximum weight capacity: 20 lb (9 kg).
- Toddler Rocker Mode
- Maximum weight capacity: 40 lb (18 kg).
Images and diagrams

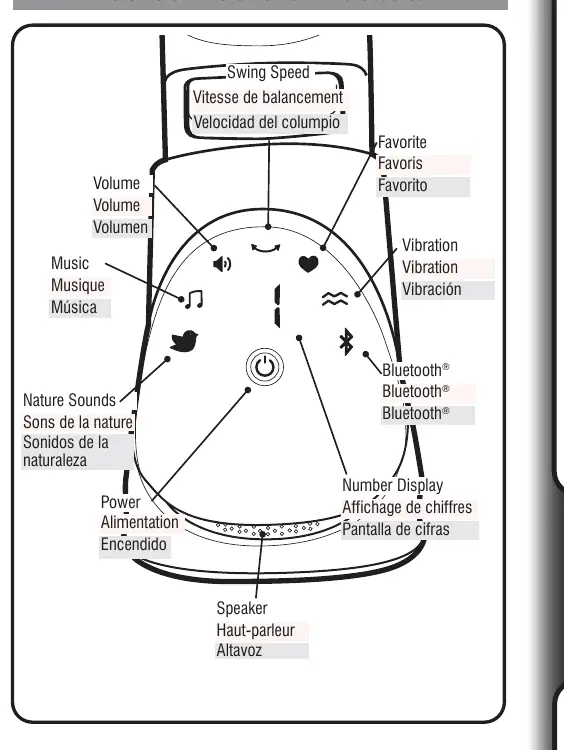

- Control Panel: Shows buttons for Power, Swing Speed, Vibration, Music, and Bluetooth.
- Rock Lock: Located on the base to stabilize the seat.
Model compatibility
- Use only the provided power cord.
- Do not use with extension cords.
- Do not use accessories not included with this product.
