This manual provides installation and configuration instructions for the Ground Zero Titanium Series GZTC 165.3X-II 3-way component loudspeaker system. Key features include Klippel-optimized components, 3-ohm impedance, and a passive crossover with adjustable levels.
Safety instructions
- Keep all parts and packaging away from children and pets to avoid suffocation.
- Avoid prolonged exposure to high volume levels (over 85 dB) to prevent hearing damage.
- Do not operate at levels that hinder the perception of traffic noises.
General installation notes
- Never drill into the vehicle's gas tank, brake lines, wiring, or other critical parts.
- Avoid routing cables over sharp edges.
- Keep signal and speaker cables away from antenna electronics and power supply wiring to prevent interference.
- Use adequately dimensioned wires for connection.
Crossover adjustment
The crossover allows for individual sound tuning:
- Tweeter level: Use the jumper to select between -2 dB, 0 dB, or +2 dB.
- Midrange cut-off: Use the jumper to select between Low (linear frequency response) or High (increased upper midrange frequency response).
Wiring

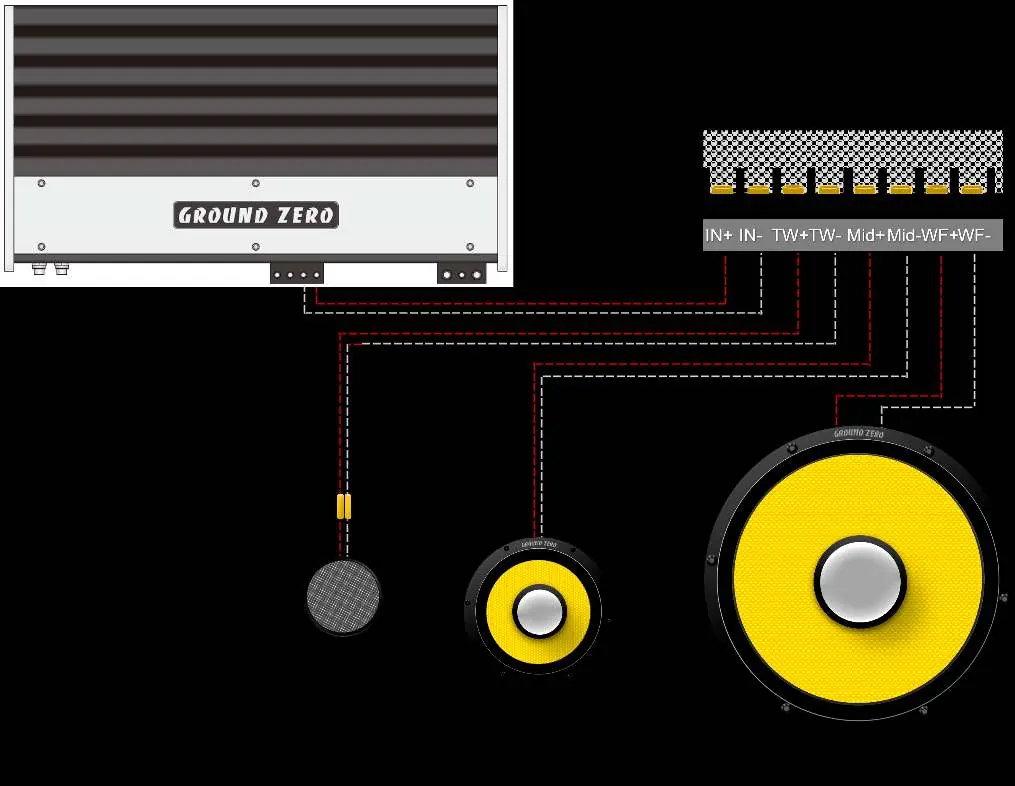

Connect the system according to the following terminal labels:
- IN: Signal input from head unit or amplifier.
- TW OUT: Tweeter connection.
- MID OUT: Midrange connection.
- WF OUT: Kickwoofer connection.
Technical specifications
- Impedance: 3 Ohm
- Frequency response: 50 Hz – 22 kHz
- Power handling (RMS): 120 Watts
- Power handling (max): 180 Watts
- Efficiency: 91 dB
Manufacturer information
Ground Zero Audio
Practical help
Common problems
Distortion or interference
Ensure signal and speaker cables are routed away from power supply wiring and antenna electronics.
Hearing damage
Avoid prolonged exposure to volume levels exceeding 85 dB.
Before use
- Ensure all components are present.
- Verify mounting depth and diameter requirements for your vehicle.
- Check vehicle for gas tanks or brake lines before drilling.
- Use adequately dimensioned power and speaker wires.
- Ensure your amplifier is stable at 3 Ohms.
Specs in practice
- Power Handling (RMS)
- 120 Watts; the continuous power the system can handle.
- Power Handling (max)
- 180 Watts; the peak power the system can handle.
- Frequency Response
- 50 Hz – 22 kHz; the range of frequencies the system reproduces.
Images and diagrams
- Crossover Adjustment: Use jumpers to set tweeter level (-2dB, 0dB, +2dB) and midrange cut-off (Low/High).
- Wiring: Connect head unit/amplifier to IN, tweeter to TW OUT, midrange to MID OUT, and kickwoofer to WF OUT.
Model compatibility
- 3-Ohm System: Ensure your amplifier is stable at 3 Ohms.
