Operator's Manual for Husqvarna ST 143i Electric Snow Thrower

Quick guide from the manual

This manual provides essential safety, operation, and maintenance instructions for the Husqvarna ST 143i electric snow thrower. Before use, ensure the battery is fully charged, the safety key is inserted, and all nuts and bolts are tightened. Always wear appropriate protective gear, including eye protection and sturdy shoes. Never operate the machine on slopes greater than 10 degrees.

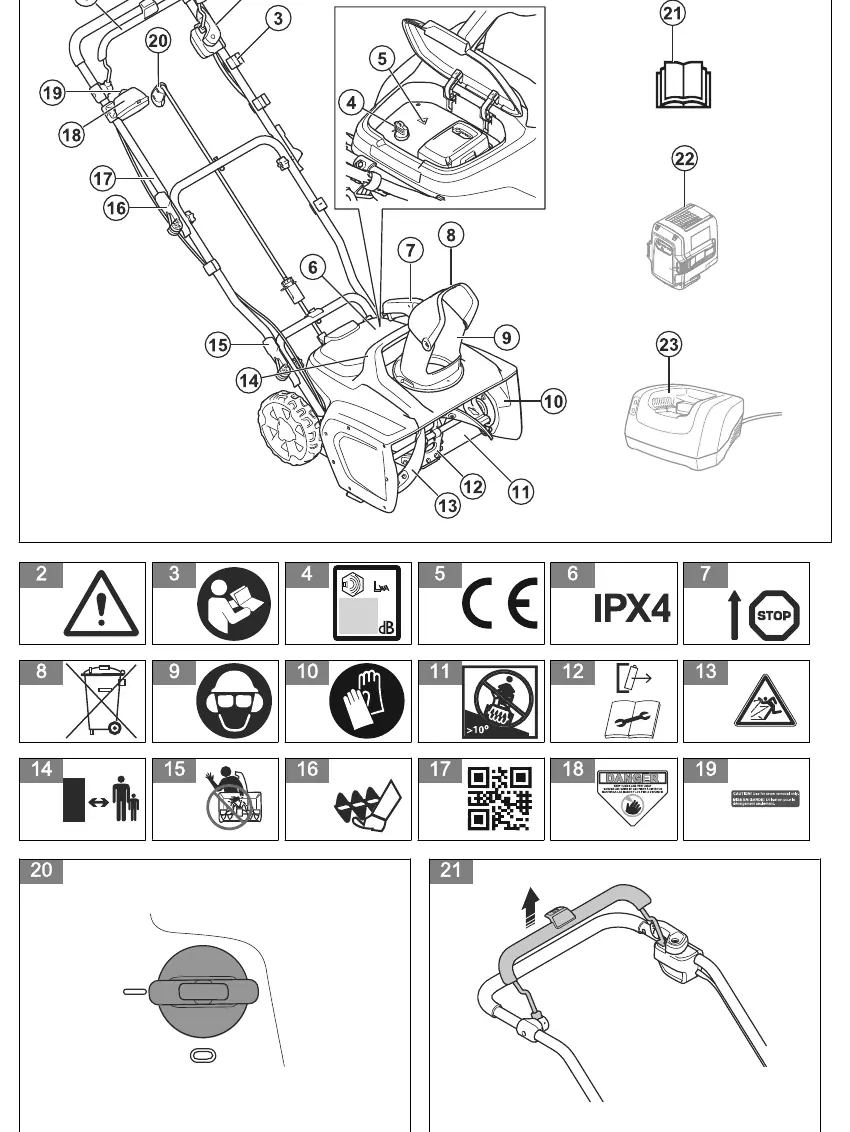

Product description

The Husqvarna ST 143i is a battery-powered snow thrower designed for clearing snow from fields, roads, paths, and driveways. It features a brushless motor, adjustable discharge chute, and LED work lights.

Assembly

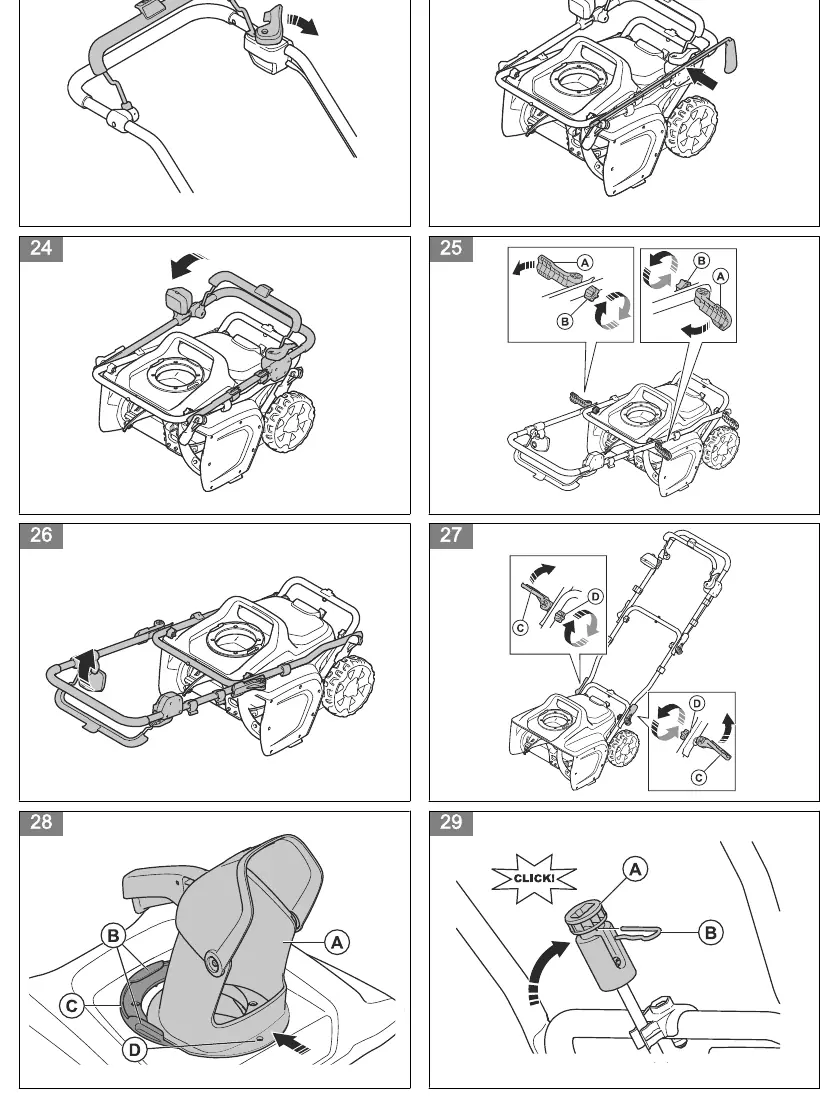

Handle Assembly:

• Unfold the handle and secure the upper and lower handle knobs.
• Ensure the cable is not damaged or pinched during assembly.
• Attach the chute control rod to the handle assembly.

Chute Installation:

• Align the discharge chute with the chute base on the auger housing.
• Secure the chute using the provided hardware, ensuring it rotates freely.

Operation

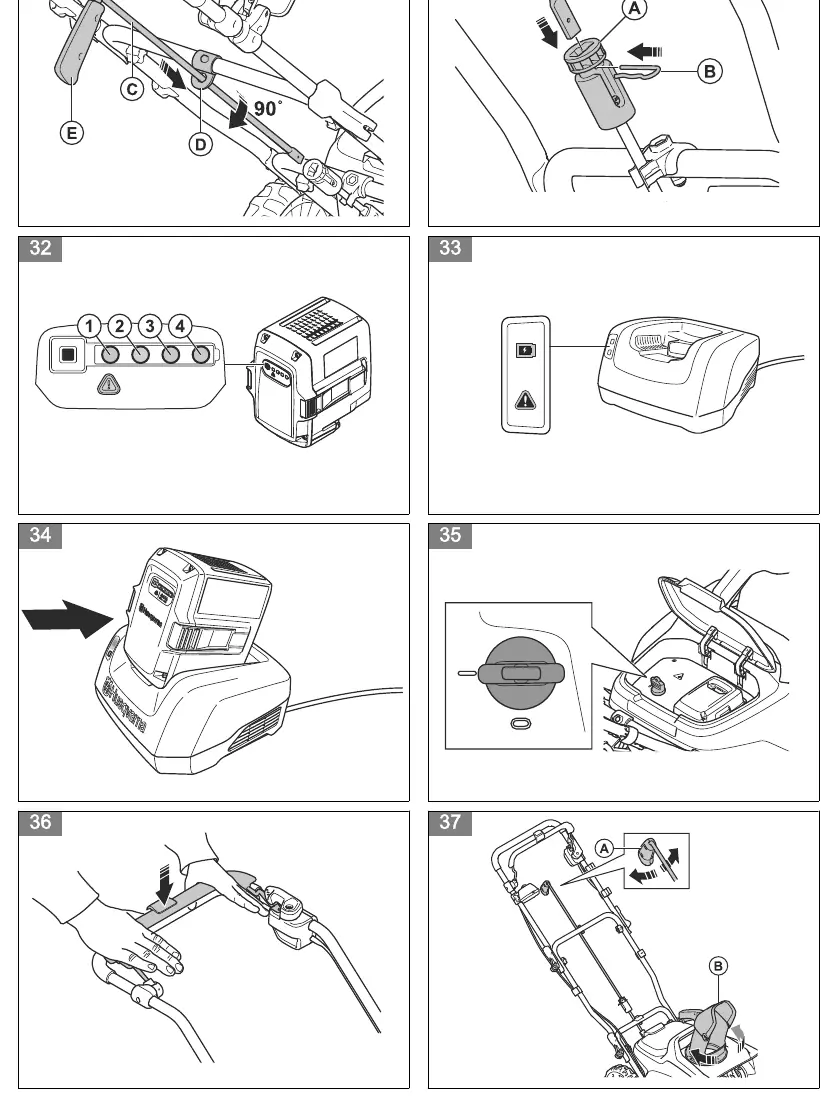

Battery and Charging:

• Use only Husqvarna-approved batteries and chargers.
• Charge the battery fully before the first use.
• The battery status can be checked by pressing the battery button; LEDs indicate the charge level.

Starting and Stopping:

• Insert the safety key into the battery compartment.
• To start, press the safety lock and pull the motor brake handle toward the handlebar.
• To stop, release the motor brake handle.

Adjustments:

• Use the chute control rod to adjust the direction of snow discharge.
• Adjust the discharge deflector to control the throwing distance.

Maintenance

Maintenance Schedule:

• After each use: Perform general inspection, clean the machine, check the safety key, motor brake handle, and auger housing.
• Monthly: Check battery release buttons and charger condition.
• Yearly: Inspect the auger belt and electrical connections.

Cleaning and Care:

• Always remove the battery and safety key before cleaning or performing maintenance.
• Use a brush to remove snow and ice from the auger and chute.
• Do not use high-pressure washers to clean the machine.

Troubleshooting

If the machine fails to operate or shows error codes:

• LED Error Codes: Refer to the troubleshooting table in the manual. Common issues include blocked auger, motor overload, or low battery.
• Excessive Vibration: Check for loose parts or a damaged auger.
• Poor Performance: Check for a clogged chute, worn scraper bar, or loose drive belt.

Technical data

• Motor Type: 36V BLDC (brushless)
• Clearing Width: 430 mm (16.9 inches)
• Weight (without battery): 18.5 kg
• Sound Pressure Level: 76 dB(A)
