User Manual for Hyundai 57707 Wet/Dry Vacuum Cleaner
Quick guide for the Hyundai 57707 wet/dry vacuum cleaner. Includes assembly instructions, operating modes for dry and wet suction, power tool connection, and maintenance tips.
Table of contents
Important Information from the Manual
This document provides instructions for the Hyundai 57707 wet/dry vacuum cleaner. It covers assembly, operation for dry and wet suction, and the use of the integrated power tool socket. Always ensure the correct filter is installed before use: the dust bag for dry material and the foam filter for liquids.
Description
The vacuum cleaner consists of the following main components:
- 1. On/off switch
- 2. Electronic power socket
- 3. Motor housing
- 4. Container latch
- 5. Container
- 6. Wheels
- 7. Tube
- 8. Hose
- 9. Hose lock knob
- 10. Hose connection
- 11. Nozzle
Assembly
To assemble the wheels:
- Turn the base upside down.
- Place the wheel axle into the grooves at the rear and secure it with the two screws.
- Attach the swivel casters at the front by pressing the peg into the hole.
- Turn the base back to the upright position.
Operation
Dry Suction
Ensure the dust bag is installed in the container. Connect the hose to the hose connection and attach the tube and nozzle. Set the switch to position 'I' to turn on.
Wet Suction
Remove the dust bag and install the supplied foam filter over the filter basket. Connect the hose and nozzle. Set the switch to position 'I' to turn on. The machine features an overflow float that stops suction when the tank is full.
Power Tool Connection
The vacuum has an electronic power socket for power tools. Set the switch to position 'II'. Connect the power tool to the socket and the hose to the tool's dust extraction outlet. The vacuum will automatically start and stop with the power tool.
Cleaning and Maintenance
- After dry use: Remove, empty, or replace the dust bag.
- After wet use: Remove the foam filter, rinse with water, dry thoroughly, and reinstall.
- General: Empty the container after every wet use and allow it to dry. Regularly clean the motor housing and exhaust outlet with a non-fluffy cloth or brush.
Manufacturer information
Hyundai
Practical help
Common problems
Suction stops suddenly
The overflow float has been triggered because the tank is full. Switch off the machine, empty the tank, and switch it back on.
Power tool does not trigger vacuum
Ensure the vacuum switch is set to position 'II' and the tool is properly connected to the electronic power socket.
Before use
- Check that the power supply voltage matches the rating plate.
- Install the dust bag for dry vacuuming.
- Install the foam filter for wet vacuuming.
- Ensure all accessories are securely attached.
- Verify the tank is empty and clean.
Specs in practice
- Max. socket power: 2000W
- The maximum power rating for any electrical tool connected to the vacuum's electronic socket.
- Suction power: 19 kPa
- The vacuum's suction capacity.
- Container capacity: 30L
- The total volume of the tank.
Images and diagrams

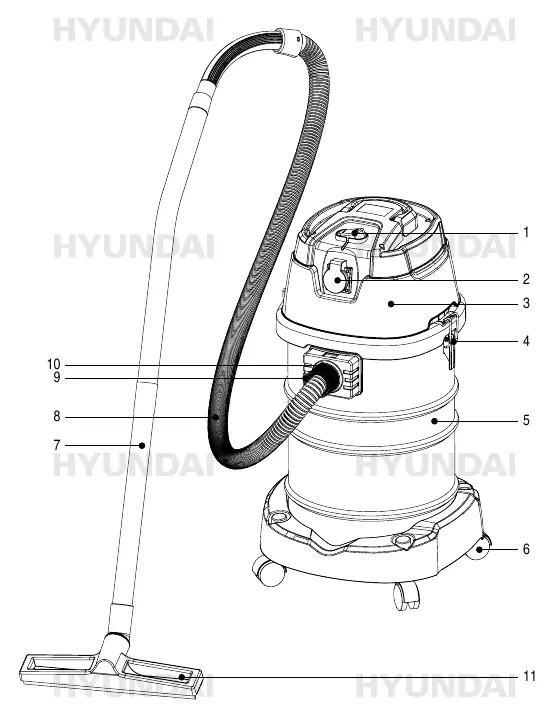

- Figure A identifies the main parts: 1. Switch, 2. Power socket, 3. Motor housing, 4. Latches, 5. Tank, 6. Wheels, 7. Tube, 8. Hose, 9. Lock knob, 10. Connection, 11. Nozzle.
Model compatibility
- The electronic power socket is for power tools only; do not use it as a standard mains socket or for extension leads.
