User Manual for Ibell IBL CLOUD 750C Induction Cooktop

Quick guide from the manual

The Ibell IBL CLOUD 750C is a 2000W induction cooktop designed for efficient cooking. Before use, ensure you have compatible cookware and that the unit is placed on a flat, stable surface with at least 10cm of clearance for ventilation. The device features multiple cooking modes and built-in protection functions to ensure safe operation.

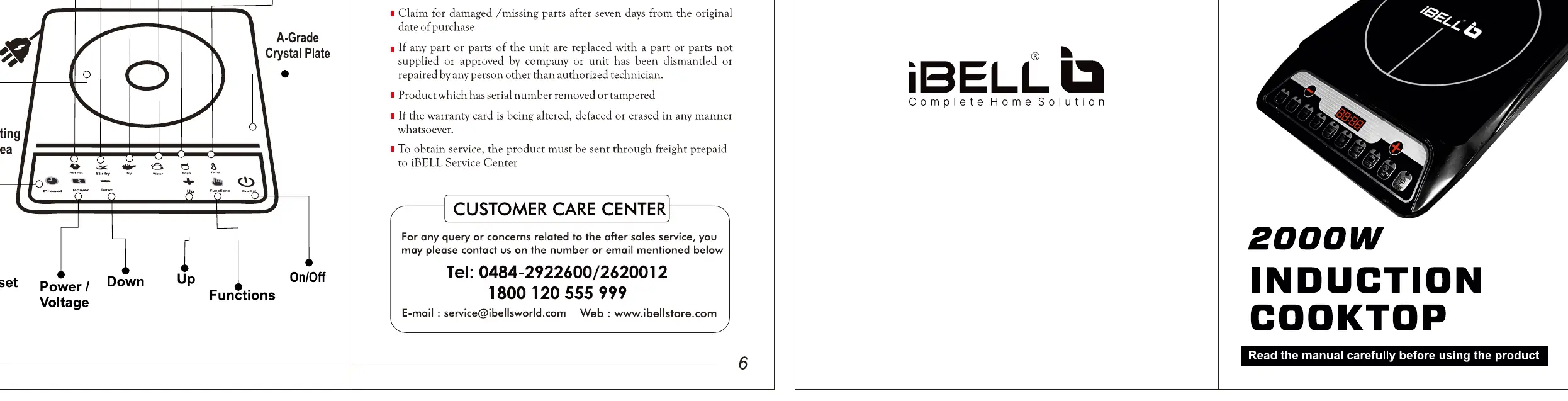

Control panel and operation

The control panel allows you to select various cooking modes and adjust settings:

• On/Off: Powers the unit on or off.
• Functions: Cycles through preset cooking modes including Hot Pot, Stir fry, Fry, Water, Soup, and Temp/Milk.
• Power/Voltage: Allows adjustment of power or voltage settings.
• Up/Down: Adjusts temperature or power levels.
• Preset: Used for setting delayed cooking times.

Cookware compatibility

Using the correct cookware is essential for the induction cooktop to function properly:

• Compatible: Iron or stainless steel cookware with a flat bottom and a diameter between 12-20cm.
• Not Compatible: Ceramic, glass, aluminum, copper, or cookware with uneven, rounded, or small bottoms (less than 12cm).

Safety instructions

• Do not use the cooktop near gas or kerosene cookers.
• Ensure the unit is not used by children without supervision.
• Do not place metal objects like knives or forks on the cooktop surface.
• If the power cord is damaged, it must be replaced by a professional.
• Do not use the cooktop if the surface is cracked.

Cleaning and maintenance

Always unplug the unit and allow it to cool before cleaning:

• Wipe the surface with a damp cloth.
• For stubborn dirt, use a mild detergent.
• Do not wash the unit directly with water or immerse it in liquid.
• Keep the air vent clean to prevent malfunction.

Troubleshooting and error codes

If the cooktop displays an error code, refer to the following:

• E3: Protection against High Voltage. Wait for the voltage to stabilize.
• E5: Protection against dry heat. Ensure the vessel contains food or water.
• E6: IGBT Over heat protection. Allow the unit to cool down.
• E7: IGBT sensor failure. Contact authorized service.

Customer support

For any queries or service-related issues, contact Ibell customer care at 0484-2922600 / 2620012 or 1800 120 555 999. You can also email [email protected] or visit www.ibellstore.com.
