User Manual for iBELL IBL WG 2000L Wet Grinder
Quick guide for the iBELL IBL WG 2000L Table Top Wet Grinder. Includes assembly instructions, usage tips for attachments, grinding capacity tables, and essential safety precautions.
Quick answers from the manual
Quick answer
- The iBELL IBL WG 2000L is a 2-litre table top wet grinder. It includes attachments for kneading dough, scraping coconut, and juicing citrus. Always ensure the drum is not empty for more than a minute and add water during operation. p. 1
Key actions
- Assemble the drum, roller, and top nut before switching on. p. 1
- Clean the drum and roller assembly thoroughly after each use. p. 1
First start
- Ensure the unit is placed on a stable surface, assemble the drum and roller, add ingredients and water, then switch on. p. 1
Show 4 more answers Show less
Problems and fixes
Mechanical fault
Contact your nearest dealer.
p. 1Maintenance and reset
- Clean the drum and roller assembly thoroughly after use. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Capacity | 2 Litres | Total drum capacity | p. 1 |
| Voltage | 230V, 50Hz | Power requirements | p. 1 |
| Drum Speed | 130 RPM | Speed under load | p. 1 |
Where to find it in the PDF
- Main Instruction Sheet p. 1
Table of contents
Quick guide from the manual
The iBELL IBL WG 2000L is a 2-litre table top wet grinder designed for grinding rice and dhal. This manual provides essential instructions for assembly, operation, and maintenance. Always ensure the appliance is clean and dry before use, and never run the grinder empty for more than a minute.
Assembly and Operation
- Place the Drum Assembly on the Centre Shaft.
- Place the Roller assembly on the centre shaft.
- Secure the Top Nut by tightening it.
- Pour a cup of water into the Drum.
- Press the 'ON' switch to start the grinder.
- After use, switch off the machine, remove the roller, and clean the drum and roller assembly thoroughly.
Using Attachments
- Atta Kneader: Remove roller stones, place the kneader in the drum, add atta (approx. 350g), water, oil, and salt. Switch on the appliance.
- Citrus Juicer: Remove roller stones, place the juicer on the shaft, hold half a citrus fruit against the grooves, and switch on the grinder.
- Coconut Scraper: Remove roller stones, fix the scraper to the top centre pipe, and hold the coconut firmly against the scraper while the grinder is running.
Grinding Capacity and Times
Follow these guidelines for optimal results:
- Rice: Max 1kg (2 Litres) requires 3/4 Litres of water and 20-25 minutes. Min 3/4kg requires 1/2 Litres of water and 15-20 minutes.
- Dhal: Max 200g requires 3/4 Litres of water and 20-25 minutes. Min 100g requires 1/2 Litres of water and 15-20 minutes.
- Wetting Time: All ingredients should be soaked for 4 hours before grinding.
Safety Precautions
- Always keep the wet grinder clean and dry when not in use.
- Disconnect the electric cord from the switch when not in operation.
- Keep the appliance away from heat sources.
- Lift the appliance only from the base, not the drum or motor cover.
- Do not attempt to lift the appliance when in operation.
- Use a damp sponge for cleaning the body; do not pour water on the appliance.
- Supervise closely when the appliance is operated in the presence of children.
Manufacturer information
iBELL Home Appliances
Practical help
Common problems
Grinder not running or mechanical fault
Do not run the grinder if operating conditions are not normal. Contact your nearest dealer for mechanical faults.
Motor strain or overheating
Do not run the wet grinder when empty for more than a minute. Ensure adequate water is added while grinding.
Before use
- Ensure the appliance is clean and dry.
- Check that the drum and roller assembly are properly fitted.
- Ensure the power cord is connected to a suitable power source.
- Verify the quantity of ingredients is within the recommended limits.
- Soak ingredients (Rice/Dhal) for 4 hours before grinding.
Show more Show less
Images and diagrams

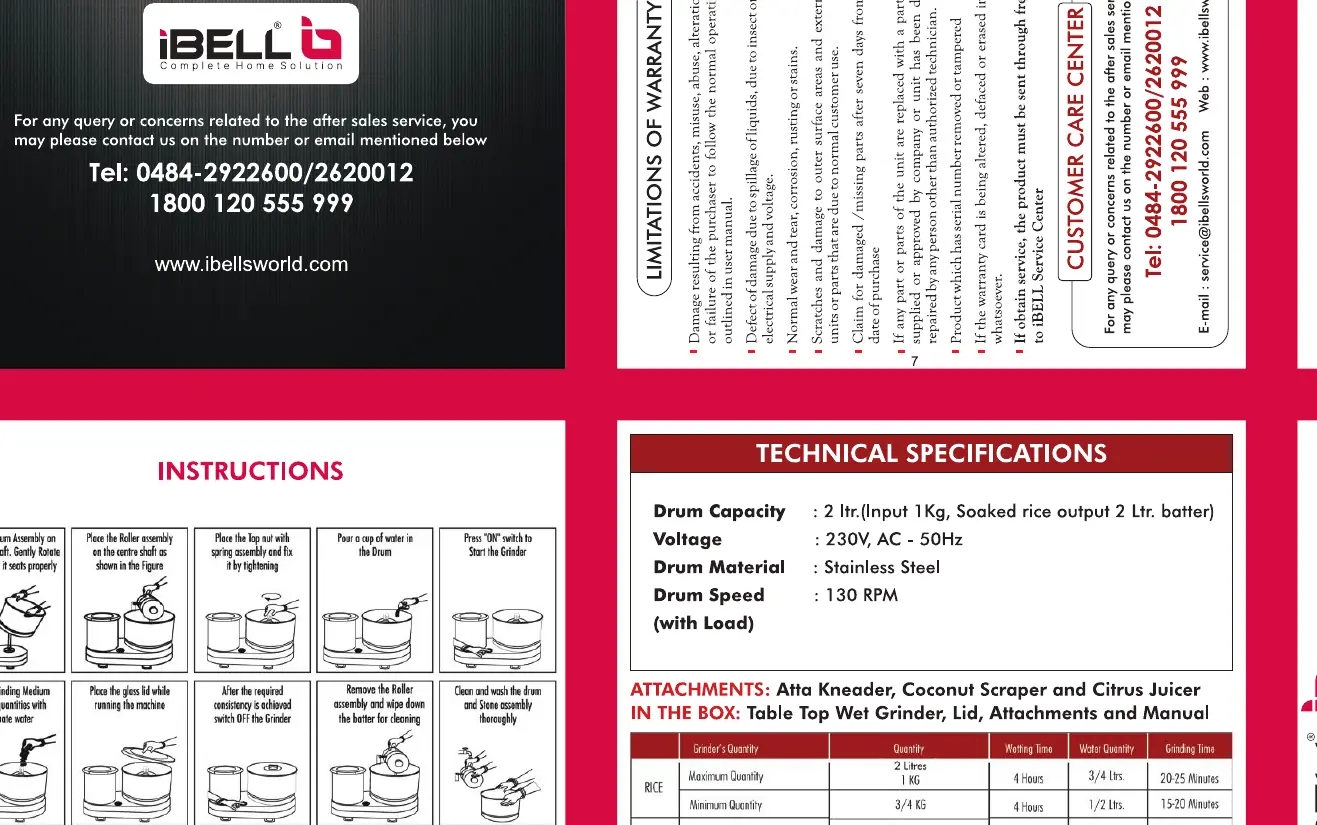

- The manual provides a visual sequence for assembling the drum, roller, and top nut.
- Attachments are shown with specific placement instructions for the shaft.
Model compatibility
- Designed for wet grinding of rice and dhal.
- Includes specific attachments for kneading atta, scraping coconut, and juicing citrus.
