IKEA TORNVIKEN 120cm Wall Shelf Assembly Instructions
A comprehensive assembly guide for the IKEA TORNVIKEN 120cm wall shelf, including safety warnings, required tools, and step-by-step installation procedures.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides assembly instructions for the IKEA TORNVIKEN 120cm wall shelf. The most critical aspect is the wall mounting process to prevent the furniture from falling, which could cause serious or fatal crushing injuries. Please note that wall screws and plugs are not included, as they must be chosen based on your specific wall material.
Safety and Warnings
Warning: Serious or fatal crushing injuries can occur from furniture falling down. To prevent this, the shelf must be securely attached to the wall using appropriate hardware. Assess your wall type to ensure it can withstand the load and consult a professional if you are uncertain about the correct mounting hardware.
Assembly Preparation

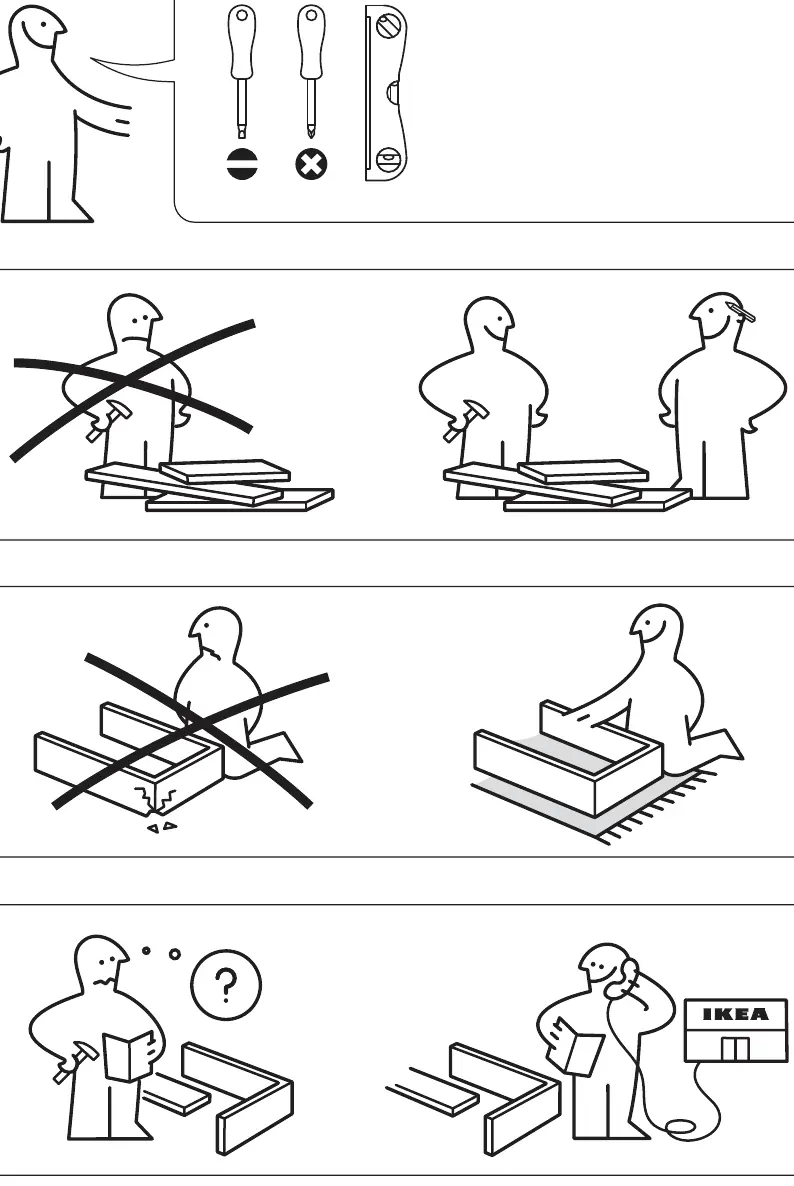

Before starting, ensure you have the following tools: a flat-head screwdriver, a Phillips-head screwdriver, and a spirit level. It is recommended to assemble the unit on a soft surface (like a rug) to prevent damage to the furniture or floor. Assembly should be performed by two people.
Assembly Steps
The assembly process involves connecting the shelf components using the provided cam locks, dowels, and screws. Follow the steps in numerical order:

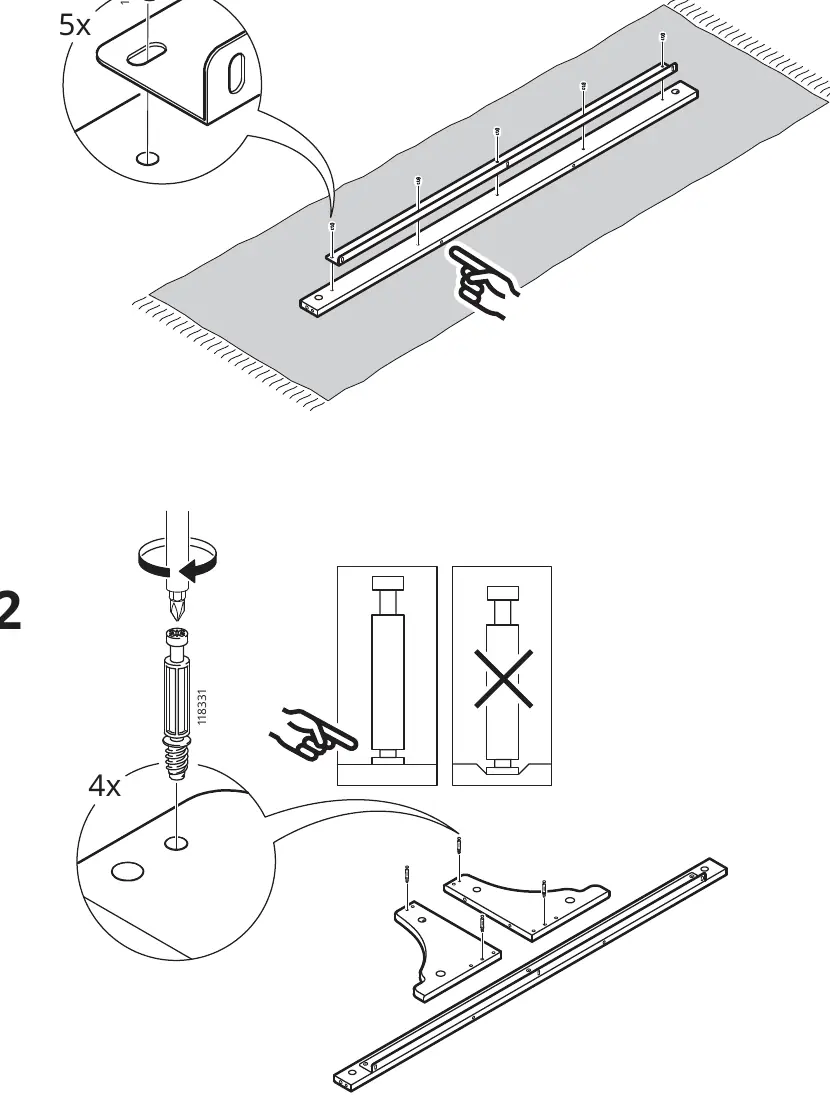

- Steps 1-2: Prepare the shelf frame components by inserting the cam screws and dowels.
- Steps 3-6: Connect the side panels and frame supports, securing them with cam locks.
- Steps 7-8: Install the hanging rod and hooks into the frame.
- Steps 9-10: Finalize the frame structure by tightening all cam locks.
- Steps 11-12: Prepare the main shelf board by inserting dowels and cam screws.

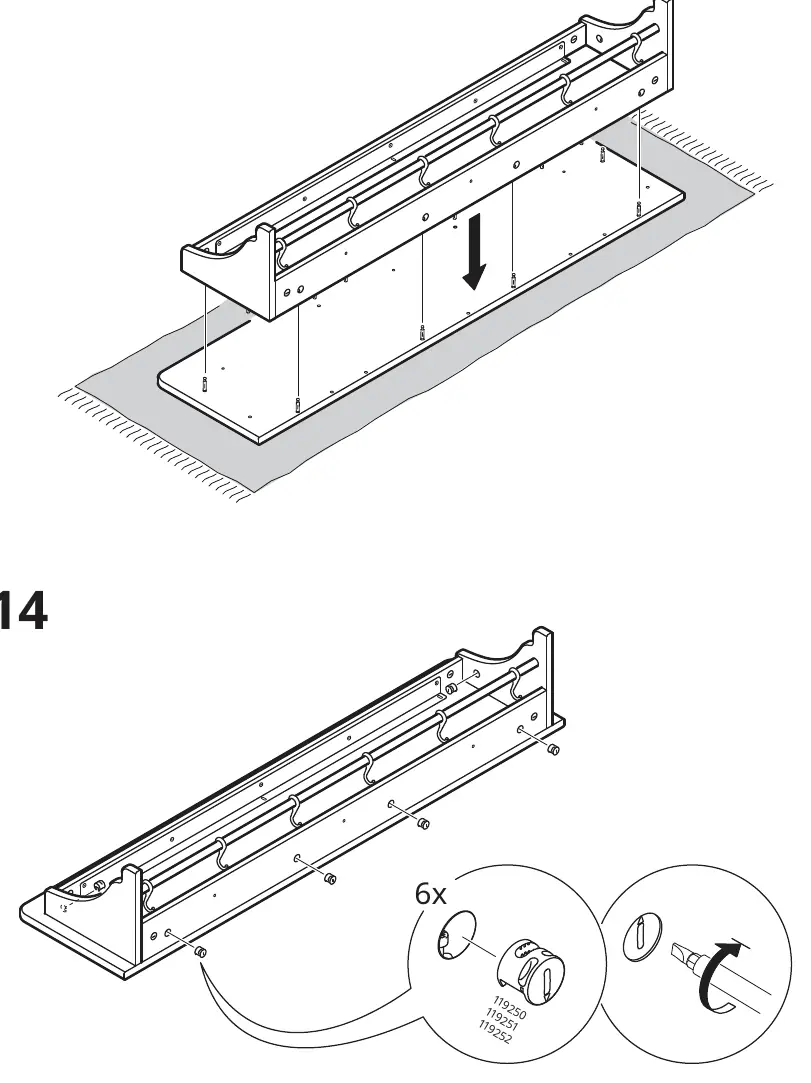

- Steps 13-14: Attach the shelf board to the frame and secure it with cam locks.

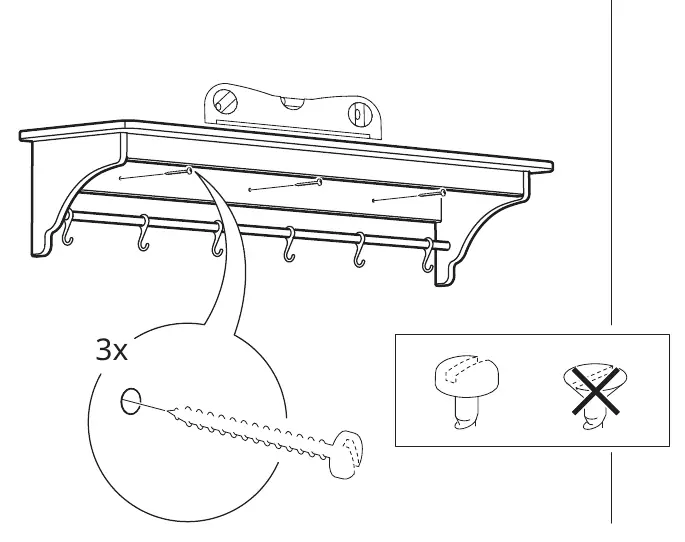

- Steps 15-16: Secure the shelf to the wall using appropriate screws for your wall type, ensuring it is level.
Manufacturer information
IKEA
Practical help
Common problems
Shelf feels unstable or loose.
Ensure all cam locks are fully tightened and that the shelf is properly anchored to the wall using appropriate hardware for your wall type.
Unsure which screws to use for the wall.
Wall screws and plugs are not included because different wall materials require different types of fixing devices. Consult a local hardware store or professional to select screws suitable for your specific wall.
Before use
- Verify all parts listed in the hardware section are present.
- Ensure you have a flat-head and Phillips-head screwdriver.
- Have a spirit level ready for accurate wall mounting.
- Assess your wall material to purchase the correct mounting screws and plugs.
- Clear a space on a soft surface for assembly.
Images and diagrams
- The manual uses icons to indicate that two people are required for assembly.
- A crossed-out hammer icon indicates that you should not use a hammer to force parts together.
- The cam lock tightening sequence is shown with a circular arrow, indicating a clockwise turn to lock.
Model compatibility
- The wall attachment device must be used to prevent the shelf from falling.
- The shelf is designed for wall mounting only.
