Assembly Instructions for Invicta Interior 46647 Sideboard
A complete assembly and adjustment guide for the Invicta Interior 46647 sideboard. Includes step-by-step wall mounting instructions, weight capacity limits, and procedures for adjusting door hinges.
Quick answers from the manual
Quick answer
- The Invicta Interior 46647 sideboard is mounted by attaching a metal frame to the wall and sliding the sideboard onto it. Doors can be adjusted for height, depth, and sideways alignment using the hinge screws. p. 1, 2
Key actions
- Mount the metal frame to the wall using wall plugs (H1). p. 1
- Slide the sideboard onto the metal frame and tighten screws from below. p. 1
Problems and fixes
Door is crooked
Use the front screw to correct the alignment.
p. 2Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Load | 60 kg | Total weight capacity of the sideboard. | p. 1 |
| Shelf Load | 8 kg | Maximum weight capacity per shelf. | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Door Adjustment p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide
This sideboard assembly requires two people. Ensure you do not exceed the maximum weight capacity of 60 kg for the unit, with a maximum of 8 kg per shelf. The assembly process involves mounting a metal frame to the wall and then securing the sideboard onto this frame.
Assembly Instructions
Before starting, ensure all parts (P1, P2, H1-H5, T1, T2) are present. Follow these steps to mount the sideboard:
- Prepare the wall: Insert the wall plugs (H1) into the wall according to the drilled holes.
- Mount the frame: Attach the metal frame to the wall using the provided hardware. Ensure the metal frame is securely mounted.
- Mount the sideboard: Carefully slide the sideboard onto the metal frame.
- Secure the unit: Tighten the screws from below to lock the sideboard onto the frame.
Door Adjustment
If the doors are not aligned correctly, use the following adjustments:
- Height adjustment: Adjust the small screws, then adjust the screws in the bigger hole.
- Depth adjustment: Use the back screw to change the distance of the door to the cabinet body.
- Sideways adjustment: If the door is crooked, use the front screw to correct the alignment.
Manufacturer information
Invicta Interior GmbH & Co. KG
Practical help
Common problems
Door is crooked
Use the front screw on the hinge to align the door sideways.
Door height is incorrect
Adjust the small screws, then adjust the screws in the bigger hole.
Door distance to cabinet is wrong
Use the back screw to adjust the depth of the door.
Before use
- Ensure two people are available for assembly.
- Verify all parts (P1, P2, H1-H5, T1, T2) are present.
- Check wall type to ensure appropriate mounting.
- Do not exceed the 60 kg total weight limit.
- Do not exceed the 8 kg shelf weight limit.
Images and diagrams

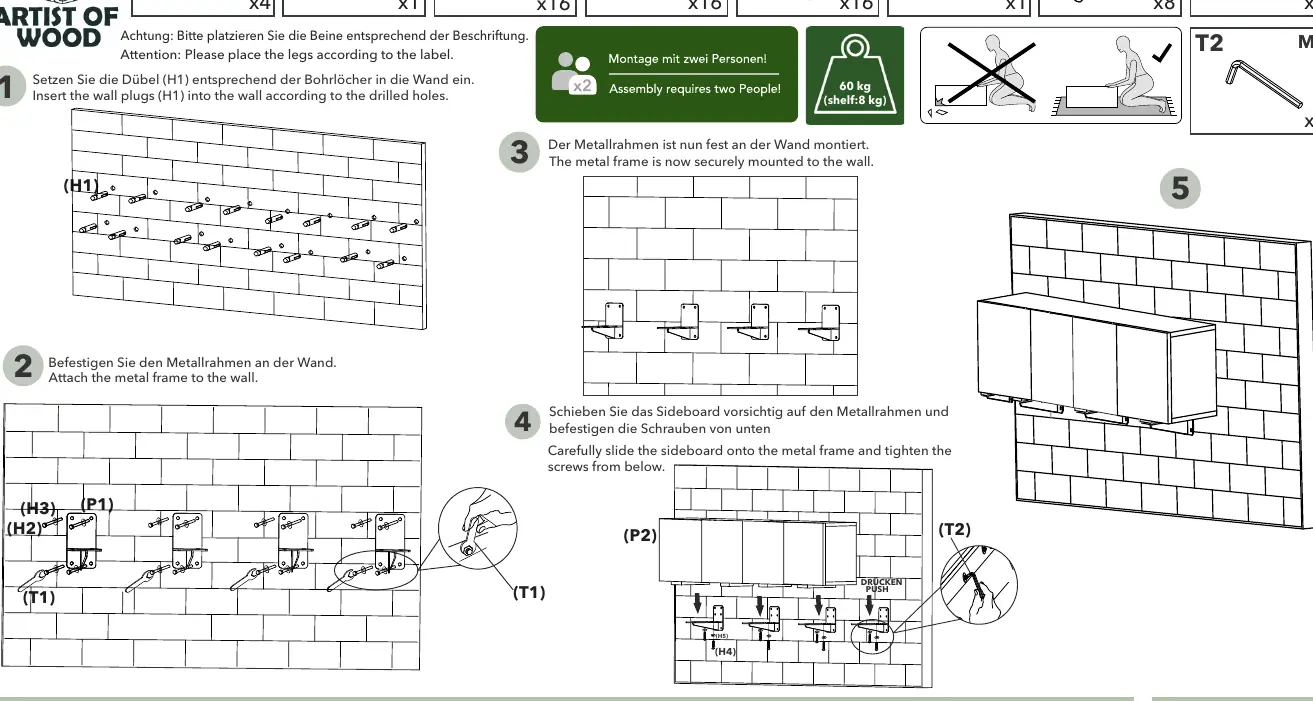

- The assembly diagram shows the step-by-step process of mounting the metal frame and attaching the sideboard.

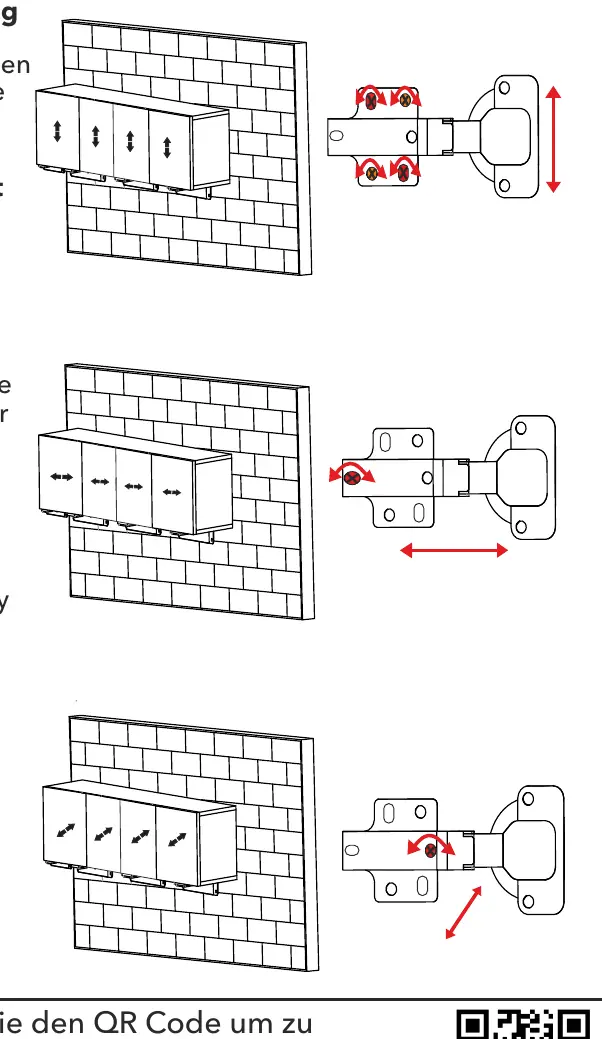

- The door adjustment diagrams illustrate which screws on the hinge control height, depth, and sideways alignment.
