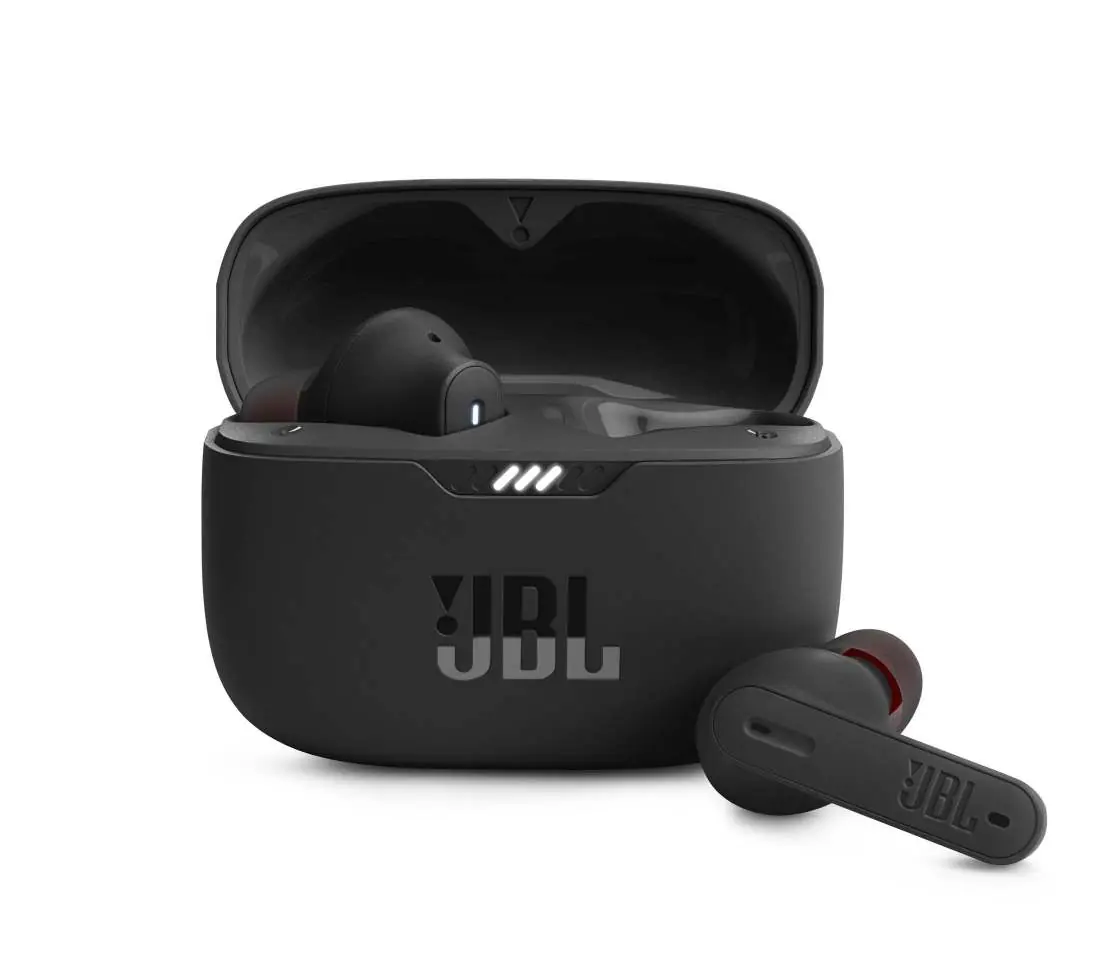

User Guide for JBL TUNE 235NC True Wireless Earbuds

Quick Guide for JBL TUNE 235NC

The JBL TUNE 235NC are true wireless noise-cancelling earbuds designed for all-day comfort and high-quality audio. This guide provides an overview of the product features, technical specifications, and usage benefits.

Features and Benefits

• JBL Pure Bass Sound: Features 6.0mm drivers enhanced by a stick form factor for deep, pulsing bass.
• Active Noise Cancelling (ANC) with Smart Ambient: Includes ANC to minimize distractions, Ambient Aware to stay connected to surroundings, and TalkThru for quick conversations without removing the earbuds.
• Voice Clarity: Equipped with 4 microphones for clear, hands-free stereo calls. Includes VoiceAware to control mic input routed back to the earbuds.
• Battery Life: Offers up to 40 hours of total battery life (10 hours in earbuds + 30 hours in the charging case) with ANC off. With ANC engaged, provides 8 hours in earbuds plus 24 hours in the case.
• Speed Charge: A 10-minute charge provides 2 hours of playtime.
• Durability: IPX4 water-resistant and sweatproof design.
• JBL Headphones App: Allows for customization of the listening experience, fit testing, and noise control settings.

What's in the Box

• 1 x JBL Tune 235NC headphones
• 1 x Charging case
• 1 x USB Type-C charging cable
• 1 x 3 sizes of eartips
• 1 x Warranty / Warning documentation
• 1 x Quick Start Guide / Safety Sheet

Technical Specifications

• Driver Size: 6 mm / 0.24" Dynamic Driver
• Power Supply: 5V 1A
• Bluetooth Version: 5.2
• Frequency Response: 20 Hz – 20 kHz
• Impedance: 16 ohm
• Sensitivity: 105 dB SPL@1 kHz
• Maximum SPL: 95 dB
• Microphone Sensitivity: -38 dBV/Pa@1 kHz
• Maximum Operation Temperature: 45°C
