Knog PWR Solar 10W Compact Folding Solar Charger User Guide
Learn how to efficiently use your Knog PWR Solar 10W charger with this quick start guide, covering optimal positioning, LED indicators, and charging status.
Table of contents
Product Overview
The Knog PWR Solar 10W is a compact, folding solar charger designed to provide portable power for your devices. Its foldable design makes it highly portable, while the 10W output ensures efficient energy collection from sunlight.
Quick Start and Positioning
To begin using the charger, unfold the panels completely to expose the maximum surface area to sunlight. For optimal charging performance, position the solar cells at a 90-degree angle relative to the sun's rays. Avoid angling the panels at 45 degrees or other indirect angles, as this significantly reduces the efficiency of energy collection.
Understanding LED Indicators
The charger features an LED interface that provides real-time feedback on solar irradiation and charging status:
- Irradiation Level: When no device is connected, the solid LEDs indicate the current level of solar irradiation being received by the panels.
- Charging Rate: When a device is connected, the flashing LEDs indicate the current charging rate. A faster flash sequence corresponds to a faster charge, while a slower flash sequence indicates a slower charge rate.
Maintenance and Usage Tips
Ensure the solar panels are kept clean and free of debris to maintain maximum efficiency. The charger is designed for outdoor use, but it should be handled with care to avoid damaging the folding mechanisms or the solar cells themselves. Always ensure the device is placed on a stable surface to prevent it from being blown over or damaged by wind.
Manufacturer information
Knog
Practical help
Common problems
Slow charging speed
Ensure the solar panels are positioned at a 90-degree angle directly facing the sun. Indirect sunlight or partial shading will significantly reduce output.
LEDs not indicating charge
Check that the device is properly connected to the charger and that the panels are receiving sufficient direct sunlight.
Before use
- Unfold all solar panels completely.
- Ensure the panels are placed in direct, unobstructed sunlight.
- Verify that the device to be charged is compatible with a 5V input.
- Check that the charging cable is securely connected to the charger and the device.
Images and diagrams

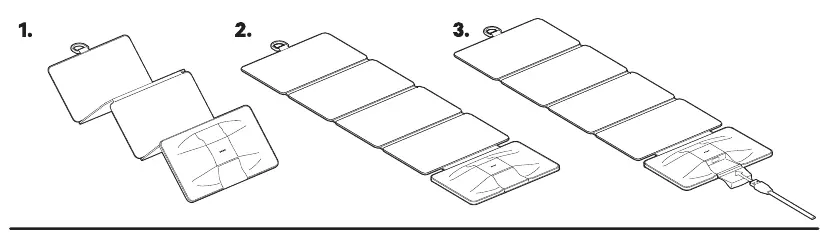

- The quick start diagram illustrates the three-step unfolding process to prepare the charger for use.
- The irradiation diagram shows that solid LEDs represent the intensity of sunlight received when no device is connected.
- The charging rate diagram shows that flashing LEDs indicate the speed of power transfer when a device is actively charging.
Model compatibility
- Designed for devices requiring a 5V power input via USB.
