This document provides installation and setup instructions for the Lucande 12W LED outdoor wall light (model 9619174). Key points include:
- Installation: Requires professional electrical installation. Ensure power is off before starting.
- Wiring: Connect Live (L), Earth, and Neutral (N) wires according to the provided diagram.
- Sensor: The light features an adjustable motion sensor (15-2000 lux, 5 sec - 10 min).
- Maintenance: The LED light source and control gear are replaceable by a professional only.
Intended use
This product is designed for stationary use on walls in outdoor environments. It is rated IP 54, providing protection against dust and splashing water. The operating voltage is 230V ~ 50Hz.

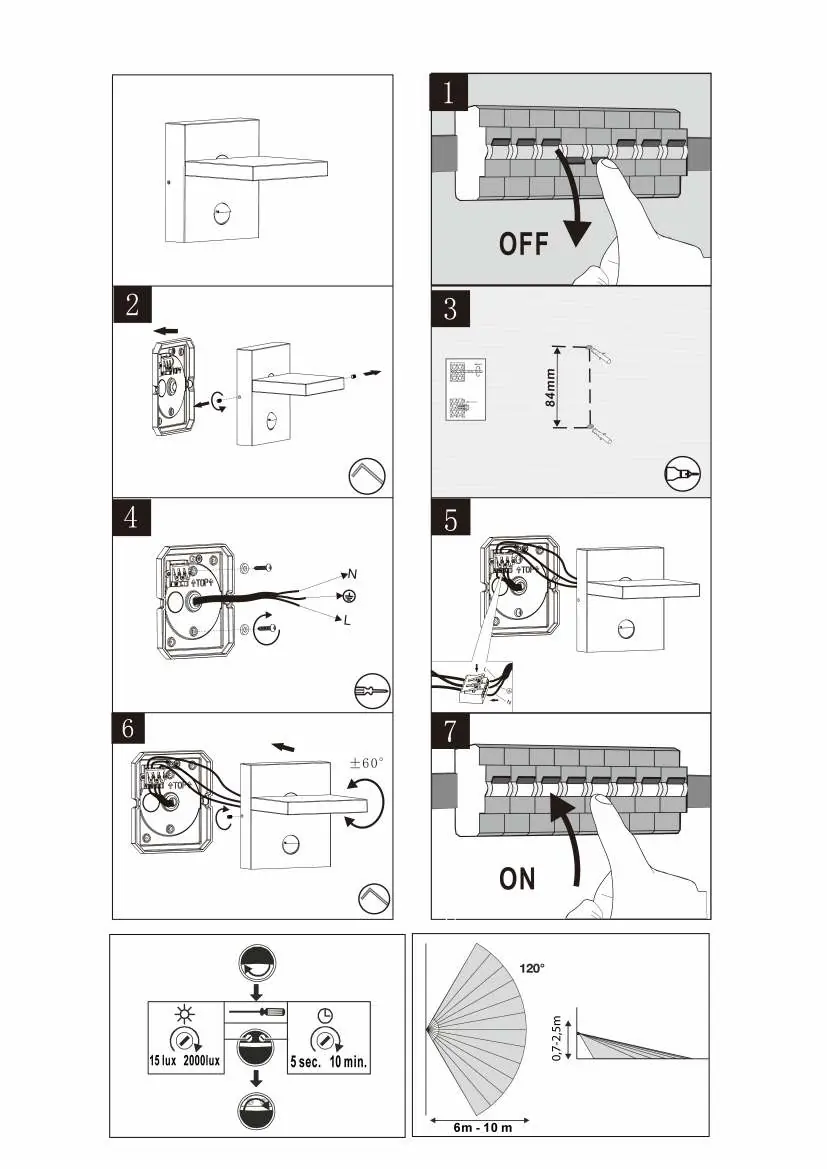

Installation
- Switch off the power supply at the circuit breaker.
- Prepare the wall surface and drill holes according to the mounting dimensions (84mm spacing).
- Connect the power supply wires to the terminal block: Live (L) to the brown/black wire, Earth to the yellow/green wire, and Neutral (N) to the blue wire.
- Secure the light fixture to the wall using the provided mounting hardware.
- Adjust the sensor settings as required.
- Switch the power supply back on.
Sensor settings
The motion sensor can be adjusted using the dials on the unit:
- Lux (Light sensitivity): Adjust between 15 lux and 2000 lux to determine at what ambient light level the sensor activates.
- Time (Duration): Adjust between 5 seconds and 10 minutes to set how long the light remains on after motion is detected.
- Detection range: The sensor covers a 120° angle with a range of 6m to 10m, at an installation height of 0.7m to 2.5m.
Maintenance
This product contains a light source of energy efficiency class E. The LED light source and the control gear are not intended for user replacement. If the light fails or requires service, it must be replaced or repaired by a qualified professional.
Practical help
Common problems
Light does not turn on
Check if the power supply is switched on at the circuit breaker and verify that all wiring connections are secure.
Sensor not detecting motion
Ensure the installation height is between 0.7m and 2.5m. Check if the sensor is obstructed and verify the lux/time settings.
Before use
- Ensure power is switched off at the circuit breaker before installation.
- Verify the wall surface is suitable for mounting.
- Check that the electrical supply is 230V ~ 50Hz.
- Confirm the IP54 rating is appropriate for the intended outdoor location.
Specs in practice
- 15 lux - 2000 lux
- Adjustable light sensitivity; lower values mean the light only turns on when it is darker.
- 5 sec - 10 min
- Adjustable duration the light stays on after motion is detected.
Images and diagrams
- Wiring: L (Live) connects to the brown/black wire, Earth connects to the yellow/green wire, and N (Neutral) connects to the blue wire.
Model compatibility
- The LED light source and control gear are replaceable by a professional only.
