Lucande 7620079 LED Ceiling Light User Manual
Quick guide for the Lucande 7620079 LED ceiling light. Includes installation steps, wiring instructions, and operation of the EASYDIM dimming function.
Table of contents
Quick guide from the manual
The Lucande 7620079 is a stationary LED ceiling light designed for indoor use. Key features include an IP20 protection rating and an integrated EASYDIM function that allows you to dim the light using a standard wall switch. Please note that the light source is non-replaceable; if it reaches the end of its life, the entire luminaire must be replaced.
Intended use
This product is intended for stationary installation on ceilings in indoor environments. It operates on a standard 230V ~ 50Hz power supply.
Package contents
- 1x Ceiling lamp
- Installation hardware
- Mounting instructions
Installation and wiring
Before starting the installation, ensure the power supply is switched off at the mains. The luminaire requires a standard electrical connection:
- L (Live): Connect the live wire (usually brown or black) to the terminal marked L.
- N (Neutral): Connect the neutral wire (usually blue) to the terminal marked N.
Ensure all connections are secure and the lamp is properly mounted to the ceiling surface before restoring power.
Operation (EASYDIM)
The EASYDIM function allows you to adjust the brightness using your existing wall switch:
- Switch ON: The light turns on at 100% brightness.
- Switch OFF/ON (within 3 seconds): The light begins to dim slowly from 100% down to 10%.
- Select Intensity: Switch OFF/ON again within 3 seconds when the desired brightness level is reached to lock it in.
- Switch OFF: Turning the switch off normally resets the cycle.
Important safety notes
The light source of this luminaire is not replaceable. When the light source reaches the end of its service life, the entire luminaire must be replaced. Do not attempt to open or repair the LED unit.
Practical help
Common problems
Light does not turn on
Verify that the power is switched on at the mains and that the wiring connections (L and N) are secure in the terminal block.
Light source failure
The light source is non-replaceable. If the light stops working, the entire luminaire must be replaced.
Before use
- Ensure the power is switched off at the mains before beginning installation.
- Verify that the ceiling structure can support the weight of the lamp.
- Confirm that your local power supply is 230V ~ 50Hz.
- Check that all necessary installation hardware is included in the package.
Images and diagrams

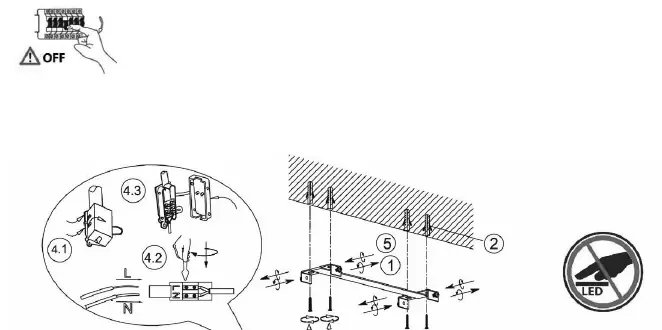

- The wiring diagram illustrates the connection of the Live (L) and Neutral (N) wires to the terminal block.
- The EASYDIM chart shows the sequence of switching the wall switch ON/OFF to dim the light.
Model compatibility
- For indoor use only.
- Stationary ceiling mounting only.
