User Manual for Palmer River Series peene 2-Channel Line Splitter
Quick guide for the Palmer peene 2-channel passive line splitter. Learn about connections, the Ground Lift switch, wiring examples, and technical specifications.
Quick answers from the manual
Quick answer
- The Palmer peene is a passive 2-channel line splitter designed to split a signal source into multiple outputs, such as power amplifiers or active speakers, while preventing hum loops using isolating transformers. p. 12
Key actions
- Connect signal source to INPUT 1/2. p. 13
- Use Ground Lift switch to eliminate hum. p. 13
First start
- Ensure input channels are muted before connecting cables. p. 13
Show 3 more answers Show less
Problems and fixes
Humming noise
Toggle the LIFT/GND switch.
p. 13Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Channels | 2 | Number of audio channels. | p. 15 |
| Dimensions | 140 x 50 x 128 mm | Physical size of the unit. | p. 15 |
Where to find it in the PDF
- Connections and Operating Elements p. 13
- Technical Data p. 15
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Palmer peene is a professional 2-channel passive line splitter designed for event technology, studio, TV, and broadcast applications. It allows you to split a signal source into multiple outputs, such as power amplifiers or active speakers, while maintaining signal integrity and preventing hum loops using high-quality isolating transformers.
Connections and Operating Elements
The device features the following inputs and outputs:
- INPUT 1 / INPUT 2: Balanced line inputs with female 3-pin XLR sockets for channel 1 and 2.
- THRU 1 / THRU 2: Balanced line outputs with male 3-pin XLR connectors. These are wired directly to the corresponding inputs.
- OUTPUT 1A / 1B & OUTPUT 2A / 2B: Balanced line outputs with male 3-pin XLR sockets. These outputs are decoupled from the line input via high-quality isolating transformers.
- LIFT / GND: A switch used to disconnect the ground connection between inputs and outputs. This is useful for eliminating hum loops.
Safety Instructions
- The device is intended for professional use only by qualified personnel.
- Do not open the device or perform any modifications.
- Keep the device and packaging away from children due to small parts and plastic bags (choking hazard).
- Ensure input channels (mixer, audio interface) are muted before connecting cables to avoid noise damage.
- Do not place the unit near strong magnetic fields, such as mains transformers, to avoid humming.
Wiring Example
The device is typically placed between a signal source (like a mixer) and multiple destination devices (like PA systems). Connect your source to the INPUTs and route the signals to your amplifiers or active speakers using the OUTPUTs or THRU connections.

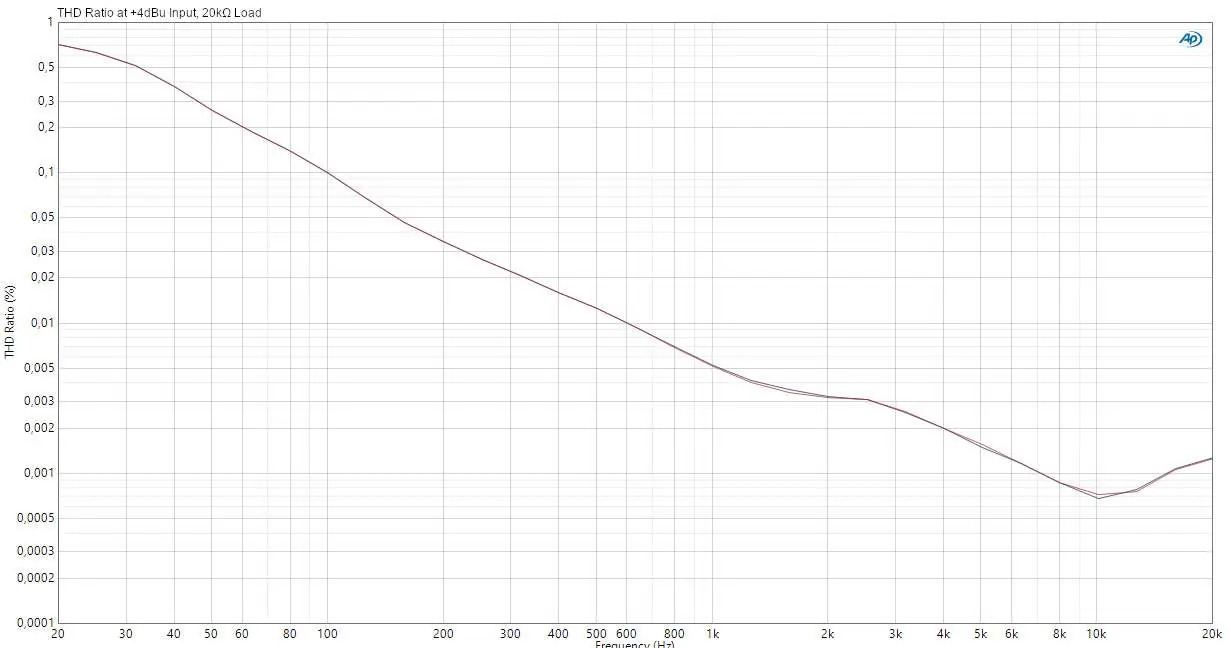

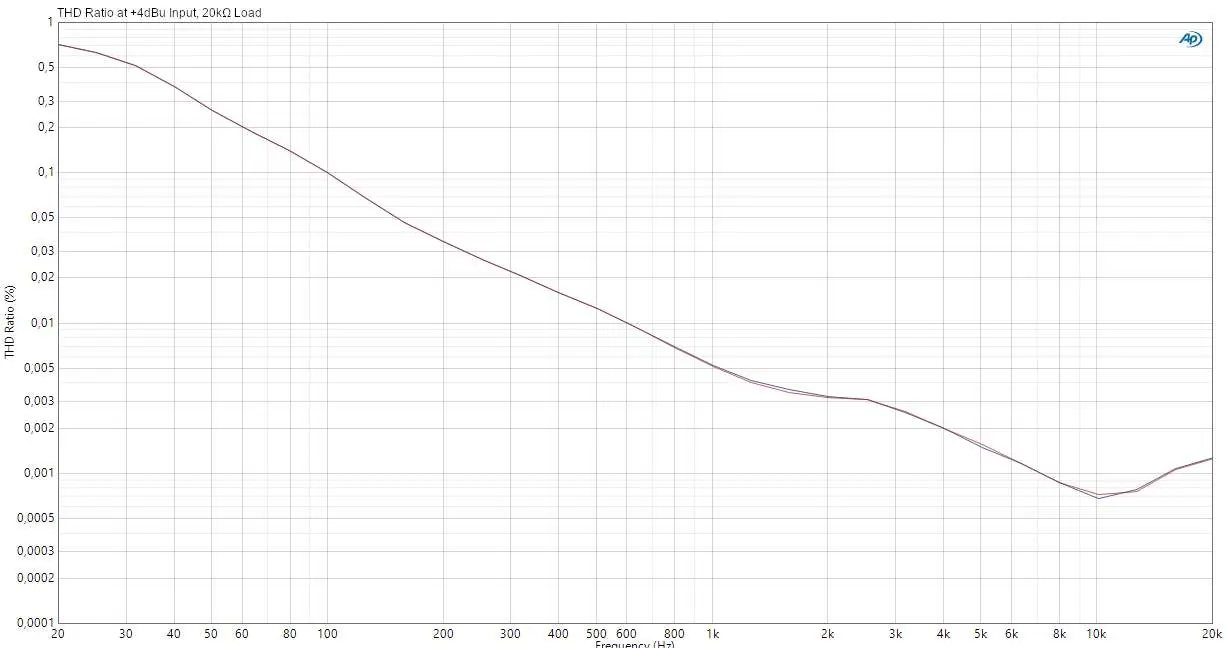

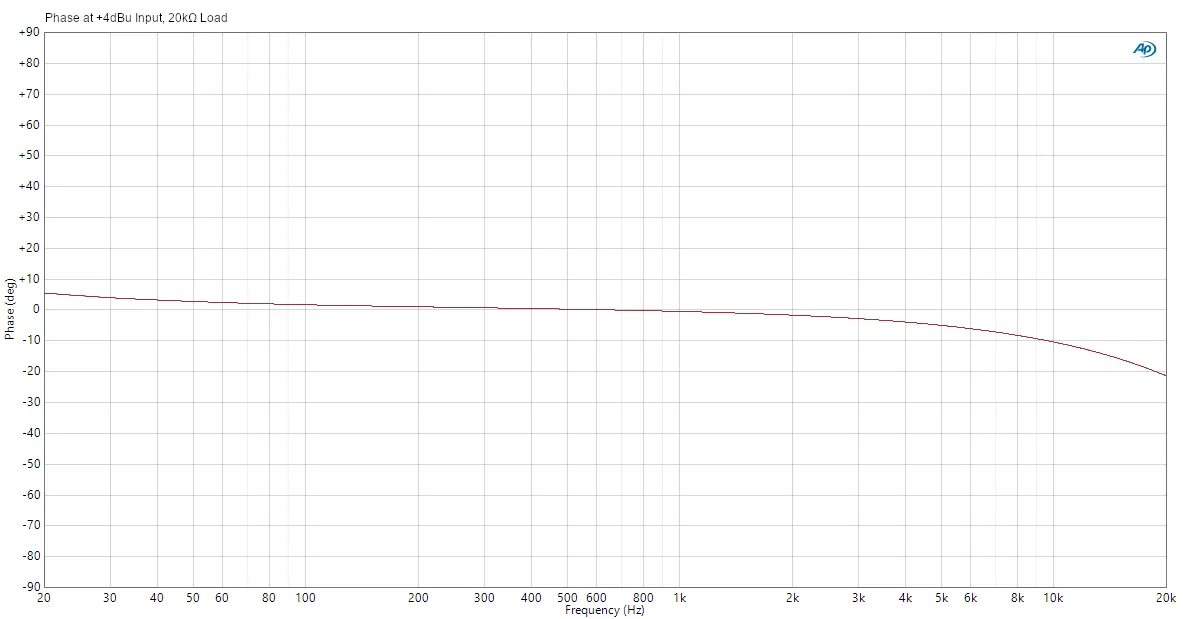

Technical Data
- Channels: 2
- Type: Passive
- Connections: XLR (Balanced)
- Dimensions: 140 x 50 x 128 mm
- Weight: 0.805 kg
- Operating Temperature: -20°C to 70°C
Practical help
Common problems
Humming noise
Use the Ground Lift switch to disconnect the ground connection. Try both positions (pressed/unpressed) to see which eliminates the hum.
Before use
- Ensure input channels are muted before connecting cables to avoid noise damage.
- Use balanced XLR cables for connections.
- Do not place the unit near strong magnetic fields (e.g., mains transformers).
Show more Show less
Specs in practice
- Transformer isolated
- Uses high-quality transformers to decouple inputs and outputs, preventing ground loops.
Images and diagrams
- The wiring example shows a mixer connected to the inputs, with outputs feeding multiple PA systems (PA 01, PA 02, PA 03).
Model compatibility
- Designed for professional use in event technology, studio, TV, and broadcast.
- Not suitable for household use.
Manual page author
Emily Carter
User documentation editor
