Installation Manual for Rugged Ridge Eclipse Sun Shade (JL 2-Door)
Installation guide for the Rugged Ridge Eclipse Sun Shade designed for 2-door Jeep Wrangler JL models. Includes component list, step-by-step mounting instructions, and compatibility details.
Quick answers from the manual
Quick answer
- The Eclipse Sun Shade is designed for 2-door soft top JL Wranglers. Installation involves cleaning the windshield frame, attaching the provided loop strip, and securing the shade straps around the sport bar. p. 1, 2
Key actions
- Clean the center of the windshield frame with alcohol before applying the loop strip. p. 2
- Secure straps in an alternating pattern around the sport bar. p. 2
Problems and fixes
Strap placement
Ensure straps wrap only around the sport bar and not the door surrounds.
p. 2Where to find it in the PDF
- Components and Compatibility p. 1
- Installation Instructions p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for installing the Rugged Ridge Eclipse Sun Shade on 2-door Jeep Wrangler JL vehicles. The shade is designed to remain in place even when the soft top is closed.

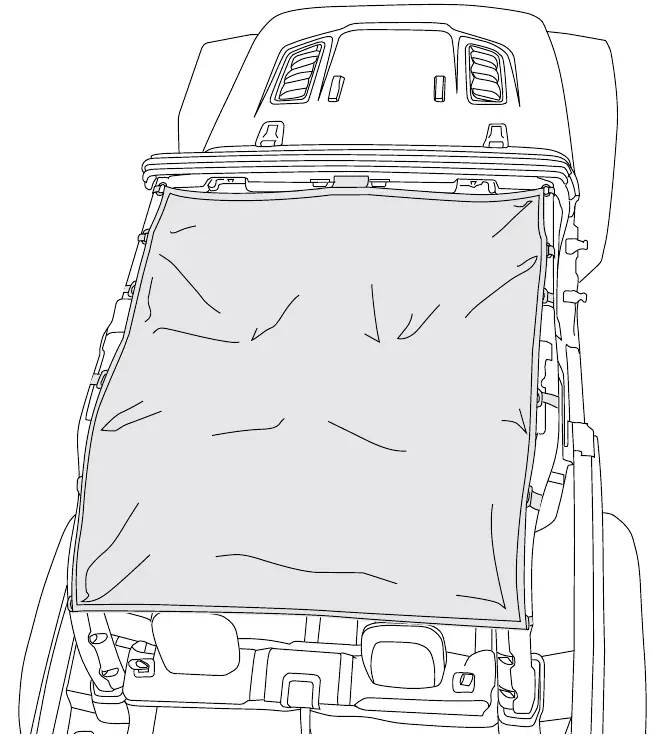

Components
- Sun Shade
- Mesh Storage Bag
- Loop Strip
Installation
- Lower the OE soft top according to the vehicle owner's manual.
- Position the Sun Shade on top of the sport bar with the hook and loop section facing forward and downward.
- Clean the center of the windshield frame thoroughly using alcohol.
- Peel and stick the Loop Strip to the windshield frame, ensuring it does not contact the interior plastic panel.
- Attach the Sun Shade hook and loop section to the installed Loop Strip.
- Secure the Sun Shade by looping the straps around the sport bar in an alternating pattern. Do not fully tighten the straps initially. Once all straps are in place, repeat the pattern and pull them tight.
Important Notes
- Compatibility: Designed specifically for 2-door soft top JL Wranglers.
- Strap Placement: On side locations, ensure straps wrap only around the sport bar and not the door surrounds.
- Storage: The shade and storage bag can be stored in the center console or glove box when not in use.
Practical help
Common problems
Straps not fitting correctly
Ensure straps wrap only around the sport bar and not the door surrounds.
Before use
- Verify vehicle is a 2-door soft top JL Wrangler
- Ensure you have the Sun Shade, Mesh Storage Bag, and Loop Strip
- Have alcohol ready for cleaning the windshield frame
Images and diagrams

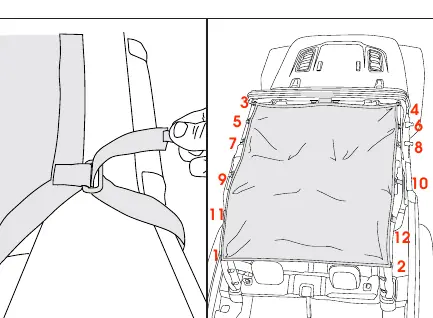

- The diagram shows the strap sequence for securing the shade to the sport bar.
Model compatibility
- Designed specifically for 2-door soft top JL Wranglers.
- Shade can remain in place with the soft top closed.
