Scs Sentinel CFI0025 Wired Chime Installation Guide
Quick installation and safety guide for the Scs Sentinel CFI0025 wired chime. Learn how to safely connect the 230V power supply, mount the unit, and select chime melodies.
Table of contents
Quick guide from the manual
This document provides essential instructions for the installation and safe operation of the Scs Sentinel CFI0025 wired chime. The device requires a 230V power connection and must be installed in accordance with local electrical standards.
Installation
- Ensure the power supply is disconnected before starting the installation.
- Open the chime housing using a screwdriver as shown in the installation diagram.
- Connect the two wires from the 230V power source to the chime terminals. Use a surge protector with a fuse or circuit breaker.
- Ensure the wire cross-section is at least 1.5 mm².
- Mount the chime base to the wall using the provided mounting points.
- Secure the cover back onto the base.
Safety and Maintenance
Important safety conditions:
- The device is intended for indoor use only.
- Do not expose the chime to dripping or splashing water.
- Do not place objects filled with liquids, such as vases, near the device.
- Keep the product out of reach of children.
- Clean only with a soft, dry cloth. Do not use abrasive or corrosive substances.
Melody Selection
The chime features multiple melody options. Refer to the internal selector switch to choose between the available sounds, including Ding Dong, Westminster, Elise, and others as indicated on the device label.
Manufacturer information
SCS Sentinel
Practical help
Common problems
Chime does not sound
Verify that the 230V power supply is active and that the wires are securely connected to the terminals.
Device housing does not close properly
Ensure no wires are pinched between the base and the cover during reassembly.
Before use
- Ensure the power supply is disconnected at the main breaker.
- Verify that the electrical circuit is protected by a fuse or circuit breaker.
- Check that the wire cross-section is at least 1.5 mm².
- Confirm the installation location is indoors and away from water sources.
Specs in practice
- Power Supply
- 230V AC mains connection required.
Images and diagrams

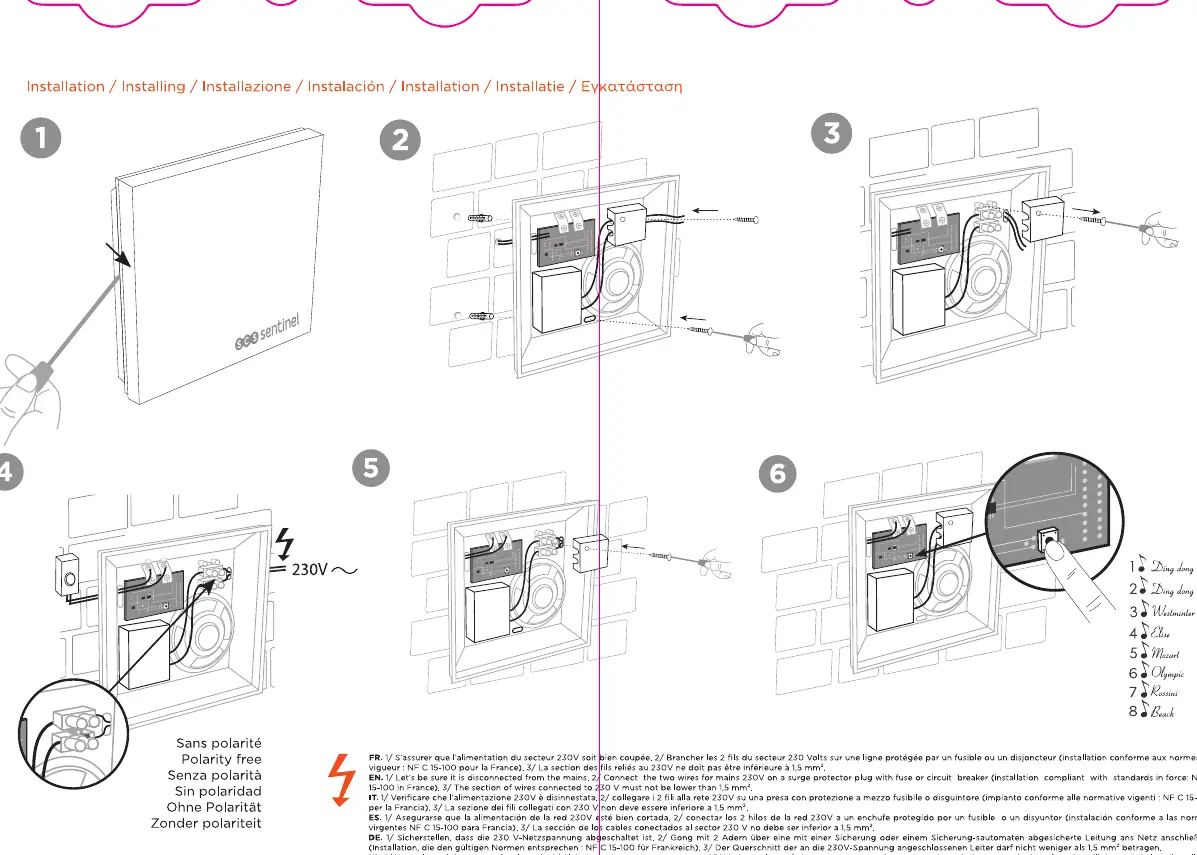

- Step 1: Opening the chime casing.
- Step 2-3: Wiring the 230V power supply to the terminals.
- Step 4-6: Mounting the unit to the wall and securing the cover.
- Step 7: Final assembly and melody selection.
Model compatibility
- Designed for standard 230V electrical installations.
- Must be installed in compliance with local electrical regulations (e.g., NF C 15-100 for France).
