Sealey 1500KG Hydraulic Coil Spring Compressing Station

Product Overview

The Sealey 1500KG Hydraulic Coil Spring Compressing Station is a robust, foot-operated hydraulic unit designed for efficient spring compression. It is significantly faster and easier to use than traditional ratchet-driven compressors. The unit features plastic-coated yokes to minimize the risk of spring slippage or damage, making it suitable for a wide range of springs with diameters from 80mm to 175mm.

Technical Specifications

• Model No: RE231.V3
• Max Load: 1500kg
• Upper Yoke Positions: 7
• Lower Yoke Travel: 340mm
• Spring Diameter Range: 80-175mm
• Actuation: Foot pedal

Safety Instructions

Warning: Always wear approved eye and hand protection. Keep hands and fingers away from the spring and compressing jaws during operation. Never allow untrained persons to use the equipment. Ensure the work area is clean and well-lit. Before use, inspect the compressor for any signs of wear, fatigue, or missing parts. Always secure the machine to the floor using the provided brackets.

Operation

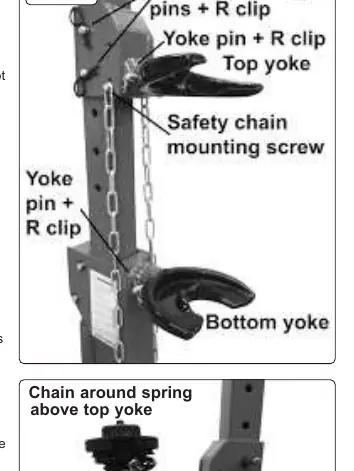

To operate, mount the spring between the yokes and secure it using the safety chains. Position one chain above the top yoke and one below the bottom yoke, ensuring they are as tight as possible. Stand to the side of the machine while applying hydraulic pressure. Stop compressing before the coils touch or bind. Use a metal or wooden tool to verify if the top strut nut is free; never use your fingers. Always release the compression slowly and ensure the spring is fully controlled by the strut assembly before removal.

Maintenance and Disposal

Perform a visual inspection before every use. If the unit shows signs of damage, remove it from service immediately. If hydraulic performance decreases, check the oil level with the ram fully lowered and refill with high-quality hydraulic jack oil if necessary. When the product reaches the end of its service life, drain all fluids into approved containers and dispose of the unit and fluids at a local recycling center in accordance with environmental regulations.
