Sealey 14pc 3.7V Lithium-Ion Quick Select Cordless Screwdriver

Product Overview

The Sealey CP36MS.V2 is a compact and lightweight 3.7V cordless screwdriver designed for convenience and efficiency. It features a unique quick-select bit system with two magazines, each holding six bits, allowing for rapid tool changes. The device includes a forward and reverse selector, a trigger-lock mechanism, a built-in LED work light, and a three-color battery charge indicator.

Technical Specifications

• Battery: 3.7V 1.3Ah Li-ion
• Charging Time: 3-5 hours
• No-Load Speed: 230rpm
• Max Torque: 4.5Nm
• Included Bits: Slotted (3, 4, 5mm), Philips (#1, #2, #3), Pozi (#1, #2, #3), TRX-Star (T10, T15, T20)

Safety and Operation

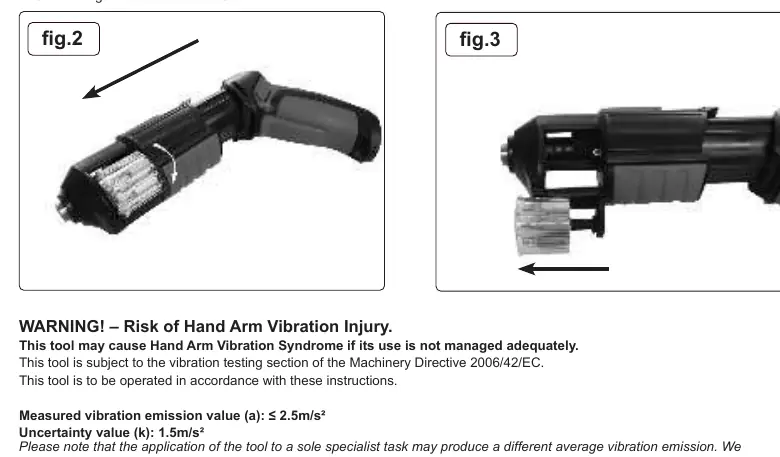

Always wear approved eye protection and keep the work area clear. Do not operate the tool if you are tired or under the influence of substances. Ensure the workpiece is securely clamped. To charge, connect the lead to the micro pin port; the LEDs will light in sequence until the green light indicates a full charge. The trigger actuates the tool and the LED light. To change bits, pull the magazine carrier forward, rotate to the desired bit, and push the carrier back. To swap magazines, pull the carrier forward and push the magazine to the left to release it from the spindle.

Maintenance and Vibration

Keep the tool clean and in good condition. Be aware that prolonged use may cause Hand Arm Vibration Syndrome. Ensure the tool is well-maintained to minimize vibration risks. There is no specific PPE for vibration, but keeping hands warm and dry is recommended.

Disposal and Environment

Dispose of the product in accordance with WEEE regulations. Recycle all packaging and components at authorized centers. The battery must be handled according to local environmental regulations for lithium-ion waste.
