Sealey Racking Unit with 5 Shelves (150kg Capacity Per Level)

Product Overview

The Sealey Racking Unit features a robust steel or galvanised frame equipped with five durable MDF shelves. With a load capacity of 150kg per level, the unit provides a total storage capacity of 750kg. The design utilizes a bolt-free system that clips together in minutes, allowing for quick and easy assembly. The two-piece uprights offer versatility, enabling the unit to be used as a single tall bay or split into two separate shelf systems or workstations.

Safety Instructions

• Ensure the rack is erected on a level, solid surface such as concrete.
• Always adhere to local health and safety regulations during assembly and use.
• Do not exceed the maximum load of 150kg per shelf.
• Distribute heavier items evenly across the shelves and place them on the lower levels.
• Where possible, fix the rack to the wall using suitable fixings for added stability.
• Do not use the rack outdoors or in damp, wet, or condensation-prone environments.
• Keep the area clean, uncluttered, and well-lit.

Assembly and Maintenance

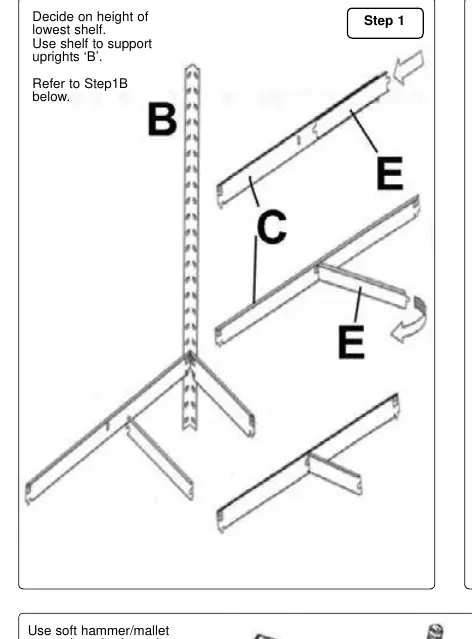

The unit is designed for simple assembly without the need for nuts and bolts. Start by building the ends by joining the upright sections. Use a soft hammer or mallet to tap horizontal supports into place and a screwdriver to bend the locking tabs down securely. Ensure the rack is fully assembled and stable before loading it with items. To maintain the unit, avoid using harsh solvents when cleaning the shelf supports, as these may damage the surface finish.

Technical Specifications

• Model No: AP6150.V3 / AP6150GS.V3
• Height: 1800mm
• Width: 800mm
• Depth: 300mm
• Weight: 11kg
• Capacity per shelf: 150kg

Disposal and Environment

In line with environmental protection policies, please recycle unwanted materials rather than disposing of them as general waste. All components, accessories, and packaging should be sorted and taken to an appropriate recycling facility. When the product reaches the end of its service life, dispose of it in accordance with local regulations.
