SHADA 300416 Outdoor Solar LED Floodlight Instructions

Product Overview

The Shada 300416 is an 8W outdoor solar LED floodlight designed to provide efficient, sustainable lighting. This unit features an integrated solar panel and a rechargeable 18650 Li-ion battery, making it an ideal solution for outdoor areas where traditional wiring is impractical. With an IP54 rating, the floodlight is protected against dust and water splashes, ensuring durability in various weather conditions.

Safety and Installation

Before installation, ensure the product is not damaged. Do not attempt to modify or repair the unit yourself, as this may cause electric shock or fire. The device should be installed in a location that receives direct sunlight to ensure optimal battery charging. Use the provided mounting template to drill holes at the correct spacing, insert the wall plugs, and secure the floodlight firmly to the wall. Ensure the installation height is between 1 and 3 meters for the best motion sensor performance.

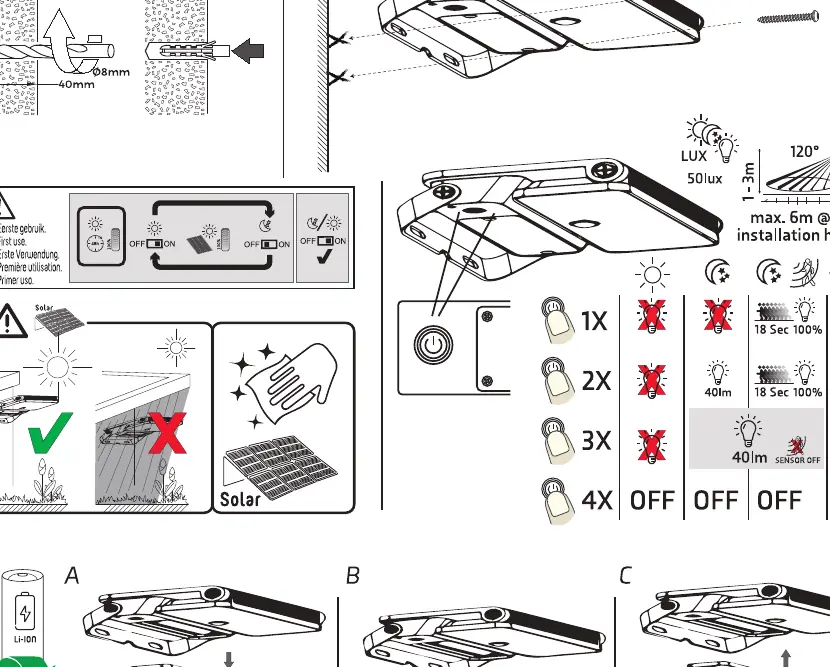

Operation Modes

The floodlight offers multiple operating modes controlled by the power button. Users can cycle through these settings to customize brightness and sensor behavior:

• Mode 1: 100% brightness for 18 seconds upon motion detection.
• Mode 2: 100% brightness for 18 seconds upon motion detection, with a 40lm dim light mode.
• Mode 3: Constant 40lm light output (sensor disabled).
• Mode 4: Off.

The motion sensor has a detection range of up to 6 meters with a 120-degree field of view.

Maintenance and Care

To maintain optimal performance, keep the solar panel clean and free of debris, dust, or snow. Use a soft, dry, or slightly damp microfiber cloth for cleaning. Do not use abrasive chemicals or detergents, as these can damage the surface of the light. If the light output decreases significantly, check if the solar panel is obstructed or if the battery requires replacement. The battery is a standard 18650 Li-ion type and can be replaced if necessary by opening the battery compartment.

Disposal and Environment

This product contains electronic components and a battery that must not be disposed of with household waste. Please follow local regulations for the recycling of electrical and electronic equipment. By disposing of this product correctly, you help prevent negative impacts on the environment and human health.
