Installation Guide for SJE Rhombus Rapid Set System
Quick installation guide for the SJE Rhombus Rapid Set System. Includes safety warnings, lifting instructions, and concrete pad anchoring requirements.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

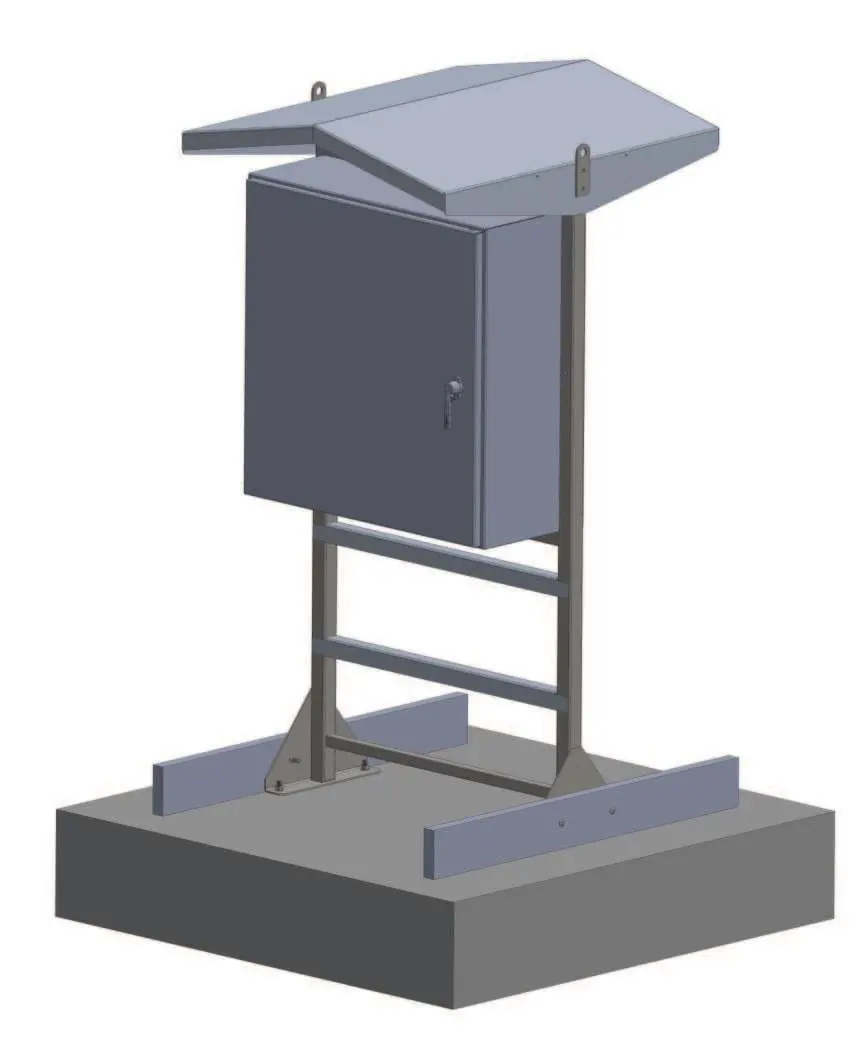

The SJE Rhombus Rapid Set System is a mounting solution for control panels. This document provides essential safety and installation procedures. Always ensure the area is clear of suspended loads during installation to prevent tip-over hazards.
Installation steps
Follow these steps to install the system safely:
- Lifting: Use a spreader bar attached to the lifting eyes. The combined maximum lifting eye capacity is 700 lbs.
- Placement: Position the Rapid Set unit onto the prepared concrete pad.
- Anchoring: Secure the unit to the concrete pad using 4 specified anchor bolts.
- Finishing: Remove the side wood stabilizers only after the unit has been securely anchored to the concrete.
Note: Some models do not include the sunshield.
Technical specifications
The installation requires specific hardware to ensure stability:
- Anchor Bolts: Use 0.5 inch diameter wedge anchors.
- Anchor Requirements: Must be ICC approved with a minimum tension capacity of 3000 lbs.
- Lifting Capacity: 700 lbs combined maximum.
Contact and support
For technical support, contact SJE Inc. at +1-800-746-6287 or via email at [email protected]. Additional information is available at www.csicontrols.com, www.primexcontrols.com, or www.sjerhombus.com.
Official resources from the manual
Practical help
Common problems
Tip over hazard
Keep the area clear of suspended loads during the lifting and positioning process.
Unstable mounting
Ensure all 4 anchor bolts are installed correctly into the concrete pad to meet the 3000 lbs tension capacity requirement.
Before use
- Verify the concrete pad is level and ready for installation.
- Ensure lifting equipment is rated for at least 700 lbs.
- Obtain 4 x 0.5 inch wedge anchors (ICC approved).
- Check if your specific model includes a sunshield.
Specs in practice
- Lifting Eye Capacity
- 700 lbs combined maximum load.
- Anchor Bolt Requirement
- 0.5 inch diameter wedge anchor with a minimum tension capacity of 3000 lbs.
Images and diagrams
- The manual includes a technical schematic on page 3 detailing dimensions and mounting points.
Model compatibility
- Some models do not include the sunshield.
