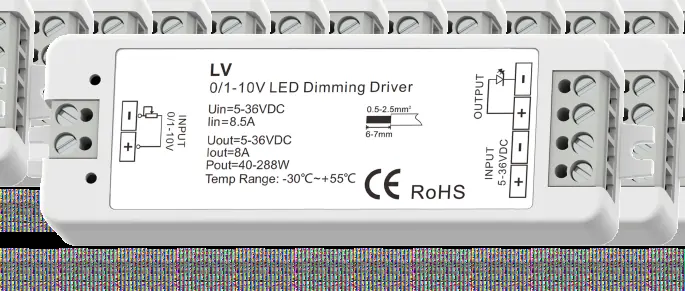

Skydance LV 0-1-10V LED Dimming Driver
Quick guide for the Skydance LV 0-1-10V LED Dimming Driver. Learn about installation, wiring, technical specifications, and compatibility for your LED lighting system.
Table of contents
Quick guide from the manual
The Skydance LV 0-1-10V LED Dimming Driver is designed to convert 0/1-10V signals into PWM constant voltage output for LED lighting. Before installation, ensure your power supply matches the 5-36VDC input requirement. The device supports a maximum of 50 drivers per dimmer, and the wiring distance between the dimmer and the driver should not exceed 50 meters to ensure signal integrity.
Product Overview
This driver features a single channel for 0/1-10V input and PWM constant voltage output. It utilizes a logarithmic dimming curve, which provides a smooth dimming experience that is comfortable for the human eye. It is compatible with both active and passive 0-10V, 1-10V, 10V PWM, and RX (4-in-1) dimming systems.
Technical Specifications
Input and Output:
- Input Voltage: 5-36VDC
- Input Current: 8.5A
- Output Voltage: 5-36VDC
- Output Current: 1 Channel, 8A
- Output Power: 40W/96W/192W/288W (depending on 5V/12V/24V/36V input)
- PWM Frequency: 500Hz
Environment and Safety:
- Operating Temperature: -30°C to +55°C
- Case Temperature (Max): +85°C
- IP Rating: IP20
- Protection: Reverse polarity and short circuit protection
Wiring and Installation
The device is designed for simple installation. Connect your 0/1-10V dimmer to the signal input terminals and your constant voltage power supply to the power input terminals. The LED strip connects to the output terminals. Ensure wires are stripped to 6-7mm for secure connection. The unit includes an installation rack for mounting.
Compatibility
The driver is compatible with commercially available rotary wall switches designed for 0/1-10V dimming equipment or dedicated system central dimming controllers. It is compliant with 0-10V, 1-10V, 10V PWM, and RX (4-in-1) standards.
Manufacturer information
Guangzhou Skydance Co., Ltd.
Practical help
Common problems
Dimming signal instability or failure
Ensure the total wire length from the dimmer to the LED driver does not exceed 50 meters.
Dimmer overload
Do not connect more than 50 LED drivers to a single 0/1-10V dimmer.
Before use
- Verify that the power supply provides a constant voltage between 5-36VDC.
- Ensure the LED strip is compatible with constant voltage PWM dimming.
- Check that the wire gauge used is between 0.5-2.5mm².
- Ensure the wire stripping length is 6-7mm for proper terminal contact.
- Confirm the dimmer type is compatible (0/1-10V, 10V PWM, or RX).
Specs in practice
- PWM Frequency: 500Hz
- The rate at which the LED is switched on and off to create the dimming effect; 500Hz is generally flicker-free.
- Logarithmic Dimming
- The dimming curve is adjusted to match human eye sensitivity, making the light change appear more natural.
Images and diagrams
- The wiring diagram shows the connection sequence: Dimmer -> Driver Input -> Power Supply -> Driver Power Input -> LED Strip.
- The mechanical structure diagram indicates the physical dimensions (97mm x 33mm x 18mm) and terminal locations.
Model compatibility
- Compatible with active or passive 0-10V and 1-10V dimmers.
- Supports 10V PWM and RX (4-in-1) dimming signals.
- Designed for single-color LED strips.
