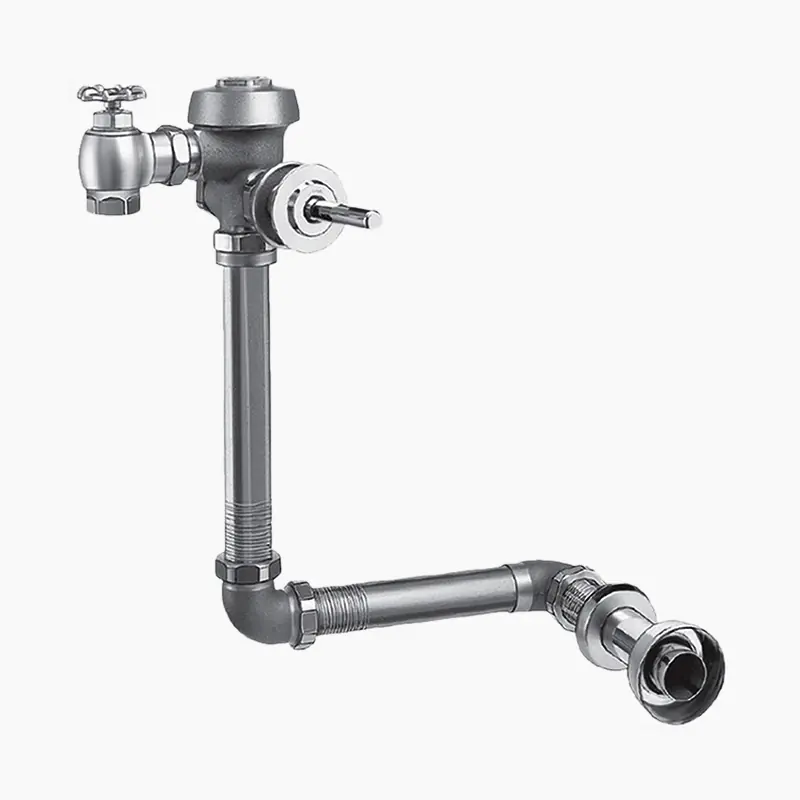

Sloan Royal 140-1.6-RB-WB-10-3/4-LDIM Manual Flushometer
Quick guide for the Sloan Royal 140-1.6-RB-WB-10-3/4-LDIM manual flushometer. Includes technical specifications, operating pressure requirements, and rough-in installation dimensions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides technical specifications and rough-in dimensions for the Sloan Royal 140-1.6-RB-WB-10-3/4-LDIM manual flushometer. It is intended for planning installation and verifying compatibility with existing plumbing fixtures.
Product Overview
The Royal 140 is a concealed manual water closet flushometer. Key features include:
- Flush Volume: 1.6 gpf (6.0 lpf).
- Valve Type: Diaphragm valve with PERMEX synthetic rubber diaphragm and dual filtered fixed bypass.
- Handle: ADA-compliant, non-hold-open handle to prevent excessive water usage.
- Technology: CID technology for flush accuracy and water efficiency.
- Durability: High copper, low zinc brass castings for dezincification resistance and a vandal-resistant stop cap.
Specifications
- Finish: Rough Brass (RB).
- Fixture Connection: Rear Spud.
- Supply Pipe: 1 inch (25 mm).
- Spud Coupling: 1.5 inch (38 mm).
- L Dimension: 10.75 inches (273 mm).
- Rough-in Dimension: 14.5 inches (368 mm).
Installation Rough-in
The unit requires specific wall openings for installation. Please note that the WB-1-A wall box is not included with this product and must be ordered separately. Refer to the rough-in diagram for the exact positioning of the supply pipe and fixture centerline.
Operating Requirements
The valve requires a flowing water pressure of 15-80 psi (103-552 kPa). Please note that specific fixtures may require a higher minimum flowing pressure; always consult the fixture manufacturer's requirements.
Practical help
Common problems
Wall box missing
The WB-1-A wall box is not included with this unit and must be ordered separately.
Insufficient flush pressure
Ensure water supply pressure is between 15-80 psi (103-552 kPa). Some fixtures may require higher minimum flowing pressure.
Before use
- Verify water supply pressure is within 15-80 psi.
- Confirm fixture type is a water closet with a rear spud connection.
- Ensure the required WB-1-A wall box is available if installing in a wall box configuration.
Images and diagrams

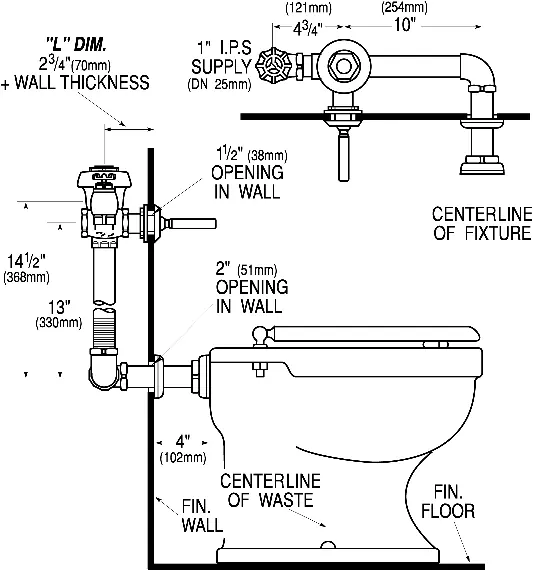

- The rough-in diagram illustrates the required wall openings (1.5 inch for spud, 2 inch for wall box) and the centerline positioning for the supply pipe and fixture.
Model compatibility
- Compatible with water closets featuring a rear spud connection.
- Requires WB-1-A wall box for concealed installations (sold separately).
