Sloan Royal 117-6.5-E-CP-H-B Flushometer User Guide
Quick guide for the Sloan Royal 117-6.5-E-CP-H-B manual flushometer. Includes technical specifications, operating pressure requirements, and installation rough-in dimensions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides technical specifications and installation rough-in dimensions for the Sloan Royal 117-6.5-E-CP-H-B manual flushometer. It is designed specifically for service sink applications. Ensure your water supply meets the required flowing pressure of 15-80 psi before installation.
Product Overview
The Royal 117-6.5-E-CP-H-B is an exposed manual service sink flushometer. It features a polished chrome finish and is constructed with high copper, low zinc brass castings for dezincification resistance. The unit utilizes a PERMEX synthetic rubber diaphragm with a dual-filtered fixed bypass for reliable performance.
Technical Specifications
- Flush Volume: 6.5 gpf (24.6 lpf)
- Valve Type: Diaphragm
- Fixture Connection: Top Spud
- Supply Pipe: 1 inch (25mm)
- Control Stop: 1 inch Straight
- Inlet: Back of valve
- Handle Placement: Front of valve
Operating Requirements
The valve requires a flowing operating pressure of 15-80 psi (103-552 kPa). Note that specific fixtures may require greater minimum flowing pressure; always consult the fixture manufacturer requirements to ensure proper operation.

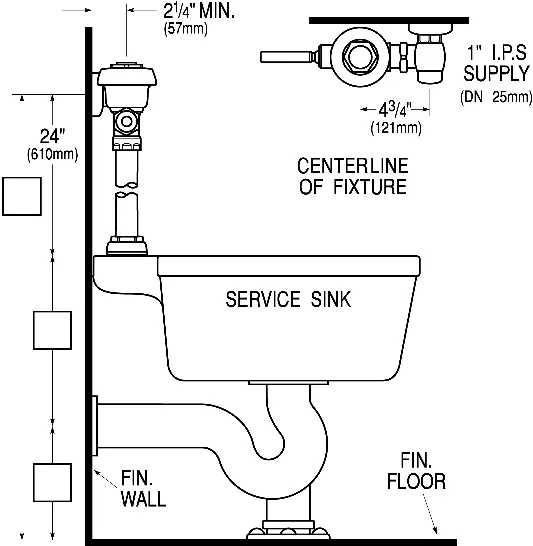

Installation Rough-in
The standard rough-in dimension is 24 inches (610mm). The supply line is 1 inch I.P.S. Ensure the installation complies with the provided line drawing dimensions, including the 2 1/4 inch (57mm) clearance from the wall to the centerline of the flushometer.
Compliance
The unit is ADA, BAA, and BABAA compliant. It meets the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2 standards.
Practical help
Before use
- Verify water supply pressure is between 15-80 psi (flowing).
- Ensure the fixture is a service sink with a top spud connection.
- Check that the supply pipe is 1 inch.
- Confirm the rough-in dimension is 24 inches.
Specs in practice
- Flush Volume
- 6.5 gallons per flush (24.6 liters per flush).
- Operating Pressure
- 15-80 psi (103-552 kPa) flowing pressure is required for proper operation.
- Rough-in Dimension
- The distance from the center of the supply inlet to the center of the fixture outlet, which is 24 inches.
Images and diagrams
- The rough-in drawing shows the required 24-inch vertical distance from the supply inlet to the fixture.
- The drawing indicates a 1-inch I.P.S. supply line connection.
- The diagram shows the 2 1/4-inch clearance required from the wall to the centerline of the flushometer.
Model compatibility
- Designed for service sink applications.
- Compatible with top spud fixtures.
