Sony E PZ 16-50mm F3.5-5.6 OSS II Operating Instructions

Product Overview

The Sony E PZ 16-50mm F3.5-5.6 OSS II is a compact, high-performance interchangeable lens designed exclusively for Sony E-mount cameras. It features a versatile zoom range and built-in optical image stabilization (SteadyShot) for clear, steady images.

Safety and Usage Precautions

• Sunlight Warning: Never leave the lens exposed to direct sunlight or bright light sources. Focused light can cause internal damage, smoke, or fire. Always attach lens caps when not in use.
• Handling: Do not hold the lens by its extended part. Internal components may rattle when shaken; this is normal and does not indicate a malfunction.
• Flash Usage: Depending on the lens and flash combination, the lens may partially block the flash, causing shadows. Adjust focal length or shooting distance if this occurs.
• Vignetting: Corners of the screen may appear darker than the center. Close the aperture by 1-2 stops to reduce this effect.

Installation

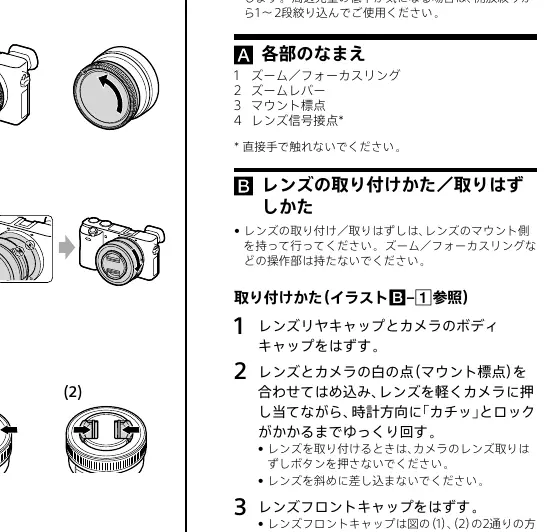

To attach the lens, align the white mounting index on the lens barrel with the white index on the camera body. Insert the lens and rotate it clockwise until it locks. To remove, press the lens release button on the camera and rotate the lens counterclockwise.

Zooming and Focusing

The lens offers two ways to zoom: using the zoom lever for smooth, quiet operation (ideal for video) or rotating the zoom/focus ring. Focusing can be performed via Auto Focus, Direct Manual Focus (DMF), or full Manual Focus. Refer to your camera's manual for specific focus mode settings.

Technical Specifications

• Focal Length: 16-50mm (24-75mm 35mm equivalent)
• Minimum Focus Distance: 0.25-0.3m
• Maximum Magnification: 0.215x
• Minimum Aperture: f/22-f/36
• Filter Diameter: 40.5mm
• Dimensions: Approx. 66 x 31.3mm
• Weight: Approx. 107g

Maintenance and Disposal

Keep lens contacts clean and avoid touching them. Clean the lens surface with a blower or soft brush. For disposal, follow local regulations for electronic waste to ensure environmentally friendly recycling.
