User Manual for Sunco 4 Inch LED Retrofit Baffle Downlight
Quick guide for the Sunco 4 Inch LED Retrofit Baffle Downlight (DL_BFDR4-11W). Includes installation steps, safety warnings, troubleshooting, and technical specifications.
Table of contents
Quick guide from the manual
This document provides installation and safety instructions for the Sunco 4 Inch LED Retrofit Baffle Downlight. Before beginning, ensure the circuit breaker is turned off. This fixture is suitable for damp locations but should not be directly exposed to water. It is not compatible with third-party sensors, photo controls, occupancy sensors, or timing devices.
What's in the box

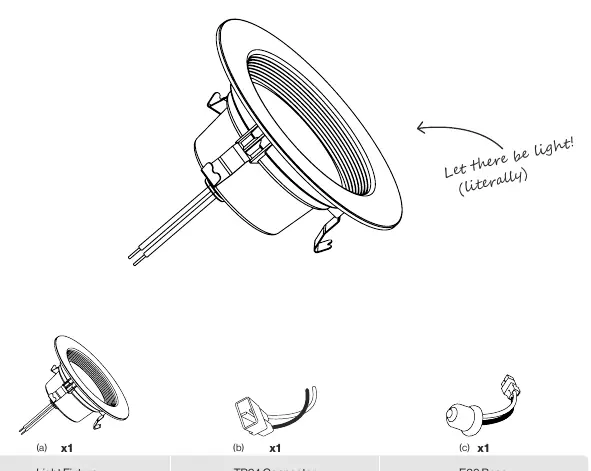

- Light Fixture
- TP24 Connector
- E26 Base
Installation Guide
Follow these steps to install your downlight:
- Preparation: Turn off the circuit breaker and remove the previous fixture. Allow it to cool if necessary.
- Connector Selection: Determine if your housing requires the TP24 Connector or the E26 Base.
- Connection: Connect the appropriate adapter to the lamp base connector in the housing. Tuck all wires securely into the can.
- Finalization: Line up the trim ring with the opening and push the downlight into the can until it is secure. Compression clips will hold it in place. Turn on the circuit breaker to test.
Specifications
- Voltage: 120V
- Wattage: 11W
- Lumens: 660 lm
- Average Lifetime: 50,000 Hours
- Moisture Rating: Damp Rated
- CRI: 90+
- Beam Angle: 90 degrees
Troubleshooting
If you encounter issues, check the following:
- Light not turning on: Verify connections and ensure the circuit breaker is not tripped.
- Flickering: Check wiring connections and ensure the circuit is not overloaded.
- Buzzing: Check for nearby electronic interference (TVs, radios, computers).
Practical help
Common problems
Light not turning on
Double check if the fixture is properly connected and the circuit breaker has not been tripped.
Light flickering
Check that fixture wiring connections are secure and ensure the circuit is not overloaded.
Fixture buzzing
Look for nearby interferences such as televisions, radios, or computers.
Light not dimming smoothly
Verify dimmer compatibility with the fixture.
Before use
- Turn off the circuit breaker before installation
- Verify compatibility with existing housing
- Check for shipping damage
- Ensure proper grounding
- Confirm the location is not directly exposed to water
Specs in practice
- Moisture Rating
- Damp Rated
- Average Lifetime
- 50,000 Hours
Images and diagrams
- The manual includes a diagram showing the TP24 and E26 connectors.
- Installation steps are illustrated showing the connection process and insertion into the housing.
Model compatibility
- Not compatible with 3rd party sensors
- Not compatible with photo controls
- Not compatible with occupancy sensors
- Not compatible with timing devices
