User Guide for Tc Electronic Skysurfer Mini Reverb Pedal
Quick start guide for the Tc Electronic Skysurfer Mini Reverb pedal, covering controls, connections, technical specifications, and safety instructions.
Table of contents
Quick guide from the manual
The Skysurfer Mini Reverb is a compact digital reverb pedal for guitar. This guide provides essential information on connecting the device, understanding its controls, and operating it safely. The pedal features true bypass, ensuring your guitar signal remains unaffected when the effect is not engaged.
Controls
- OUT: Connect to other pedals or a guitar amplifier using a 1/4 inch cable.
- 9 V DC: Connect a standard 9 V power supply (not included).
- IN: Connect your guitar using a 1/4 inch cable.
- REVERB: Adjusts the length of the reverb decay.
- LED: Indicates when the pedal is engaged.
- MIX: Adjusts the wet/dry mix; turning clockwise increases the reverb effect.
- TYPE: Selects the reverb model: Spring, Plate, or Hall.
- TONE: Adjusts the brightness of the reverb.
- FOOTSWITCH: Engages or bypasses the pedal.

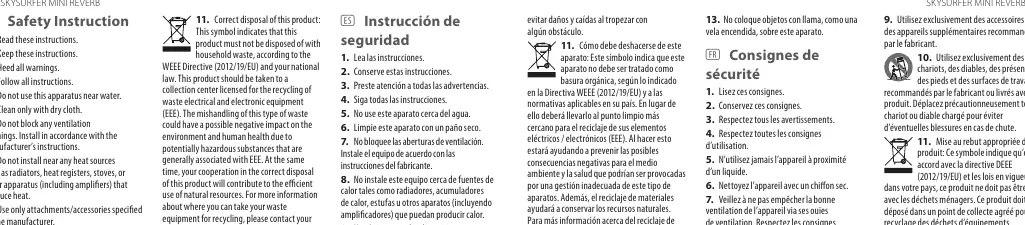

Safety and Installation
To ensure safe operation, follow these guidelines:
- Do not use the device near water.
- Clean only with a dry cloth.
- Do not block ventilation openings.
- Do not install near heat sources such as radiators or amplifiers.
- Use only accessories specified by the manufacturer.
- Do not install in confined spaces like bookshelves.
- Do not place open flame sources, such as candles, on the device.
Technical Specifications
- Input: 1/4 inch TS, unbalanced, impedance >350 kΩ.
- Output: 1/4 inch TS, unbalanced.
- Power Input: Standard 9 V DC, center negative, 100 mA.
- Dimensions: 99 x 57 x 56 mm (3.9 x 2.2 x 2.2 inches).
- Weight: 0.29 kg (0.64 lbs).
Manufacturer information
TC Electronic
Practical help
Common problems
No sound or signal
Check that the 9 V DC power supply is connected and the pedal is engaged (LED on). Ensure cables are securely connected to IN and OUT jacks.
Reverb effect is too subtle or too strong
Adjust the MIX knob clockwise for more reverb or counter-clockwise for less.
Before use
- Ensure you have a standard 9 V DC center-negative power supply (not included).
- Use 1/4 inch TS cables for guitar and amplifier connections.
- Verify the pedal is placed on a stable surface or pedalboard.
- Ensure the area is dry and well-ventilated.
Specs in practice
- 9 V DC, center neg
- Requires a standard guitar pedal power supply with a negative center pin.
Images and diagrams
- The top panel features the OUT and IN jacks for signal routing and the 9 V DC power input.
- The main interface includes three knobs (REVERB, MIX, TONE), a TYPE selector switch, and a central FOOTSWITCH.
Model compatibility
- Compatible with standard 9 V DC power supplies.
- Designed for use with standard 1/4 inch instrument cables.
