User manual for TOTAL Rotary Hammer 1500W

Quick guide from the manual

This document provides essential safety, operation, and maintenance instructions for the TOTAL Rotary Hammer 1500W. Always read the full safety warnings before use. The machine is designed for impact drilling in concrete, brick, and stone, and is also suitable for non-impact drilling in wood, metal, ceramics, and plastic.

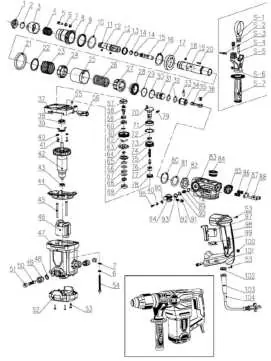

Product description

The rotary hammer features the following components:

• 1. Spare chuck
• 2. Drill chuck
• 3. Dust cap
• 4. Lock sleeve
• 5. Auxiliary handle
• 6. Unlock button
• 7. Operating mode selection switch 1
• 8. Operating mode selection switch 2
• 9. ON/OFF switch

Technical data

• Power: 1500W
• Voltage: 220-240V~50/60Hz
• No load speed: 850/min
• Impact rate: 4400/min
• Energy: 5.5J
• Concrete drilling capacity: 32mm
• Steel drilling capacity: 13mm
• Wood drilling capacity: 42mm

Safety instructions

General Safety: Keep the work area clean and well-lit. Do not use in explosive atmospheres. Keep children and unauthorized persons away.

Electrical Safety: Ensure the plug matches the outlet. Do not modify the plug. Avoid contact with grounded surfaces. Do not expose the tool to rain or wet conditions. Use an RCD-protected supply in damp locations.

Personal Safety: Always wear eye protection, a dust mask, non-slip safety shoes, and hearing protection. Avoid loose clothing or jewelry. Ensure the switch is in the OFF position before connecting to power.

Medical Warning: This tool produces an electromagnetic field that may interfere with active or passive medical implants. Consult a physician before use.

Setup and operation

Before using: Check the work area for hidden power lines, gas, or water pipes using a metal detector. Ensure the supply voltage matches the nameplate.

Changing bits: Pull the locking sleeve back and hold it while inserting or removing the bit. Ensure the dust cap is not damaged during this process.

Operating modes:

• Hammer drill mode: Turn the mode dial and switch to the hammer drill setting.
• Chisel mode: Turn the mode selector switch and then the switch to the chisel setting.
• Drill mode: Turn the mode selector switch and then the switch to the drill setting.

Note: When changing operating modes, turn the ON/OFF switch slightly.

Maintenance

• Sharpening: Sharpen chiseling tools regularly on a grinding wheel with a constant supply of water.
• Cleaning: Keep the machine and ventilation slots clean. Clean the tool holder daily.
• Dust cap: Replace damaged dust caps immediately to prevent dust from entering the chuck and causing tool errors.

Environment

Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Plastic components are labeled for categorized recycling.
