User Manual for Total 1800W High Pressure Washer
Comprehensive user guide for the Total 1800W High Pressure Washer. Includes assembly instructions, operation procedures, maintenance tips, troubleshooting, and safety guidelines.
Quick answers from the manual
Quick answer
- To start the Total 1800W High Pressure Washer, assemble the handle and hoses, connect the water supply, purge the air by running the gun trigger until water flows without bubbles, and then turn on the power switch. p. 7, 8
Key actions
- Purging the device p. 7
- Cleaning the nozzle p. 11
First start
- Assemble loose parts, connect water and power, purge air from the system, and then operate. p. 6, 7
Problems and fixes
Machine does not start
Plug in machine, try another plug, replace fuse, or try without extension cord.
p. 12Maintenance and reset
- Regularly clean the screen of the water connection and the nozzle. p. 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 220-240V | Operating voltage | p. 6 |
| Power | 1800W | Motor power | p. 6 |
| Nominal pressure | 100bar | Standard operating pressure | p. 6 |
Where to find it in the PDF
- Security instructions p. 2, 3, 4
- Product description p. 5
- Technical data p. 6
- Operation and commissioning p. 6, 7, 8, 9
- Maintenance and storage p. 10, 11
- Problem solving p. 12
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This pressure washer is designed for cleaning vehicles, buildings, terraces, and garden equipment using clean water and authorized detergents. Before use, ensure the machine is placed on a flat surface and connected to a stable power and water supply. Always purge the device of air before operation to prevent pump damage. Wear appropriate personal protective equipment (PPE) including safety glasses and gloves during use.
Product description

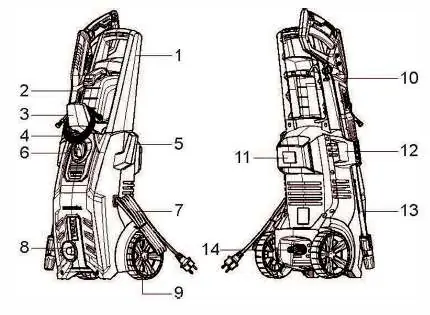

The unit features a handle, detergent bottle, high-pressure hose holder, ON/OFF switch, water inlet/outlet, and wheels. The spray gun and lance are the primary tools for cleaning. Refer to the exploded view for specific part identification.
Assembly and commissioning
Before commissioning, assemble the loose parts:
- Install the handle.
- Attach the high-pressure hose bracket.
- Connect the spray lance to the spray gun and rotate to lock.
- Connect the high-pressure hose to the spray gun and the water outlet of the machine.
- Connect the garden hose to the water inlet using the provided adapter.
Purging the device: Before operation, turn the machine on, unlock the spray gun trigger, and push the lever until water flows without bubbles. This ensures the pump is primed.
Operation
High pressure operation: Keep a distance of at least 30 cm when cleaning painted surfaces. Hold the spray gun with both hands to manage kickback. The machine features an automatic pressure switch that stops the pump when the trigger is released.
Use with detergent: Detergent can only be added in low-pressure mode. Fill the detergent bottle, attach it, and spray sparingly on the surface. Let it react, then rinse with high pressure.
Maintenance and storage
Cleaning: Regularly clean the water connection strainer and the nozzle using the provided needle tool. Remove any dirt from the nozzle mouth.
Storage: Drain the machine completely before storage to prevent frost damage. Store in a frost-free place between 10ºC and 30ºC. Disconnect the water supply and separate the spray lance from the gun before storing.
Safety
Never direct the water jet at people, animals, live electrical equipment, or the machine itself. Do not use the machine with flammable or toxic liquids. Ensure the water supply is protected by a system separator if connecting to the drinking water network.
Practical help
Common problems
Machine does not start
Check if the machine is plugged in, try another outlet, replace the fuse, or remove the extension cord.
Fluctuating pressure
Check that hoses and connections are airtight; clean or replace valves and pump seals.
Machine stops during operation
Check mains voltage, let the washer cool down for 5 minutes, or clean the nozzle.
No water comes out
Check for frozen components, ensure water supply is connected, or clean the filter and nozzle.
Before use
- Check that the power cord and plug are undamaged.
- Ensure all metal fasteners are tight.
- Verify the high-pressure hose and spray gun are in good condition.
- Connect the water supply and purge air from the system.
- Wear safety glasses and gloves.
- Ensure the machine is on a stable, flat surface.
Specs in practice
- Nominal pressure
- The standard operating pressure of 100bar (1450psi).
- Allowable pressure
- The maximum pressure the system can handle, 150bar (2200psi).
- Degree of protection
- IPX5, indicating protection against water jets.
Images and diagrams

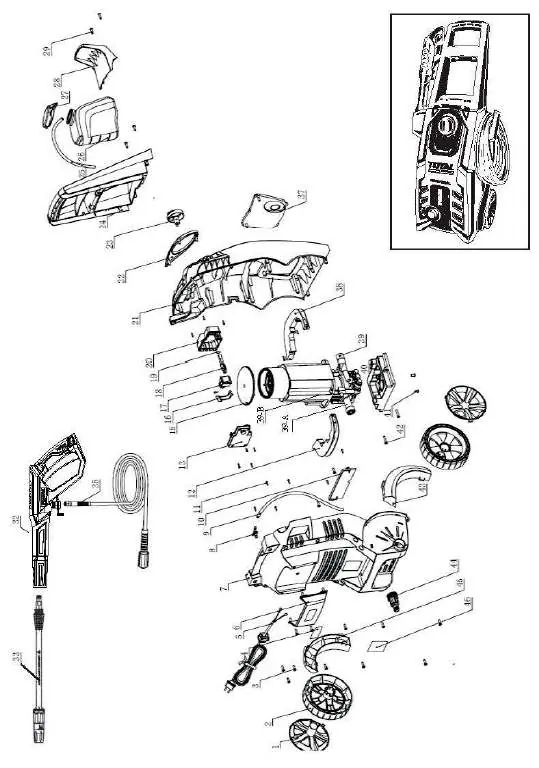

- Exploded view shows the internal components and assembly order for maintenance.
- Assembly diagrams illustrate the connection of the handle, hose bracket, and water hoses.
- Cleaning diagrams show how to remove the strainer and clean the nozzle.
Model compatibility
- Use only manufacturer-recommended high-pressure hoses and accessories.
- Do not connect directly to the public drinking water network without a system separator.
- Use only biodegradable chemical detergents authorized by the manufacturer.
