Total 1050W Impact Wrench User Manual
Quick guide for the Total 1050W Impact Wrench. Includes safety instructions, technical specifications, operating procedures, tightening torque charts, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential safety and operating instructions for the Total 1050W Impact Wrench. Before using the tool, ensure the power supply voltage matches the specifications on the machine nameplate. Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and a dust mask. Keep the work area clean and well-lit, and ensure the tool is unplugged before performing any assembly or adjustments.
Product description
The impact wrench consists of the following main components:
- Chuck
- Drill bit
- Switch ON/OFF (counterclockwise)
- Switch ON/OFF (clockwise)
- Handle
- Power cord
Assembly and adjustment
Before assembly or adjustment, always unplug the tool. To change the bit, slide the application tool into the square of the tool holder. Ensure the bit is firmly seated in the collet or chuck; if it is not firmly connected, it can become loose and uncontrollable during operation.
Instructions for use
Always observe safety instructions and applicable regulations during operation.
- Direction of rotation: To operate clockwise, press the bottom of the ON/OFF switch and hold it down. To operate counter-clockwise, press the top of the ON/OFF switch and hold it down.
- Power on/off: Press the ON/OFF switch to turn the machine on and hold it down. Release the switch to turn the machine off.
- Storage: When not in use, turn the tool off and unplug it from the power source.
Maintenance and technical data

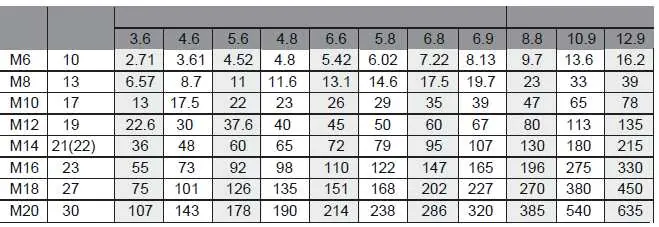

For safe and proper operation, keep the ventilation slots clean. The appliance should only be serviced by qualified persons. The manual includes a reference table for maximum screw/bolt tightening torques based on property classes (DIN267). Do not dispose of the tool with household waste; use separate collection facilities for electrical appliances.
Technical Specifications:
- Power: 1050W
- Voltage: 220-240V~50/60Hz
- No load speed: 2300/min
- Max. Torque: 550Nm
- Tool holder: 1/2 inch
- Screw size: M6-M24
Practical help
Common problems
Tool does not start
Check if the power cord is properly plugged in and the power supply matches the voltage on the nameplate.
Bit becomes loose during operation
Ensure the bit is firmly seated in the square of the tool holder before starting.
Unexpected tool behavior
Stop use immediately if the tool is damaged or modified, as this may result in unpredictable behavior.
Before use
- Check that the power supply voltage matches the machine nameplate.
- Ensure the switch is in the OFF position before plugging in.
- Wear safety glasses, hearing protection, and a dust mask.
- Verify the bit is firmly seated in the tool holder.
- Ensure the work area is clean and well-lit.
Images and diagrams

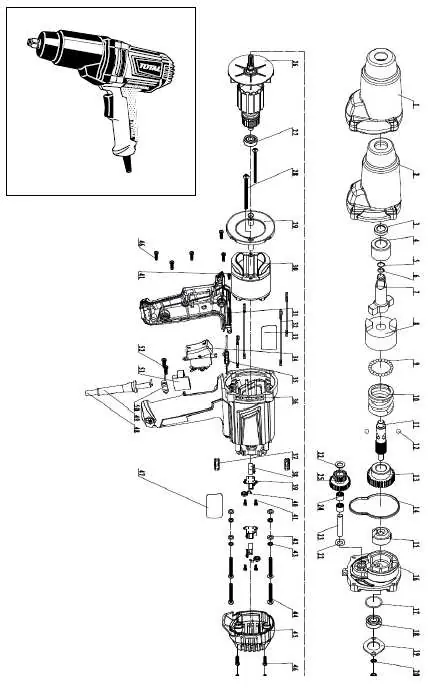

- The exploded view diagram illustrates all internal components for maintenance and repair purposes.
- The switch diagram clarifies the top and bottom positions for clockwise and counter-clockwise rotation.
