Truper 17043-03-PATHS Fall Protection Harness
Quick guide for the Truper 17043-03-PATHS fall protection harness. Learn about safe fall distance calculation, component inspection, proper connection points, and maintenance procedures.
Table of contents
Quick guide from the manual
The Truper 17043-03-PATHS is a fall protection harness designed for work at heights. The maximum weight capacity is 140 kg. Users must be trained in fall protection and rescue procedures before use. Always calculate the safe fall distance before starting work, ensuring there is sufficient clearance to prevent striking the ground or obstructions.
Components of the fall protection system
- D-rings: Used for connecting the harness to the fall arrest system.
- Webbing: The main straps that secure the user.
- Snap hooks: Used for connecting to anchor points.
Fall protection functional categories
- Fall Arrest: Designed to stop a fall.
- Positioning: Allows the user to work with both hands free while supported.
- Rescue: Used in confined spaces or where a fall may occur.
General precautions and inspection
Before each use, inspect the equipment thoroughly:
- Check webbing for cuts, tears, fraying, or chemical damage.
- Ensure snap hooks are not damaged, distorted, or corroded.
- Verify that all D-rings are intact and not deformed.
- Ensure all buckles and fasteners are fully closed and secure.
- Do not use the equipment if it has been subjected to a fall or shows signs of wear.
Maintenance
Proper maintenance extends the life of the equipment:
- Clean the harness with water and a mild detergent.
- Air dry away from direct sunlight or heat sources.
- Lubricate snap hooks with light lubricating oil if necessary.
- Store in a cool, dry place, away from chemicals, heat, and sharp objects.
Manufacturer information
TRUPER, S.A. DE C.V.
Practical help
Common problems
Webbing shows signs of fraying, cuts, or chemical damage
Remove the harness from service immediately and destroy it.
Snap hooks do not close or lock properly
Do not use the equipment; inspect for debris or deformation and replace if necessary.
D-rings are deformed or corroded
Remove from service immediately as the structural integrity is compromised.
Before use
- Verify the user weight is within the 140 kg limit.
- Inspect all webbing for cuts, tears, or burns.
- Check that all snap hooks function and lock correctly.
- Ensure all D-rings are free of deformation or corrosion.
- Confirm that the fall clearance distance is sufficient for the work area.
- Ensure the harness is properly fitted and adjusted to the user.
Specs in practice
- Maximum Weight Capacity
- 140 kg (310 lbs). Do not exceed this limit.
Images and diagrams

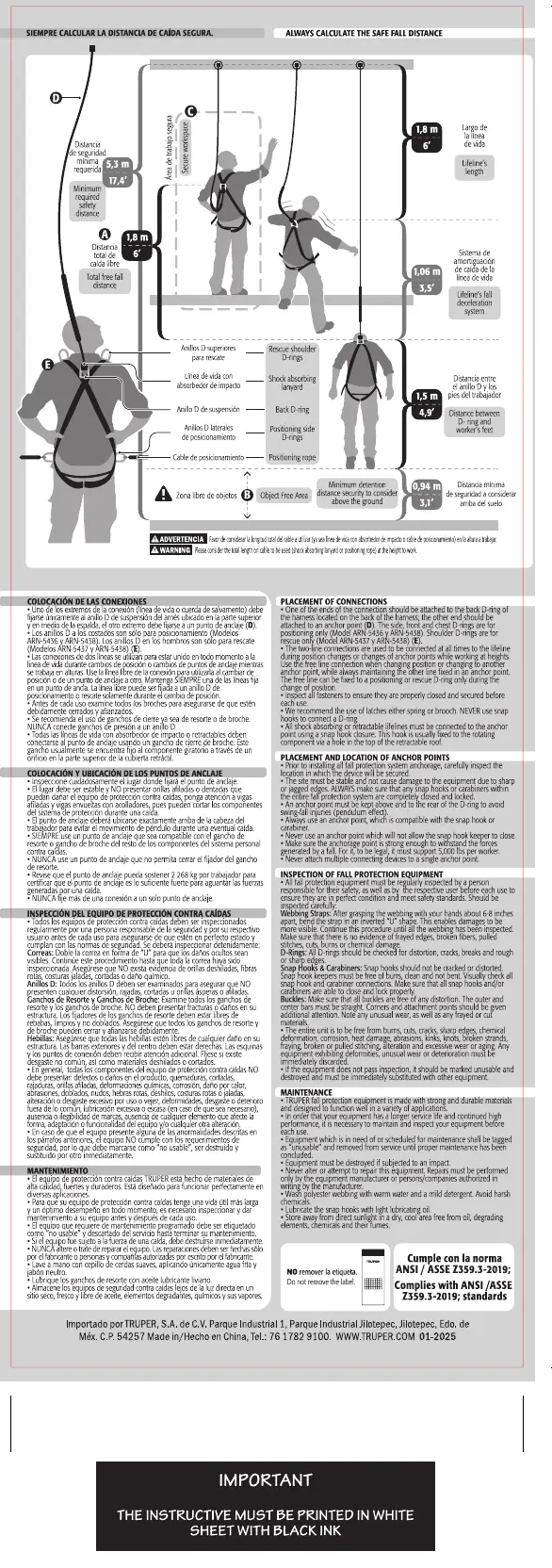

- The diagram illustrates the calculation of the total safe fall distance.
- It accounts for the free fall distance, the length of the deceleration system, and the distance to the ground.
- It highlights the correct placement of D-rings for different types of connections.
Model compatibility
- Designed for use with compatible fall arrest systems.
- Not for use in environments with extreme heat, chemicals, or sharp edges without additional protection.
