User Guide for VEVOR 1206HB-5201 DC Motor Controller
Quick start guide for the VEVOR 1206HB-5201 DC Motor Controller, including wiring diagrams, technical specifications, and safety precautions for installation and operation.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential information for the VEVOR 1206HB-5201 DC Motor Controller. It is designed for use with 48V 250A systems, specifically compatible with Curtis 1206HB-5201 and EZGO Curtis TXT 48V 250A motor controllers. Users must read all instructions carefully before operation to ensure safety and prevent damage.
Device Description
The controller utilizes Power MOSFET technology for reliable, silent, and efficient operation. It features regenerative braking down to zero speed and overdrive braking to limit speed when traveling downhill. The system integrates with a Hall effect speed sensor on the motor or drive system to control the vehicle.
Installation and Operation
The controller is designed for easy installation and direct replacement of older units. Ensure the controller is securely fixed and protected from excessive vibration or impact. After releasing the pedal and stopping the vehicle, it is recommended to turn off the main contactor at regular intervals.
Wiring Diagram
The manual provides a detailed wiring diagram showing connections for the battery (48V), main contactor, precharge resistor, speed sensor, pedal, and personality select switches. Please refer to the provided diagram for precise terminal and wire color identification.
Safety and Maintenance
- High Voltage Warning: The controller case contains high-voltage components. Do not disassemble the unit without authorization.
- Compliance: This device complies with Part 15 of the FCC Rules.
- Disposal: This product is subject to European Directive 2012/19/EC and must be disposed of at a designated collection point for electrical and electronic waste.
- Liability: The manufacturer does not bear responsibility for losses caused by failure to operate the device according to the provided instructions.

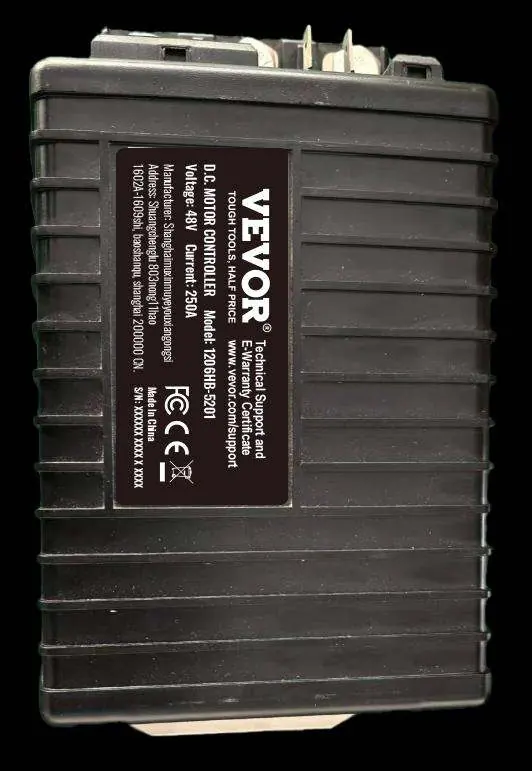

Technical Specifications
- Model: 1206HB-5201
- Voltage: 48V
- Current: 250A
Manufacturer information
VEVOR
Practical help
Common problems
Controller not functioning or vehicle not moving
Check all wiring connections against the provided diagram, ensure the main contactor is engaged, and verify the battery voltage is 48V.
Unauthorized disassembly
Do not open the controller case; it contains high-voltage components and unauthorized tampering voids responsibility and safety.
Before use
- Verify the model number is 1206HB-5201.
- Ensure the controller is securely mounted to prevent vibration damage.
- Check that the battery system is 48V.
- Inspect all wiring connections for tightness and correct placement.
- Ensure the vehicle is in a safe state before testing.
Specs in practice
- Current: 250A
- The maximum continuous current capacity of the controller.
Images and diagrams

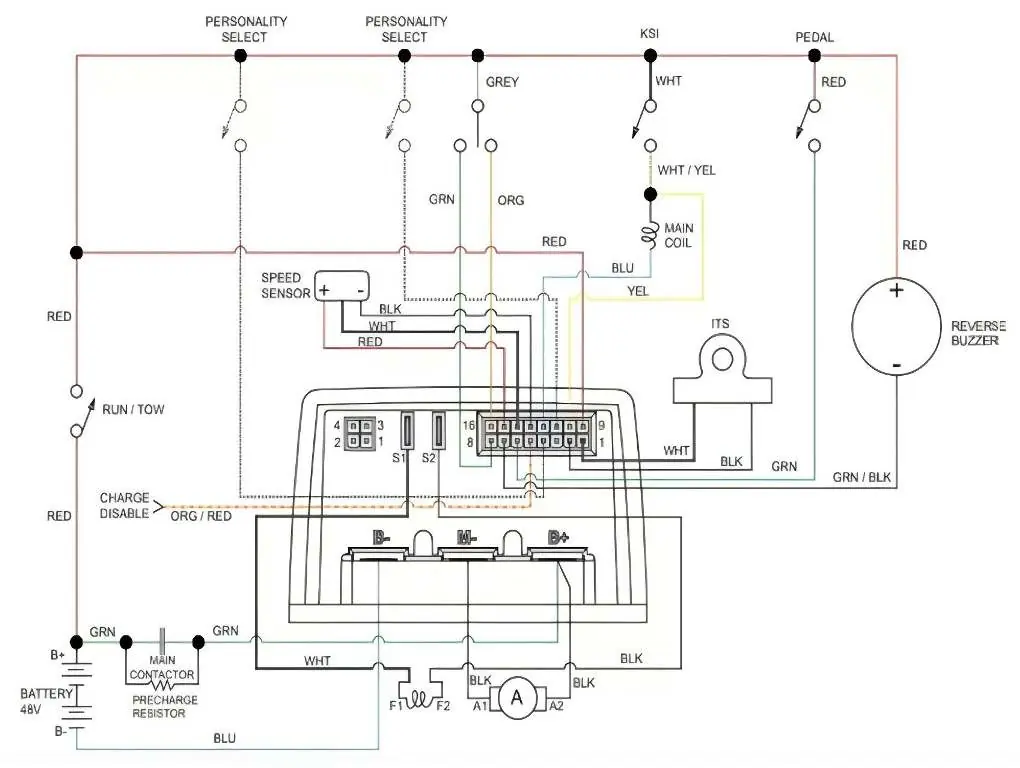

- The wiring diagram illustrates the connections for the 48V battery, main contactor, and precharge resistor.
- It shows the interface for the speed sensor, pedal input, and personality select switches.
- The diagram identifies the terminal connections (B+, B-, M-, A1, A2) for the motor and battery.
Model compatibility
- Designed to fit 1206HB-5201 Curtis Controller 48V 250A.
- Compatible with EZGO for Curtis TXT 48V 250A DC motor controllers.
