Vevor 038-MDA Wire Stripping Machine Instruction Manual
Quick guide for the Vevor 038-MDA wire stripping machine, covering safety precautions, technical specifications, operation instructions, and troubleshooting steps for efficient wire processing.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the safe and effective operation of the Vevor 038-MDA wire stripping machine. Key requirements include using the correct feeding hole for the wire diameter and ensuring the blade is properly aligned with the roller to prevent damage to the copper core. Note that this machine is not suitable for silicone rubber or armored cables.
Safety precautions
- Read all instructions before operating the machine.
- Do not immerse the motor housing in water or other liquids.
- Keep children away from the machine; it is not a toy.
- Always unplug the machine when not in use, before cleaning, or when removing/installing parts.
- Avoid contact with moving parts and never touch the blade directly.
- Do not operate the machine if the cord or plug is damaged.
- Never leave the machine running unattended.
- Do not use the machine outdoors.
Technical parameters
- Model: 038-MDA
- Dimensions: 480 x 165 x 310 mm
- Weight: 15.5 kg
- Power: 60 W
- Stripping range: 1 mm to 25 mm diameter
- Voltage: 220V-240V 50Hz or 110V 60Hz
Operation instructions
- Select the appropriate feeding hole on the front panel based on the diameter of the wire being stripped.
- Ensure the center of the blade is collinear with the center of the roller.
- Adjust the distance between the blade and the rolling shaft using the M12 plastic handle screw. The goal is to cut the wire insulation without damaging the internal copper core.
Troubleshooting
If the machine fails to strip the wire effectively, check the following:
- Wire diameter: Ensure the wire is not too small for the selected hole.
- Alignment: Verify that the center of the blade is aligned with the center of the rolling shaft. If not, remove the side shields and use a wrench to adjust the screw on the center adjustment block.
- Blade sharpness: If the blade is dull, it must be replaced according to the maintenance procedures.
Environmental protection
This product is subject to European Directive 2012/19/EC. It must not be disposed of with household waste and should be taken to an authorized electrical and electronic equipment collection point for recycling.
Manufacturer information
VEVOR
Practical help
Common problems
Machine does not strip the wire
Check if the wire diameter is too small for the selected hole or if the blade is not aligned with the roller center.
Blade is not cutting properly
Adjust the M12 plastic handle screw to change the blade height or replace the blade if it has become dull.
Before use
- Ensure the machine is placed on a stable surface.
- Check that the power cord and plug are undamaged.
- Verify the wire type is not silicone rubber or armored.
- Select the correct feeding hole for the wire diameter.
- Ensure the blade is aligned with the roller.
Specs in practice
- Stripping range (1-25mm)
- The range of wire diameters the machine is designed to process.
Images and diagrams

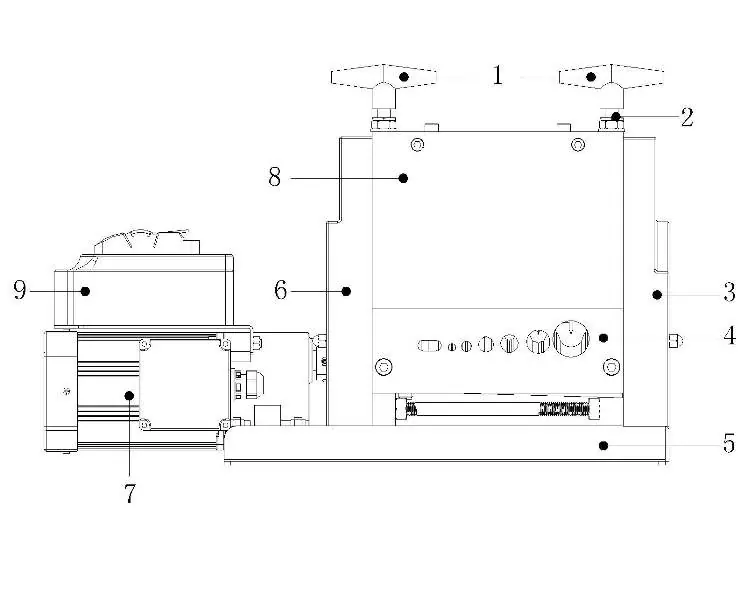

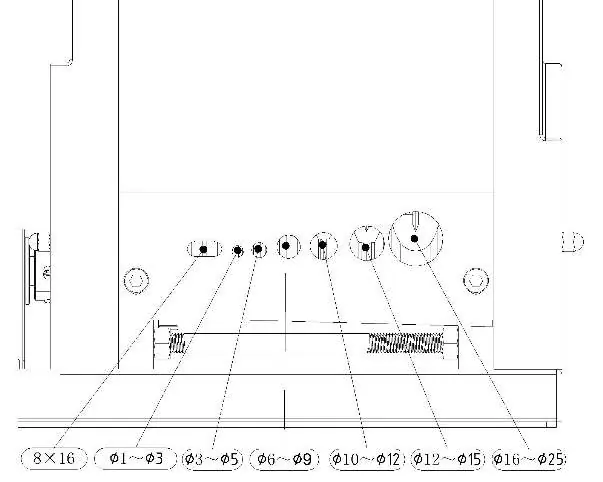

- The front panel features multiple holes of varying sizes for different wire diameters.

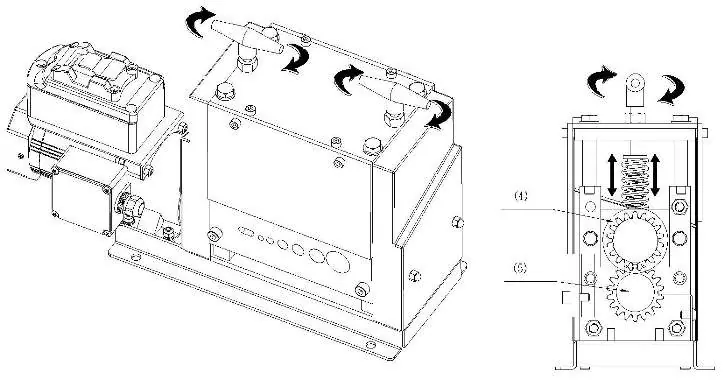

- The M12 plastic screw on top controls the vertical position of the blade.

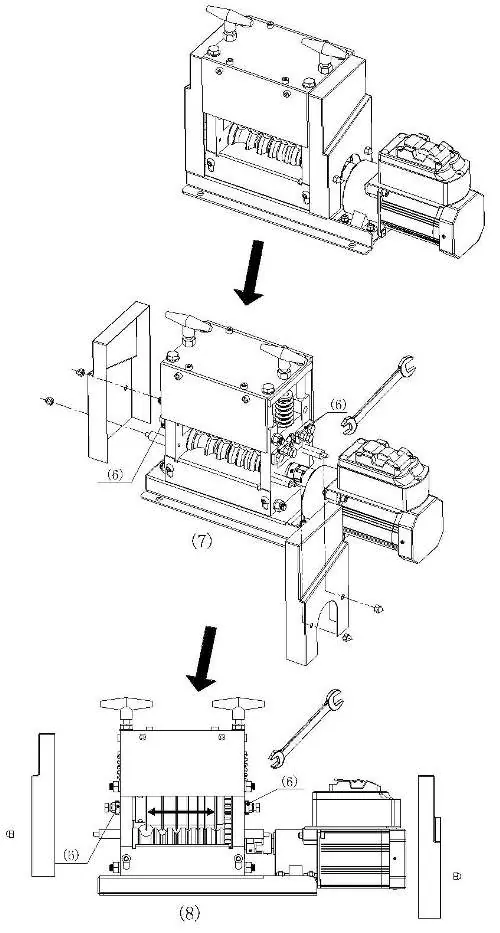

- Side shields must be removed to access the center adjustment block for blade alignment.
Model compatibility
- Not compatible with silicone rubber cables.
- Not compatible with armored cables.
