Technical Guide for Viessmann Vitodens 050-W and 100-W Gas Condensing Boilers
Comprehensive technical guide for Viessmann Vitodens 050-W and 100-W gas condensing boilers. Includes installation requirements, system specifications, control unit functions, and accessory details.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This technical guide provides essential information for the installation, operation, and maintenance of Viessmann Vitodens 050-W and 100-W gas condensing boilers. It covers system specifications, installation accessories, and control unit configurations. Always ensure installation is performed by a registered contractor and complies with local regulations.
Product overview
The Vitodens 050-W and 100-W are wall-mounted gas condensing boilers featuring the Inox-Radial stainless steel heat exchanger and MatriX-Plus burner with Lambda Pro combustion controller. They are designed for high efficiency, quiet operation, and long service life. Both models are suitable for natural gas and LPG, and can operate with a hydrogen blend of up to 20% by volume.
Installation and siting
Boilers must be installed in frost-free locations. For open flue operation, ensure adequate ventilation. For room-sealed operation, the boiler can be installed in various locations, including living spaces. Maintain minimum clearances for maintenance: 700 mm in front of the boiler. Electrical equipment in wet rooms must comply with VDE 0100 safety zones.
Hydraulic and gas connections
Gas installations must be carried out by a registered gas fitter. The system requires a thermally activated safety shut-off valve. For hydraulic connections, ensure the system is sealed against corrosion. Use of chemical anti-corrosion agents is generally not necessary if the system is designed correctly. Always install a condensate drain with a constant fall and a stench trap.
Control unit and accessories
The control unit is integrated into the boiler and supports weather-compensated operation, constant operation, or OpenTherm control. It features a digital time switch and connectivity via WiFi (on supported models). Various accessories are available, including Vitotrol room thermostats, outside temperature sensors, and cylinder demand junction boxes.
Water quality and maintenance
The quality of fill and top-up water is critical to prevent damage. Follow VDI 2035 guidelines regarding water hardness and pH levels. Annual maintenance is recommended to check the entire system, including filters, dirt traps, and the condensate drain. If using plastic pipes in heating circuits, ensure they are oxygen-impermeable.
Manufacturer information
Viessmann Climate Solutions
Practical help
Common problems
Reverse flow of flue gas
Ensure extractors (hoods, fans) do not create negative pressure; install an interlock circuit if necessary.
Electrolytic corrosion in existing installations
Ensure the system is designed to prevent corrosion; protective layers usually form on pipes, but avoid mixing incompatible materials.
Condensate drain issues
Ensure a constant fall in the drain pipe and that a stench trap is installed to prevent flue gas escape.
Before use
- Verify gas supply pressure matches boiler requirements.
- Ensure the flue system is correctly installed and tested.
- Check that water quality meets VDI 2035 standards.
- Confirm electrical connections comply with local regulations.
- Ensure the condensate drain is properly connected and has a stench trap.
Specs in practice
- Rated heating output (kW)
- The range of heat output the boiler can provide, depending on the specific model and operating conditions.
- IP rating (e.g., IP X4)
- Indicates the level of protection against water ingress; IP X4 means splash-proof.
- Gas supply pressure (mbar/kPa)
- The required pressure for the gas supply to ensure safe and efficient combustion.
Images and diagrams

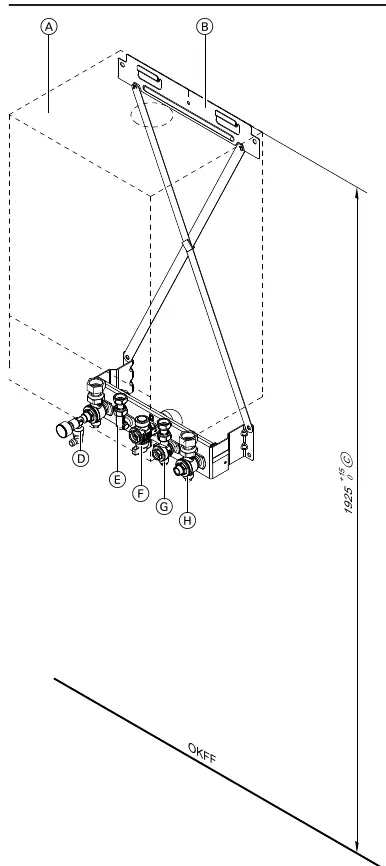

- Installation diagrams show the correct positioning of pre-plumbing jigs and valves.

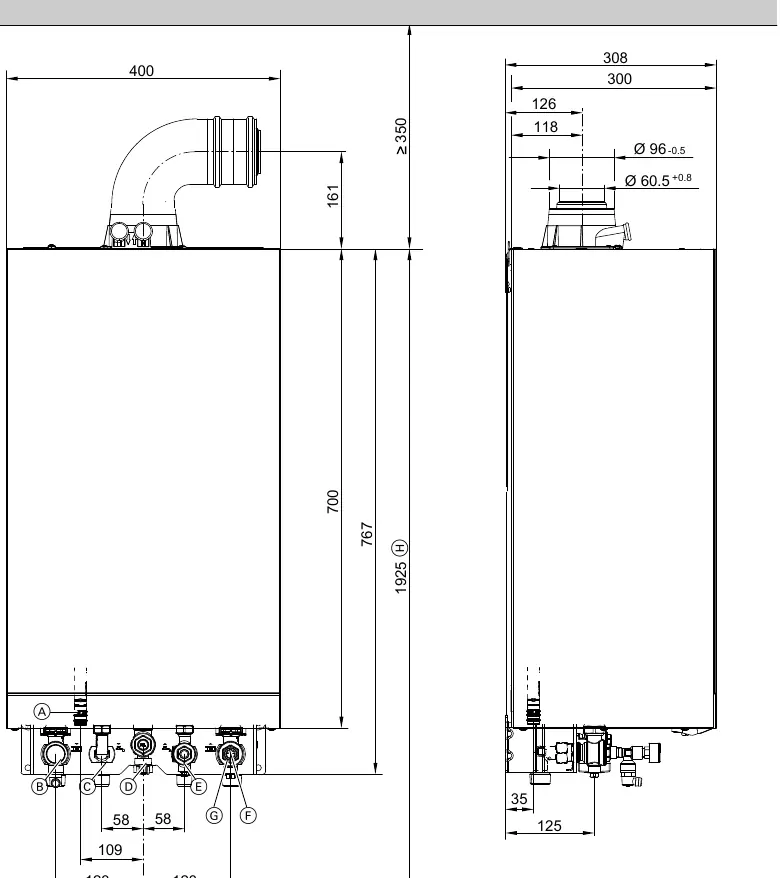

- Flue gas connection diagrams detail the required dimensions and clearances.
- DHW cylinder diagrams illustrate the correct piping for heating flow, return, and cold water connections.
Model compatibility
- Vitodens 050-W and 100-W are compatible with specific Vitocell 100-W DHW cylinders.
- Adaptors are available for replacing older third-party boilers (e.g., Pendola, Vitopend, Thermoblock) with Vitodens models.
Manual page author
Michael Turner
Technical manual editor
Reviews PDF manuals for structure, safety notes, and practical product details so readers can find the right information quickly.
