Vivere 10SPAS-1 Solid Pine Hammock Stand User Manual

Quick guide from the manual

The Vivere 10SPAS-1 Solid Pine Hammock Stand is designed for outdoor use. Key operational requirements include a maximum weight capacity of 205 kg. During assembly, it is critical to keep all bolts loose until the entire structure is assembled to ensure proper alignment. Ensure that all indents on the wooden parts face outwards during the assembly process.

Assembly instructions

Before starting, ensure you have all parts listed in the manual (A through L). Clear a clean, dry area for assembly.

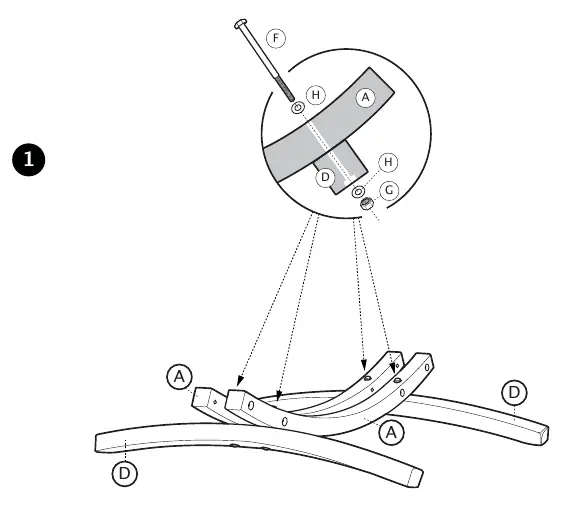

1. Step 1: Connect the base components as shown in the diagram, ensuring the orientation of parts A and D is correct.
2. Step 2: Assemble the main frame structure. Ensure that all indents on the wooden components face outwards. Use bolts E, washers H, and nuts G to secure the connection. Do not fully tighten the bolts yet.

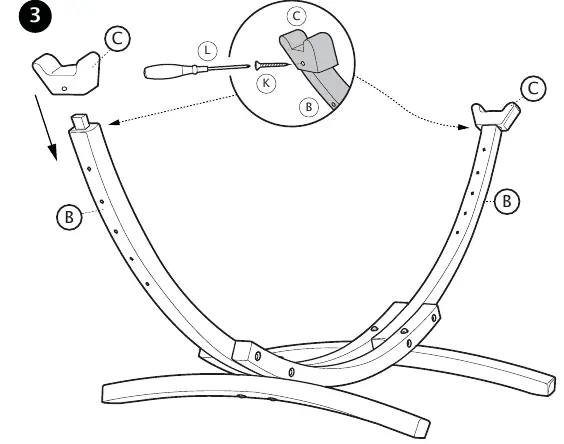

3. Step 3: Attach the top support pieces (C) to the curved beams (B) using the provided screws (K) and screwdriver (L).

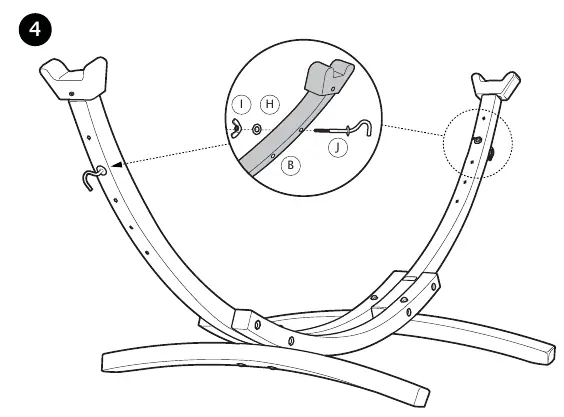

4. Step 4: Finalize the assembly by attaching the hooks (J) to the frame using the wing nuts (I) and washers (H). Once fully assembled, tighten all bolts securely.

Safety warnings

• The product is intended for a maximum weight of 205 kg. Do not exceed this limit.
• Do not stand on the product.
• Use the product only on a firm, level surface. Ensure the frame remains in contact with the surface at all times.
• Keep small parts out of reach of children.
• Do not tighten bolts until the product is fully assembled.
• Do not over-tighten bolts.
• Regularly inspect and tighten all bolts.
• Do not use the product if any parts are missing, damaged, or worn.

Care and maintenance

To maintain the longevity of your hammock stand:

• Clean by wiping with a damp, clean cloth.
• Do not use solvent-based cleaners, as they can bleach or damage the wood.
• Never use a pressure hose or washer to clean the product.
• Avoid using scourers, abrasive, or chemical cleaners.
• We recommend using furniture covers when the product is not in use.
• Apply an exterior varnish containing UV blockers once yearly to reduce fading and extend the life of the stand. Avoid deck stains or penetrating finishes that do not offer sufficient outdoor sun protection.
• Note that some flexing during use is normal for natural materials.

Warranty claims

To file a warranty claim, take photos of the defective product clearly illustrating the impairment. Provide your original proof of purchase. Submit your claim via email to [email protected], including your full address and phone number.
