User Manual for Walmart 17LY86BK True Wireless Earbuds

Quick guide for the Walmart 17LY86BK True Wireless Earbuds. Learn how to pair, charge, control music, manage calls, and troubleshoot common issues.

Quick answers from the manual

Quick answer

To use the earbuds, remove the insulating film, place them in the charging case to activate, and pair via Bluetooth by searching for 'TWS EARBUDS' on your device. p. 1

Key actions

Pairing: Search for 'TWS EARBUDS' in your device's Bluetooth settings. p. 1
Charging: Place earbuds in the case; 4 blue lights flash on the case when charging. p. 1

First start

Remove the insulating film from the earbuds and place them in the charging case to activate. p. 1

Show 4 more answers Show less

Problems and fixes

Earbuds cannot power on

Charge the device for 30 minutes.

p. 1

Cannot charge

Remove insulating film and ensure earbuds are placed well in the case.

p. 1

Maintenance and reset

If pairing fails, delete the pairing list in your smartphone and search for the earbuds again. p. 1

Technical specifications

Parameter	Value	Meaning	Pages
Bluetooth Version	V5.0	Wireless connectivity standard	p. 1
Battery Capacity (Earbuds)	60mAh	Power capacity per earbud	p. 1
Battery Capacity (Case)	1200mAh	Charging case power capacity	p. 1

Where to find it in the PDF

Product Guide p. 1

Table of contents

Quick guide from the manual

This document provides essential instructions for the Walmart 17LY86BK True Wireless Earbuds. Before first use, ensure you remove the insulating film from the earbuds to activate them. The earbuds automatically power on and connect to each other when removed from the charging case.

What's in the box

Earbuds and charging case
Gel cushion tips
30cm Type C charging cable
Manual

Specifications

Bluetooth version: V5.0
Operating range: 10m
Battery capacity (earbuds): 60mAh
Battery capacity (charging box): 1200mAh
Working hour: 10 hours per full charge
Charging time: About 1.5 hours

Powering On and Off

Automatic: The earbuds automatically turn on and connect to each other when taken out of the case. Placing them back in the charging case automatically powers them off.

Manual:

Power on: Press and hold for 2 seconds.
Power off: Press and hold for 4 seconds.

Bluetooth Pairing

The earbuds automatically connect to each other upon removal from the case. One earbud will flash Red/White alternatively, indicating pairing mode. Search for "TWS EARBUDS" on your device's Bluetooth settings to connect. A "connected" voice prompt will play upon successful connection.

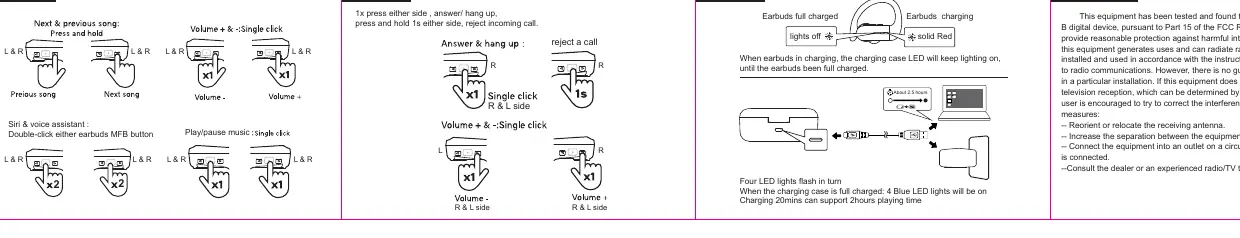

Controls

Music Playback:

Play/Pause: Single click on either earbud.
Next song: Double-click right earbud.
Previous song: Double-click left earbud.
Volume +: Single click right earbud.
Volume -: Single click left earbud.
Siri/Voice Assistant: Double-click either earbud MFB button.

Phone Calls:

Answer/Hang up: Single click either side.
Reject call: Press and hold for 1 second on either side.

Charging

When charging, the case LED will remain lit until the earbuds are fully charged. When the case itself is charging, four LED lights will flash in turn. Once fully charged, all four blue LED lights will remain on. Charging for 20 minutes provides approximately 2 hours of playing time.

Troubleshooting

Earbuds cannot power on: Battery drain; charge for 30 minutes.
Cannot find 'TWS EARBUDS' in Bluetooth: Ensure earbuds are in pairing mode (Red/White flashing), delete old pairing list from phone, and restart both devices.
No sound: Ensure earbuds are connected to the phone and increase volume on both the earbuds and the phone.
Cannot charge: Ensure insulating film is removed, earbuds are placed correctly in the case, and the charging case is not drained.

Practical help

Common problems

Earbuds will not power on

The battery may be drained. Charge the device for 30 minutes before attempting to power on.

Cannot find 'TWS EARBUDS' in Bluetooth list

Ensure earbuds are in pairing mode (Red/White LED flashing). Delete existing pairing list on your phone and search again.

No sound during music or calls

Increase volume on both the earbuds and the connected smartphone. Ensure the earbuds are connected to the correct mode.

Earbuds will not charge

Remove the insulating film from the earbuds. Ensure they are placed correctly in the charging case and the case has power.

Before use

Remove the insulating film from the earbuds.
Place earbuds in the charging case to activate.
Charge the device for approximately 1.5 hours for a full charge.

Show more Show less

Specs in practice

Bluetooth Version: V5.0 for stable wireless connection.
Operating Range: Up to 10 meters from the connected device.
Working Hour: 10 hours of playback time per full charge.
Charging Time: Approximately 1.5 hours to fully charge the earbuds.

Images and diagrams

Charging case LED: 4 blue lights flash in turn when the case is charging.
Earbud LED: Red/White flashing indicates pairing mode; Solid Red indicates charging.

Model compatibility

Compatible with Bluetooth-enabled devices supporting HFP, A2DP, HSP, and AVRCP profiles.
