User Manual for Walmart 14FT Trampoline with Slide

Quick guide from the manual

This trampoline is designed for outdoor use by one person at a time. Before assembly, ensure you have a spacious, clean, and flat area. Assembly requires at least two adults. Always inspect the trampoline before use to ensure all parts are secure and in good condition.

Safety warnings

• Do not attempt somersaults or cartwheels. Landing on the head or neck can cause paralysis or death.
• One user at a time. Multiple users increase the risk of injury.
• Weight limit: Maximum user weight is 280 lbs (130 kg).
• Supervision: Use only under adult supervision.
• Age restriction: Not recommended for children under 6 years of age.
• Environment: Do not use in windy or gusty conditions. Do not use if the mat is wet.
• Clearance: Maintain a clear space around the trampoline and ensure adequate overhead clearance (minimum 24 ft).
• Prohibited items: Remove all sharp objects, jewelry, eyeglasses, and sunglasses before jumping.

Assembly instructions

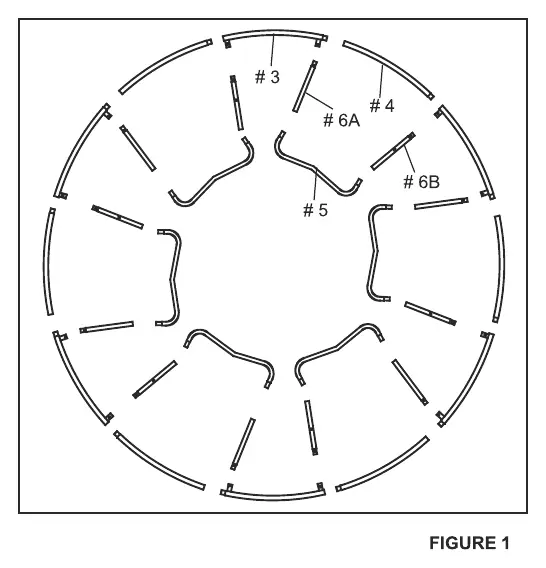

Frame assembly

Assemble the frame by connecting the top rails, base legs, and vertical extension legs. Ensure all parts are aligned correctly. Use the provided screws and tools to secure the support legs to the top rail.

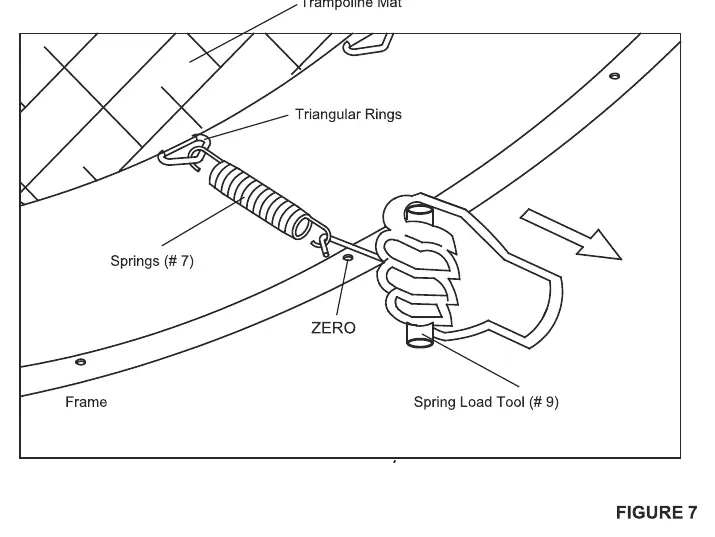

Mat and spring installation

Place the mat inside the frame. Use the included Spring Loading Tool to attach the springs. Start at a "zero point" and install springs in an alternating pattern to ensure even tension distribution across the mat.

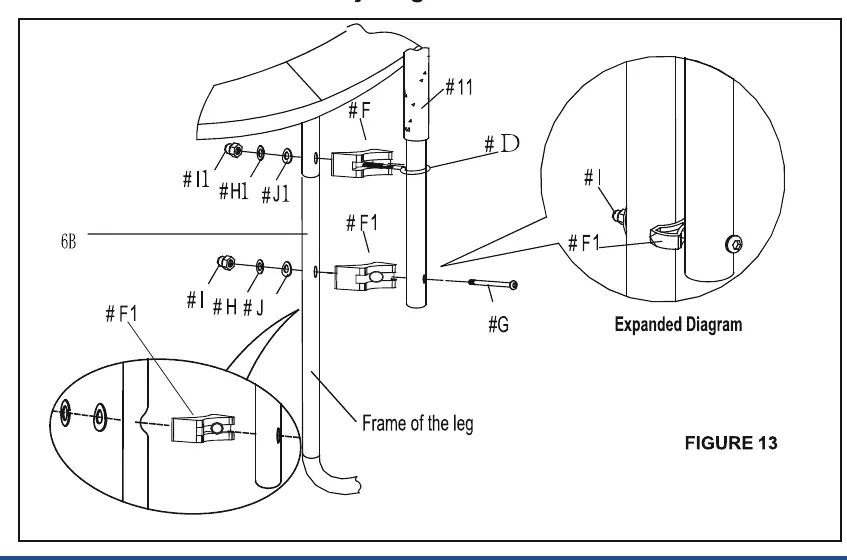

Frame pad and enclosure net

Install the frame pad to cover the springs and metal frame. Secure it with the elastic straps. Assemble the enclosure net by connecting the frame tubes and securing them to the trampoline frame.

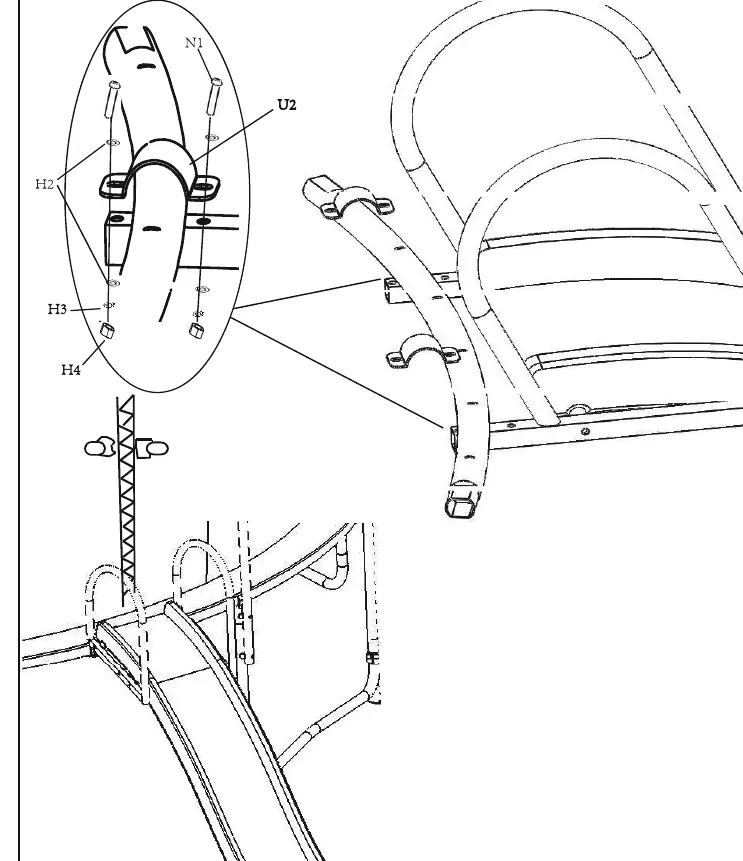

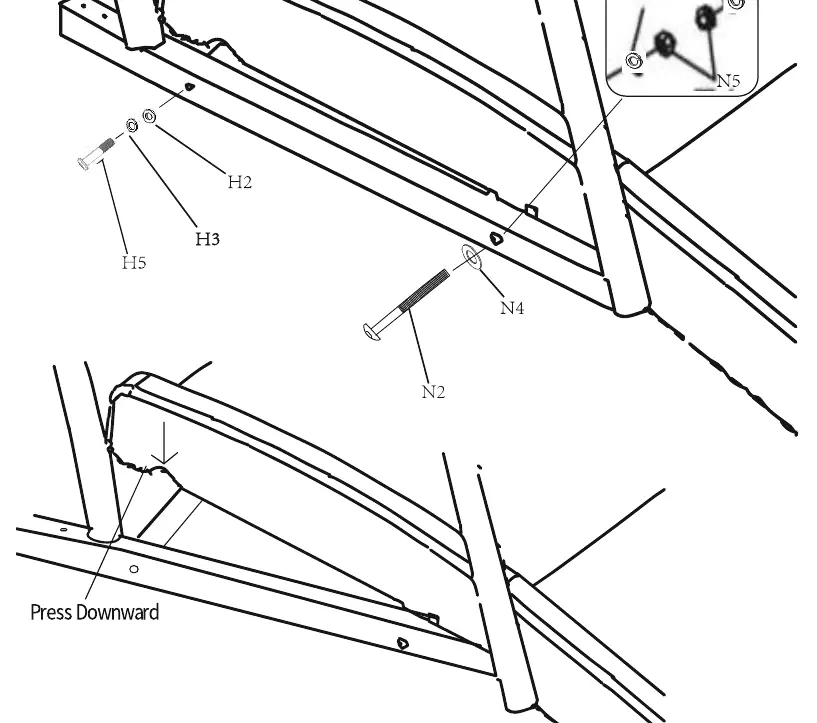

Slide assembly

Assemble the slide by connecting the handrails to the joint lever. Attach the slide to the trampoline frame at the enclosure door position using the provided bolts and fasteners.

Care and maintenance

• Inspect the trampoline before each use.
• Check for missing, improperly positioned, or insecurely attached frame padding, netting, or enclosure tubes.
• Look for punctures, frays, tears, or holes in the bed or frame padding.
• Check for ruptured springs, bent or broken frame parts, or sharp protrusions.
• If the trampoline is to be moved, it should be moved by two persons, kept horizontal, and lifted slightly.
• In high wind conditions, disassemble the netting and secure the frame to the ground using ropes and stakes.
