Installation Guide for Class 3 Trailer Hitch 2-Inch Receiver
Comprehensive installation guide for the Class 3 Trailer Hitch 2-Inch Receiver. Includes safety warnings, required tools, package contents, and step-by-step mounting instructions for compatible Honda Pilot and Acura MDX vehicles.
Quick answers from the manual
Quick answer
- This is an installation guide for a Class 3 Trailer Hitch 2-Inch Receiver compatible with 2016-2022 Honda Pilot and 2014-2020 Acura MDX vehicles. p. 1
Key actions
- Assemble the side brackets to the main hitch body. p. 3
- Lift the hitch to the vehicle and secure with hex bolts and spring washers. p. 3
- Tighten all bolts using a torque wrench. p. 4
Maintenance and reset
- Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Gross Trailer Weight | 6,000 lbs | Maximum weight of the trailer. | p. 1 |
| Tongue Weight | 900 lbs | Maximum downward force on the hitch. | p. 1 |
| Weight Distribution Capacity | 8,000 lbs | Max capacity with weight distribution. | p. 1 |
Where to find it in the PDF
- Safety and Specifications p. 1
- Tools and Accessories p. 2
- Installation Steps p. 3, 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides instructions for installing a Class 3 Trailer Hitch 2-Inch Receiver on 2016-2022 Honda Pilot and 2014-2020 Acura MDX vehicles. Always wear safety glasses during installation. Periodically check the receiver hitch to ensure all fasteners are tight and structural components are sound. Never exceed the vehicle manufacturer's recommended towing capacity.
Tools required
- 22 mm Sockets
- Torque Wrench
- Wrench
- 5" Extension
- Safety Glasses
- Power Drill
Package contents
- Hex Bolts (M12) - 6 qty
- Spring Washer (M12) - 6 qty
- Hex Flange Nuts (M12) - 4 qty
- Hex Flange Bolts (M12) - 6 qty
Installation instructions
Product assembly process
- Install the two side brackets onto the main hitch assembly.
- Ensure the installation is completed as shown in the diagrams.
Installed on the car
- Lift the trailer hitch into position (using a tool or a partner for assistance).
- Take out the hex bolts and spring washers.
- Slightly tighten the hex bolts to hold the hitch in place.
- Use a power tool to tighten the hex bolts.
- Finalize by tightening all bolts with a torque wrench.
Technical specifications
This trailer hitch is rated for the following capacities:
- Gross Trailer Weight: 6,000 lbs.
- Tongue Weight: 900 lbs.
- Weight Distribution Capacity: 8,000 lbs.
- Weight Distribution Tongue: 900 lbs.
Practical help
Common problems
Difficulty lifting the hitch into position
The manual recommends having 2 people available to assist with the installation.
Fasteners becoming loose over time
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
Before use
- Wear safety glasses at all times during installation.
- Verify vehicle compatibility (2016-2022 Honda Pilot or 2014-2020 Acura MDX).
- Gather required tools: 22mm sockets, torque wrench, wrench, 5" extension, and power drill.
- Ensure a second person is available to assist with lifting the hitch.
- Read all instructions thoroughly before beginning.
Specs in practice
- Gross Trailer Weight
- Maximum weight of the trailer being towed (6,000 lbs).
- Tongue Weight
- Maximum downward force exerted on the hitch ball (900 lbs).
- Weight Distribution Capacity
- Maximum trailer weight when using a weight distribution system (8,000 lbs).
Images and diagrams

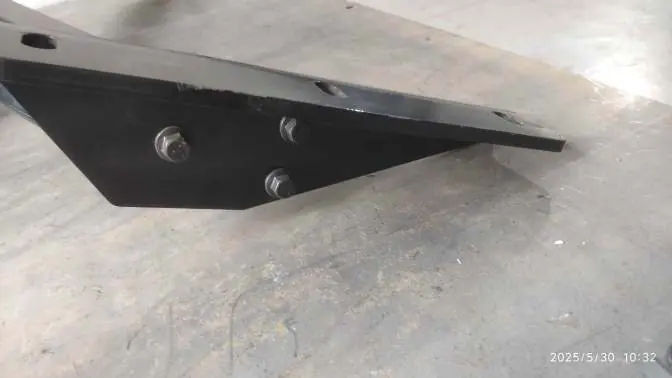

- Figure 1-3: Shows the assembly of the side brackets to the main hitch body.
- Figure 4-5: Illustrates lifting the hitch to the vehicle frame and inserting the initial bolts.
- Figure 6-7: Demonstrates using power tools and a torque wrench to secure the hitch.

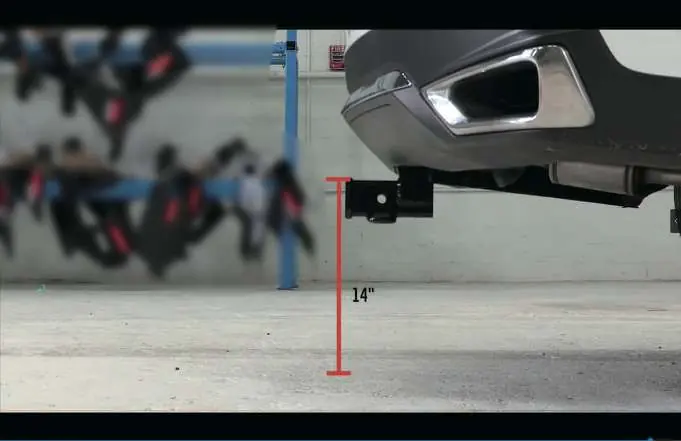

- Figure 8: Shows the ground-to-top clearance measurement of 14 inches.
Model compatibility
- Compatible with 2016-2022 Honda Pilot (All models).
- Compatible with 2014-2020 Acura MDX (All models).
