User Manual for Xiaomi Multifunctional Rice Cooker 1.5L
Quick guide and user manual for the Xiaomi Multifunctional Rice Cooker 1.5L (Model MFB05M0-1). Includes setup, cooking modes, cleaning instructions, error codes, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick Guide
Before using the Xiaomi Multifunctional Rice Cooker for the first time, it is recommended to boil water in the rice mode 2-3 times to remove any manufacturing odors. Ensure the device is placed on a stable, level surface, at least 30 cm away from walls or heat sources. Always ensure the inner lid is properly installed before cooking.
Product Overview

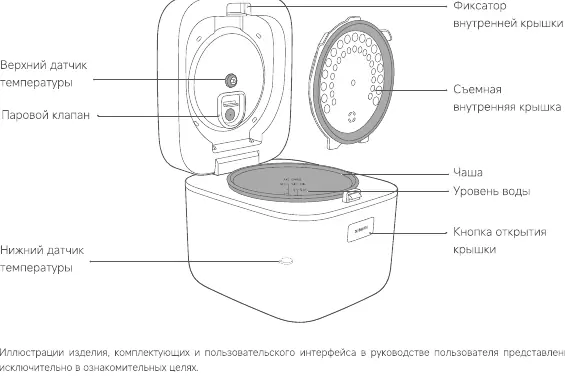

The rice cooker consists of the main unit, a removable inner lid, a steam valve, and a cooking pot. The control panel allows you to select cooking modes and set timers.
Control Panel
The control panel includes the following buttons and indicators:
- Cancel: Cancels the current operation or timer setting.
- Timer: Sets the delay timer for cooking.
- Start: Begins the selected cooking program.
- Select: Cycles through available cooking modes (Rice, Quick Rice, Congee, Stew, Keep Warm).
If no action is taken within 5 minutes of plugging in the device, the display will show "----" and eventually turn off. Press any button to wake the device.
How to Use
- Open the lid: Press the lid release button.
- Add ingredients: Add rice and water according to the markings inside the pot. Do not exceed the maximum water level.
- Select mode: Plug in the device and use the Select button to choose the desired cooking mode.
- Start cooking: Press the Start button.
- Timer function: To delay cooking, select a mode, press the Timer button, and set the desired completion time.
Cooking Modes
- Rice: Default mode, takes approximately 1 hour.
- Quick Rice: Faster cooking mode, takes approximately 30 minutes.
- Congee: Porridge mode, takes approximately 1 hour 30 minutes.
- Stew: Slow cooking mode, takes approximately 1 hour.
- Keep Warm: Automatically activates after cooking finishes, maintaining a temperature of approximately 73°C for up to 12 hours.
Cleaning and Maintenance
Always unplug the device and let it cool down before cleaning. Do not immerse the main unit in water.

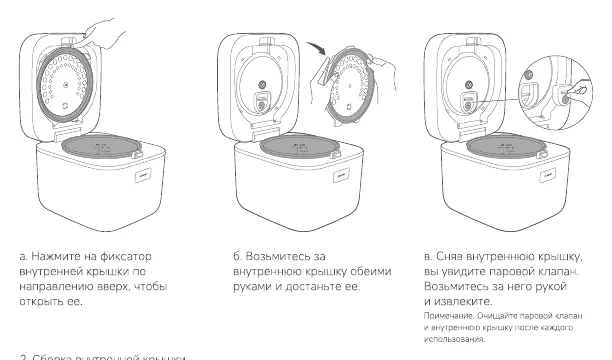

- Inner Lid: Press the release latch to remove the inner lid. Wash it after every use.
- Steam Valve: Remove and clean the steam valve regularly to prevent blockages.
- Cooking Pot: Use a soft cloth to clean the pot. Do not use metal scouring pads or abrasive cleaners.
Troubleshooting
If you encounter issues, check the following:
- Lid won't close: Ensure the inner lid is installed correctly.
- Rice half-cooked: Check the water-to-rice ratio.
- Rice smells bad: Clean the steam valve and inner lid; do not keep warm for longer than 12 hours.
- Rice burnt at bottom: Wash rice thoroughly before cooking and check for foreign objects.
Error Codes:
- E-09: Upper sensor damaged. Contact service.
- E-10: Lower sensor damaged. Contact service.
Technical Specifications
- Model: MFB05M0-1
- Rated Voltage: 220-240 V~
- Rated Frequency: 50-60 Hz
- Rated Power: 320-380 W
- Rated Capacity (Rice): 0.48 L
- Rated Capacity (Water): 1.5 L
- Dimensions: 196 x 221 x 181 mm
Manufacturer information
Xiaomi Corporation
Practical help
Common problems
Lid does not close
Check if the inner lid is installed correctly.
Rice is half-cooked
Verify the water-to-rice ratio and follow the instructions.
Unpleasant smell during cooking
Clean the steam valve and inner lid. Run the 'Steam' mode with water 2-3 times.
Rice burnt at the bottom
Wash the rice thoroughly and ensure there are no foreign objects under the pot.
Before use
- Ensure the inner lid is properly installed.
- Check that the steam valve is clean and not blocked.
- Use the provided power cord.
- Boil water in the rice mode 2-3 times before first use to remove odors.
Specs in practice
- Rated Capacity (Rice)
- 0.48 L; maximum amount of raw rice that can be cooked.
- Rated Capacity (Water)
- 1.5 L; maximum water volume capacity.
Images and diagrams

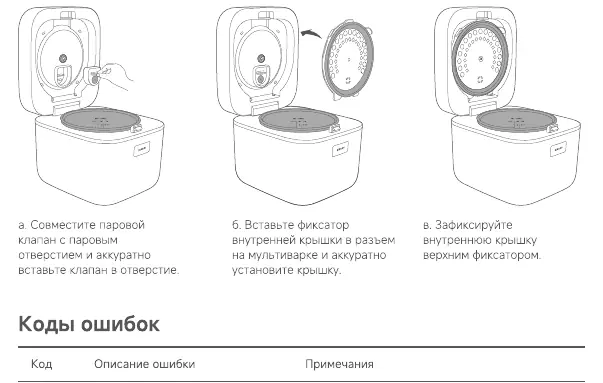

- The inner lid is removable for cleaning by pressing the release latch.
- The steam valve is located on the top lid and must be kept clean.
- The control panel features buttons for Rice, Quick Rice, Congee, Stew, Keep Warm, and Timer.
Model compatibility
- For indoor use only.
- Operating altitude: 0-2000 meters.
- Do not use with power supplies other than 220-240 V~.
