This document provides technical specifications and performance characteristics for the ECO-WORTHY 195W 18V monocrystalline solar panel. It is intended for users requiring data for system design and installation. For technical issues not covered in this manual, please contact ECO-WORTHY support via email at [email protected] or visit www.eco-worthy.com.
Product Overview
The 195W 18V solar panel features high-efficiency monocrystalline PERC cells, an IP65-rated waterproof design, and a durable aluminum frame. It is built for a lifespan of over 25 years and includes a built-in bypass diode to prevent reverse current. The tempered glass construction provides enhanced load-bearing capacity.
Technical Specifications
- Module Type: ECOM195W
- Maximum Power (Pmax): 195W ±3%
- Maximum Power Voltage (Vmp): 20.2V ±3%
- Maximum Power Current (Imp): 9.65A ±3%
- Open Circuit Voltage (Voc): 24.5V ±3%
- Short Circuit Current (Isc): 10.14A ±3%
- Module Efficiency: 22.83%
- Maximum System Voltage: 1000Vdc
- Maximum Series Fuse Rating: 15A
- Operating Temperature: -40°C to +85°C
- Dimensions: 1335 x 670 x 35 mm
- Weight: 9.29 kg
Electrical Characteristics
The panel is equipped with MC4 connectors and a 4mm² output cable (900mm length). It features 33 cells (3x12 configuration) and a junction box rated at IP67. The temperature coefficients are -0.35%/°C for Pmax, -0.23%/°C for Voc, and +0.05%/°C for Isc. All technical data is provided under Standard Test Conditions (STC): AM=1.5, Irradiance=1000W/m², and Cell Temperature=25°C.
Official resources from the manual
Practical help
Common problems
Technical issues or performance questions
Contact ECO-WORTHY support at [email protected] or call the regional support numbers provided in the manual.
Before use
- Verify the system voltage requirements match the 18V panel output.
- Ensure the installation site allows for proper ventilation and sunlight exposure.
- Check that the maximum system voltage of your setup does not exceed 1000Vdc.
- Confirm that the series fuse rating of your system is compatible with the 15A limit.
Images and diagrams

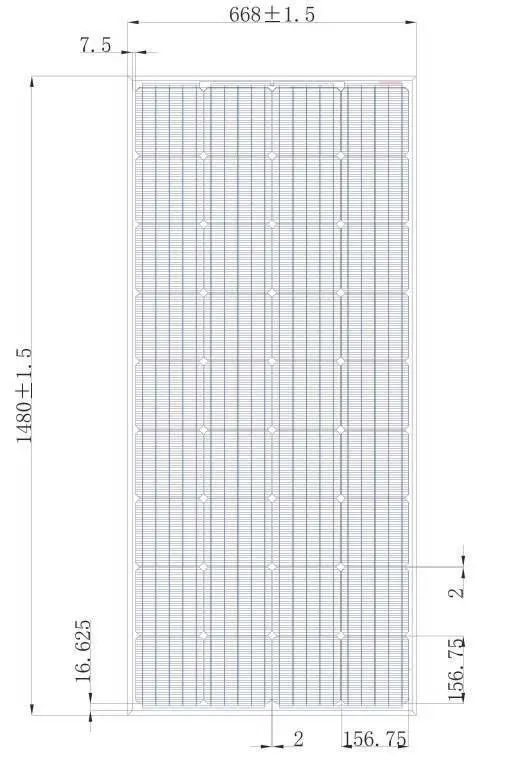

- The module diagram provides precise physical dimensions (1335x670mm) and mounting hole locations for structural planning.
- I-V and P-V curves illustrate how the panel's current and power output change based on voltage, temperature, and solar irradiance levels.
Model compatibility
- Uses standard MC4 connectors for easy integration into existing solar arrays.
- Designed for systems with a maximum series fuse rating of 15A.
